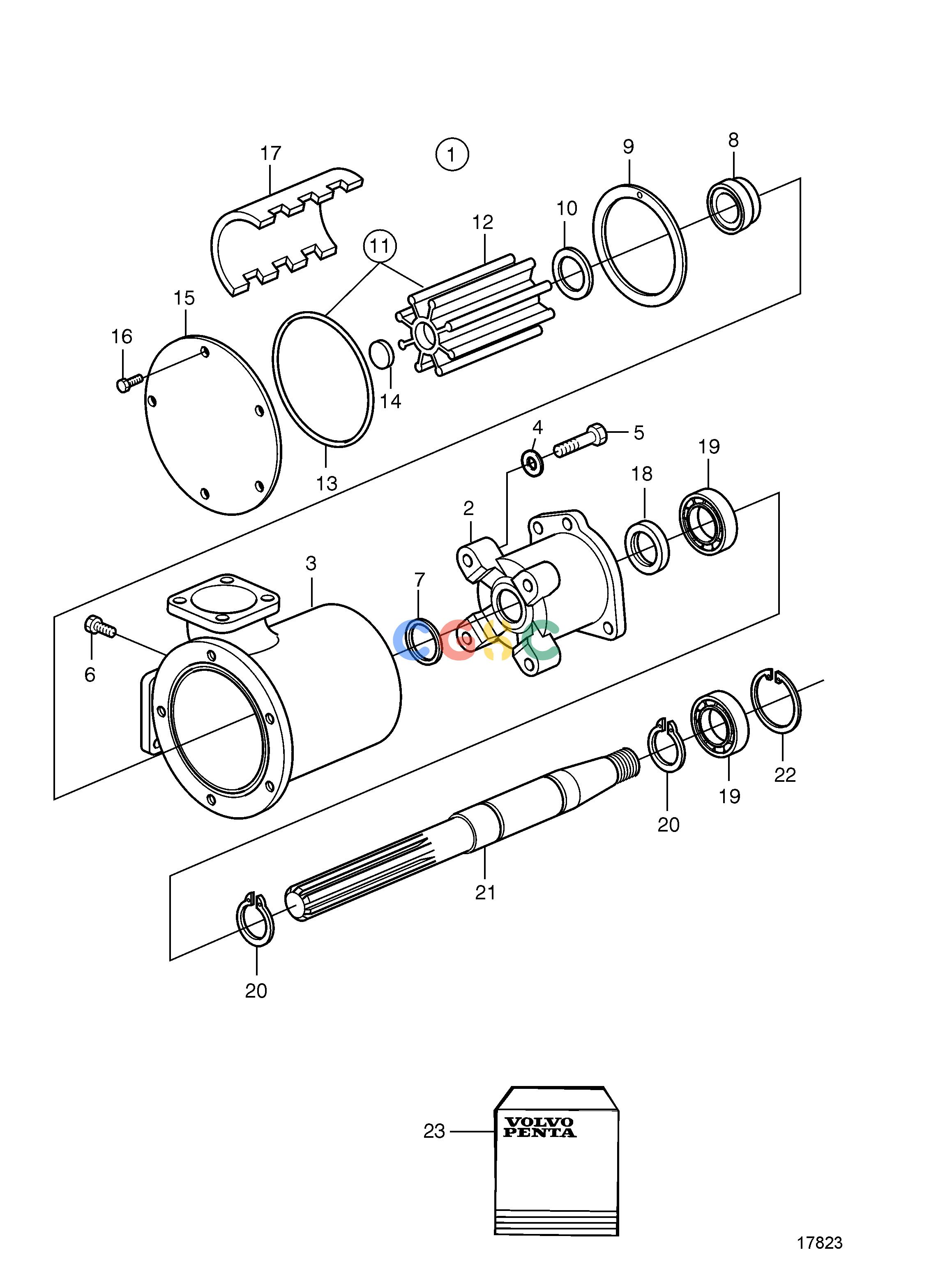

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838207
|
[1] |
Sea water pump
|
(865295)
|
| 2. |
|
|
|
|
| 3. |
3830752
|
[1] |
Pump housing
|
|
| 4. |
941909
|
[4] |
Spring washer
|
|
| 5. |
940159
|
[4] |
Hexagon screw
|
|
| 6. |
3830665
|
[1] |
Hexagon screw
|
|
| 7. |
812964
|
[1] |
Deflector ring
|
Included in spare parts kit no 3830993.
|
| 8. |
3829315
|
[1] |
Sealing ring
|
Included in spare parts kit no 3830993.
|
| 9. |
826230
|
[1] |
Wear washer
|
Included in spare parts kit no 3830993.
|
| 10. |
3829449
|
[1] |
Washer
|
|
| 11. |
3830459
|
[1] |
Impeller kit
|
|
| 12. |
|
|
|
Use impeller kit 3830459
|
| 13. |
3830664
|
[1] |
O-ring
|
|
| 14. |
812966
|
[1] |
Splined gasket
|
|
| 15. |
3830662
|
[1] |
Cap
|
|
| 16. |
963554
|
[5] |
Hexagon screw
|
Included in spare parts kit no 3830993.
|
| 17. |
3830661
|
[1] |
Cam
|
|
| 18. |
845795
|
[1] |
Sealing ring
|
Included in spare parts kit no 3830993.
|
| 19. |
11013
|
[2] |
Ball bearing
|
Included in spare parts kit no 3830993.
|
| 20. |
847230
|
[2] |
Lock ring
|
Included in spare parts kit no 3830993.
|
| 21. |
3838208
|
[1] |
Shaft
|
|
| 22. |
825735
|
[1] |
Lock ring
|
Included in spare parts kit no 3830993.
|
| 23. |
3830993
|
[1] |
Repair kit
|
|
