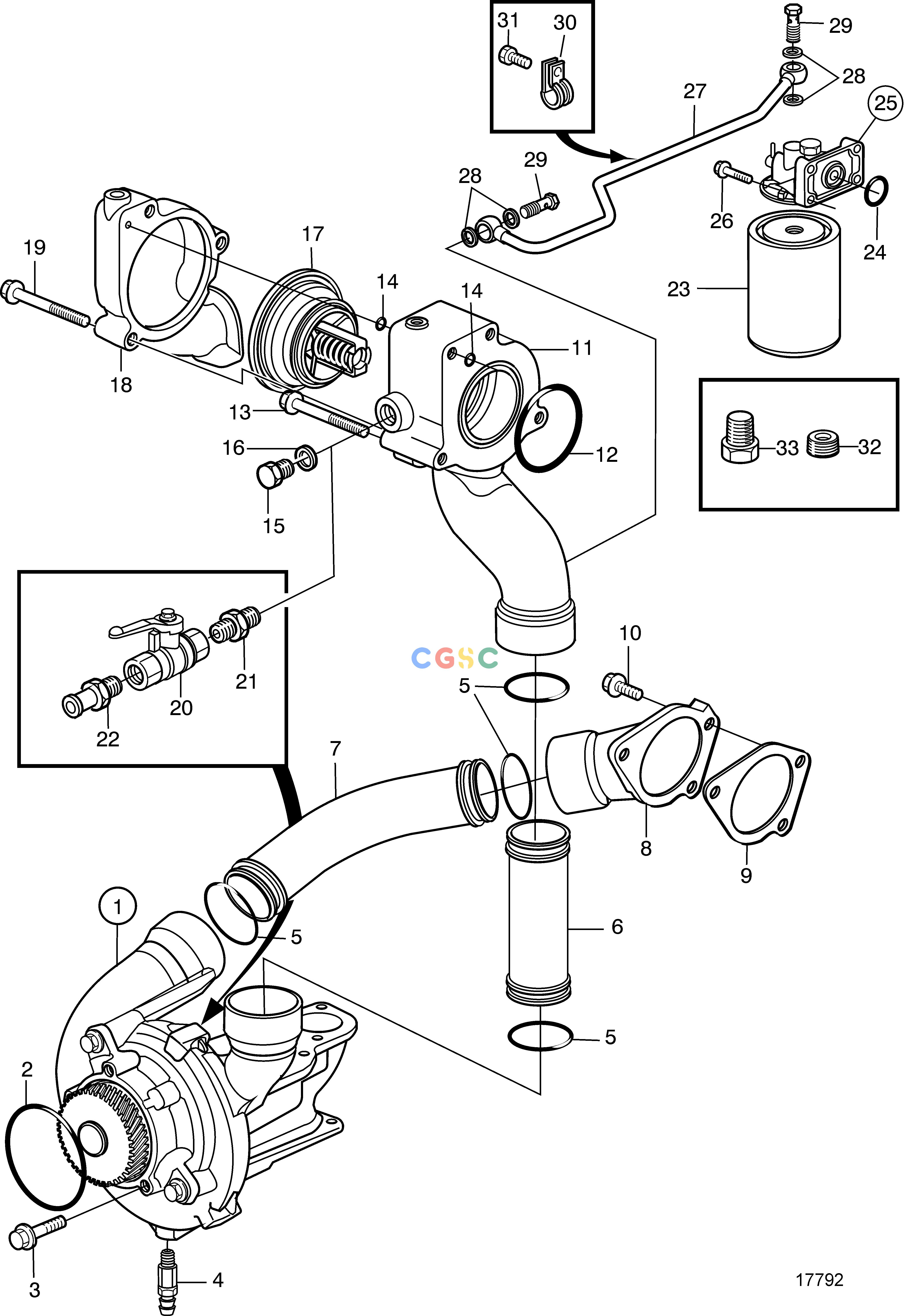

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemWater Pump, Thermostat Housing and Water Filter, HE/KCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
948980
|
[1] |
O-ring
|
|
| 3. |
947790
|
[4] |
Flange screw
|
|
| 4. |
|
|
|
|
| 5. |
1547254
|
[4] |
Sealing ring
|
|
| 6. |
3826694
|
[1] |
Coolant pipe
|
|
| 7. |
3826609
|
[1] |
Coolant pipe
|
|
| 8. |
3826968
|
[1] |
Pipe connection
|
|
| 9. |
8170515
|
[1] |
Gasket
|
|
| 10. |
945444
|
[3] |
Flange screw
|
|
| 11. |
3826604
|
[1] |
Thermostat housing
|
Replaced by thermostat housing 3809577, valve 3809467, cover 3809621, o-ring 975622.
|
| 11. |
|
|
|
|
| 12. |
976044
|
[1] |
O-ring
|
|
| 13. |
965182
|
[3] |
Flange screw
|
|
| 14. |
968725
|
[2] |
O-ring
|
|
| 15. |
914392
|
[1] |
Plug
|
|
| 16. |
943908
|
[1] |
Gasket
|
|
| 17. |
20560253
|
[1] |
Thermostat
|
76°C
|
| 18. |
3809621
|
[1] |
Cap
|
(3826605)
|
| 19. |
973924
|
[3] |
Flange screw
|
|
| 20. |
1140097
|
[2] |
Ball valve
|
|
| 21. |
16452
|
[2] |
Double nipple
|
|
| 22. |
961657
|
[2] |
Hose nipple
|
|
| 23. |
20532237
|
[1] |
Coolant filter
|
(1699830)
|
| 24. |
469846
|
[1] |
Sealing ring
|
|
| 25. |
1661685
|
[1] |
Bracket
|
Repl by 20459650
|
| 25. |
20459650
|
[1] |
Bracket
|
|
| 25. |
|
|
|
|
| 26. |
946671
|
[4] |
Flange screw
|
|
| 27. |
3827547
|
[1] |
Coolant pipe
|
|
| 28. |
976929
|
[4] |
Gasket
|
|
| 29. |
25167
|
[2] |
Hollow screw
|
|
| 30. |
942542
|
[1] |
Clamp
|
|
| 31. |
946440
|
[1] |
Flange screw
|
|
| 32. |
968062
|
[1] |
Plug
|
Alternative to Water Filter
|
| 33. |
479979
|
[1] |
Plug
|
Alternative to Water Filter
|
