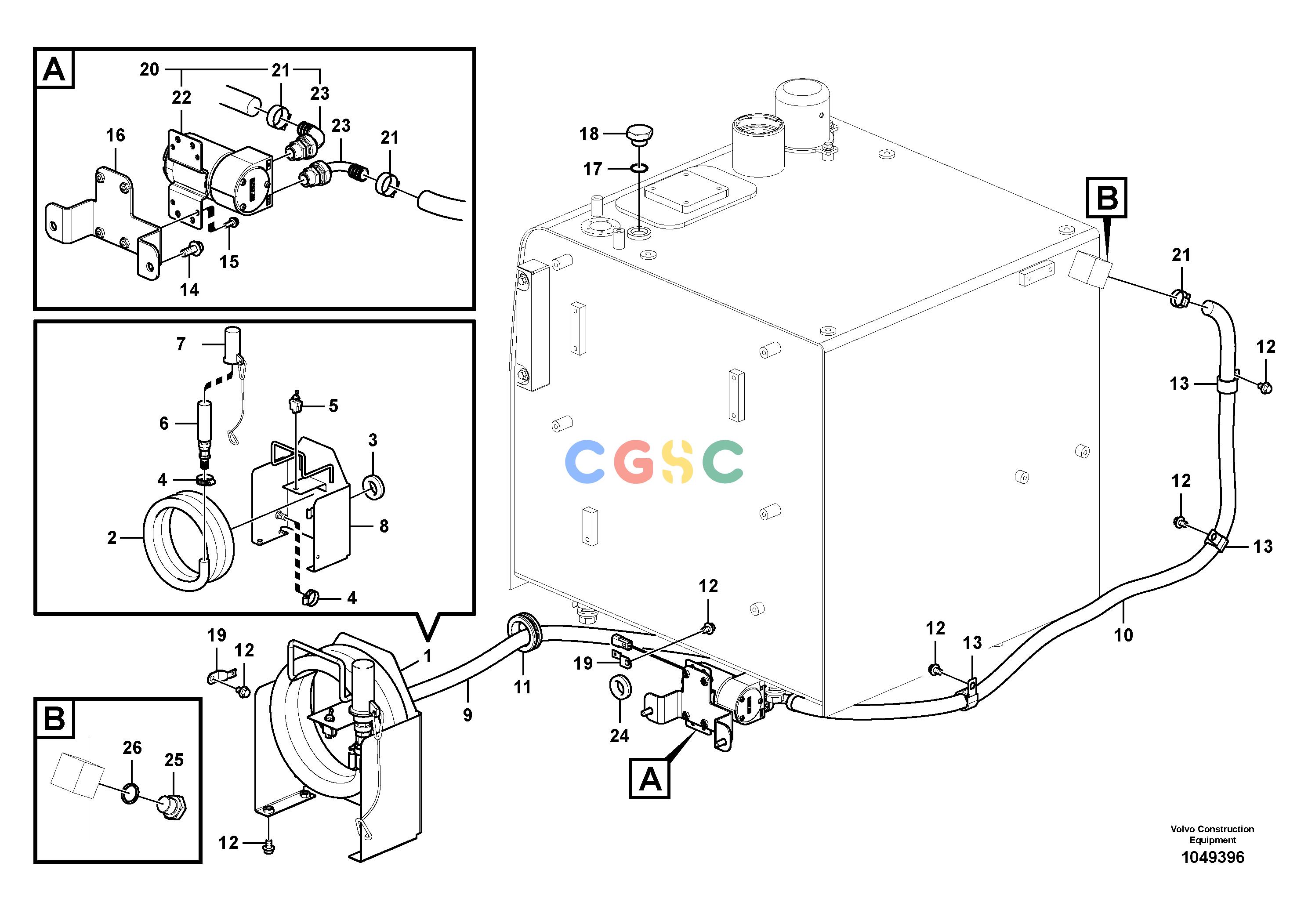

沃尔沃零件查询EC240B Fuel filling pump with assembling detailsPRIME S/N 15001-16436/ 40001-40237/ 35001-375268286034-8287352NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14641029
|
[1] |
Hose
|
|
| 2. |
VOE14517749
|
[1] |
Hose
|
S/N -15686/-35981
|
| |
VOE14543309
|
[1] |
Hose
|
S/N 15687-/35982-
|
| 3. |
VOE14529352
|
[1] |
Grommet
|
S/N -15686/-35981
|
| 4. |
VOE14517754
|
[2] |
Clip
|
|
| 5. |
VOE14539456
|
[1] |
Toggle switch
|
|
| 6. |
VOE14517753
|
[1] |
Valve
|
|
| 7. |
VOE14539459
|
[1] |
Cover
|
|
| 8. |
VOE14539457
|
[1] |
Bracket
|
S/N -15686/-35981
|
| |
VOE14623470
|
[1] |
Bracket
|
S/N 15687-15856
S/N 35982-36393
|
| |
VOE14631561
|
[1] |
Bracket
|
S/N 15857-16051
S/N 36394-36605
|
| |
VOE14641028
|
[1] |
Bracket
|
S/N 16052-/36606-
|
| 9. |
VOE14557007
|
[1] |
Hose
|
|
| 10. |
VOE14558788
|
[1] |
Hose
|
|
| 11. |
SA9751-15016
|
[1] |
Grommet
|
|
| 12. |
VOE946471
|
[9] |
Flange screw
|
|
| 13. |
VOE14500297
|
[3] |
Clip
|
|
| 14. |
VOE946329
|
[2] |
Flange screw
|
|
| 15. |
VOE946544
|
[4] |
Flange screw
|
|
| 16. |
VOE14577243
|
[1] |
Bracket
|
|
| 17. |
VOE990581
|
[1] |
O-ring
|
|
| 18. |
VOE14529323
|
[1] |
Plug
|
|
| 19. |
VOE14522575
|
[2] |
Clip
|
|
| 20. |
VOE14539462
|
[1] |
Refuelling pump
|
|
| 21. |
VOE14517754
|
[3] |
Clip
|
|
| 22. |
VOE14591830
|
[1] |
Refuelling pump
|
|
| 23. |
VOE14517748
|
[2] |
Adapter
|
|
| 24. |
VOE14529351
|
[1] |
Grommet
|
|
| 25. |
VOE914394
|
|
Plug
|
|
| 26. |
VOE13947629
|
|
Plane gasket
|
|
