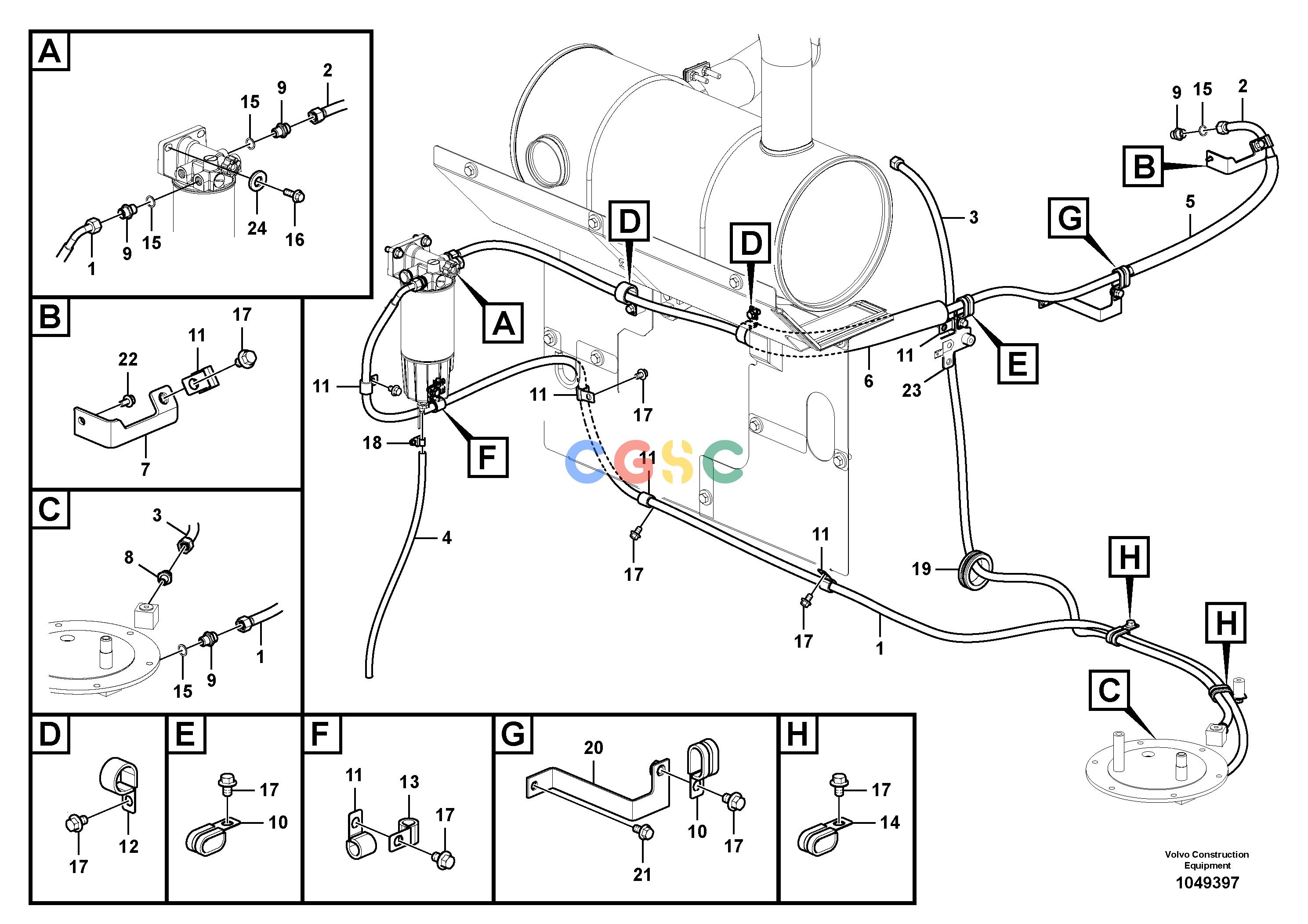

沃尔沃零件查询EC240B Fuel pipe - Fuel tankPRIME S/N 15001-16436/ 40001-40237/ 35001-375268287964-NoneNoneNoneS/N , -15707 / -36026Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14566255
|
[1] |
Hose
|
|
| 2. |
VOE14550601
|
[1] |
Fuel hose
|
|
| 3. |
VOE14550602
|
[1] |
Fuel hose
|
|
| 4. |
SA9952-08011
|
[1] |
Hose
|
|
| 5. |
SA9443-30309
|
[1] |
Hose protection
|
|
| 6. |
SA9443-30610
|
[1] |
Hose protection
|
|
| 7. |
VOE14592660
|
[1] |
Bracket
|
|
| 8. |
VOE14548445
|
[1] |
Nipple
|
|
| 9. |
VOE14213266
|
[4] |
Fitting
|
|
| 10. |
VOE14512894
|
[2] |
Clamp
|
|
| 11. |
VOE14547764
|
[7] |
Clip
|
|
| 12. |
VOE14515523
|
[2] |
Clip
|
|
| 13. |
VOE14500293
|
[1] |
Clip
|
S/N -15308
|
| 14. |
VOE14532534
|
[2] |
Clip
|
|
| 15. |
VOE13947622
|
[4] |
Plane gasket
|
|
| 16. |
VOE983252
|
[2] |
Hexagon screw
|
|
| 17. |
VOE946471
|
[13] |
Flange screw
|
|
| 18. |
VOE943470
|
[1] |
Hose clamp
|
|
| 19. |
VOE14882166
|
[1] |
Grommet
|
|
| 20. |
VOE14591008
|
[1] |
Bracket
|
|
| 21. |
VOE946440
|
[2] |
Flange screw
|
|
| 22. |
VOE965175
|
[1] |
Flange screw
|
|
| 23. |
VOE14525609
|
[1] |
Bracket
|
|
| 24. |
VOE992040
|
[2] |
Plain washer
|
|
