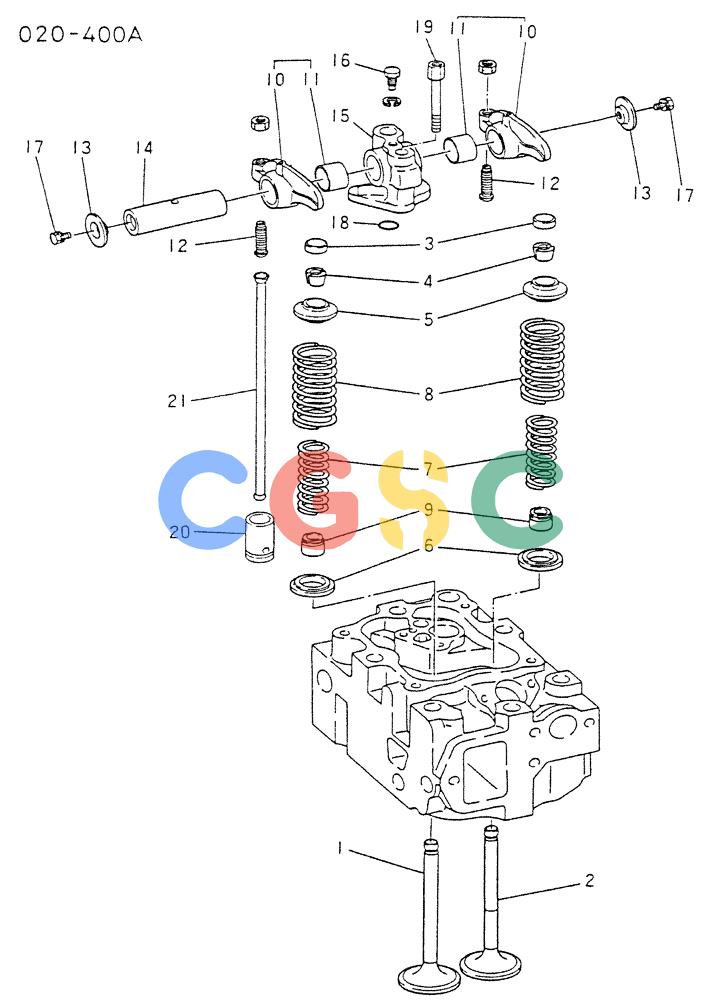

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (01-013) - VALVE GEAR, TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D22T ALL | [1] | VALVE GEAR TRAIN(M0) | |
| . . | 6D22Z ALL | [1] | VALVE GEAR TRAIN(M0) | |
| 1. | VAME051063 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE Superseded by part number: 132517A1 |
| 2. | VAME051064 | [6] | STD EXHAUST VALVE | KOBSTD ENGINE EXHAUST VALVE Superseded by part number: VAME051697 |
| 3. | VA3000424302 | [12] | CAP | KOBVALVE Superseded by part number: 132504A1 |
| . . | VA3120434200 | [24] | COTTER PIN | KOBCOTTER, VALVE Superseded by part number: 132527A1 |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONAVAILABLE IN SET WITH PAIR |
| 5. | VAME051410 | [12] | RETAINER | KOBUPPER Superseded by part number: 87435751 |
| 6. | VAME051083 | [12] | RETAINER | KOBLOWER Superseded by part number: 132518A1 |
| 7. | VAME061398 | [12] | SPRING | KOBVALVE INNER Superseded by part number: 132520A1 |
| 8. | VAME051208 | [12] | SPRING | KOBVALVE OUTER Superseded by part number: 132522A1 |
| 9. | VAME061574 | [12] | SEAL | KOBVALVE STEM Superseded by part number: 87420706 |
| 10-11. | VAME051051 | [12] | ROCKER ARM | KOB Superseded by part number: 132514A1 |
| 10. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 11. | VA3090402200 | [12] | BUSHING | KOBROCKER Superseded by part number: 132505A1 |
| 12. | VAME041001 | [12] | SCREW | KOBADJUSTING Superseded by part number: 132503A1 |
| . . | VAMF430122 | [12] | NUT | KOB10 Superseded by part number: VAF230510000 |
| 13. | VA3090401600 | [12] | THRUST PLATE | KOB Superseded by part number: 132512A1 |
| 14. | VA3090400801 | [6] | SHAFT | KOB |
| 15. | VA3090410702 | [6] | ROCKER ARM | KOBROCKER SHAFT Superseded by part number: 132511A1 |
| 16. | VA3090400900 | [6] | SCREW | KOBSET |
| . . | VAMF450405 | [6] | WASHER | KOBSPG 8 Superseded by part number: 132502A1 |
| 17. | VAMF241222 | [12] | SCREW | KOBW/WSR 6X10 Superseded by part number: 132506A1 |
| 18. | VAMH035135 | [6] | O-RING | KOB Superseded by part number: 132508A1 |
| 19. | VAMH000888 | [6] | SCREW | KOB |
| 20. | VAME061021 | [12] | TAPPET | KOB Superseded by part number: 132498A1 |
| 21. | VAME051180 | [12] | PUSH ROD | KOB Superseded by part number: 132513A1 |
