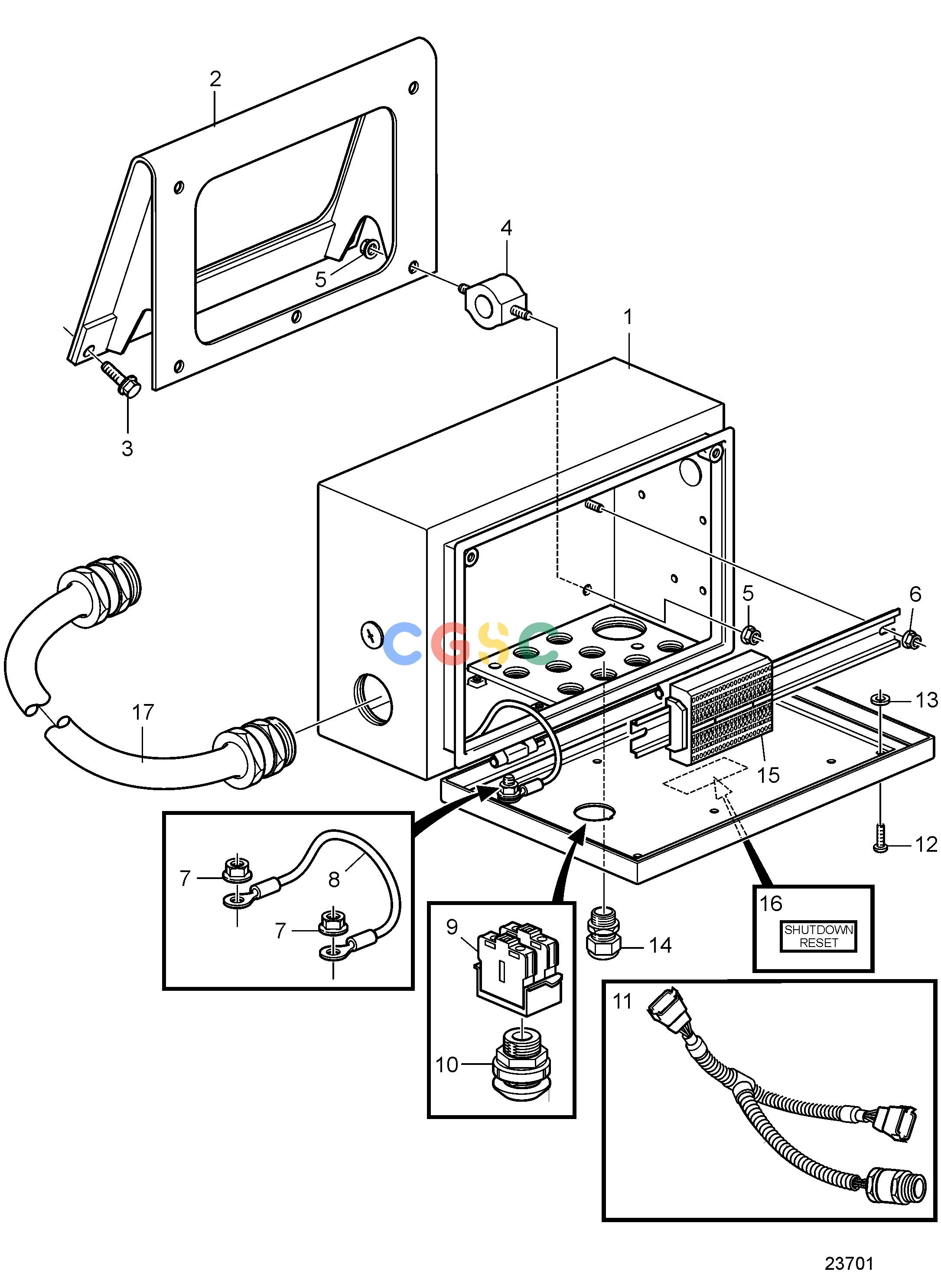

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemConnection Box, Classifiable, MCC, Later ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841323
|
[1] |
Electrical distribut
|
|
| 2. |
3832497
|
[1] |
Bracket
|
|
| 3. |
946441
|
[2] |
Flange screw
|
|
| 4. |
3839156
|
[4] |
Rubber cushion
|
|
| 5. |
945407
|
[8] |
Flange nut
|
|
| 6. |
965483
|
[2] |
Flange nut
|
|
| 7. |
945408
|
[2] |
Flange nut
|
|
| 8. |
|
|
|
|
| 9. |
3817575
|
[1] |
Contact unit
|
|
| 10. |
3817578
|
[1] |
Push button
|
|
| 11. |
881630
|
[1] |
Cable kit
|
|
| 12. |
|
|
|
M6x22
|
| 13. |
|
|
|
Washer with rubber gasket.
|
| 14. |
3883134
|
[1] |
Cable fitting
|
|
| 14. |
3847827
|
[1] |
Cable fitting
|
|
| 15. |
3818926
|
[1] |
Electronic unit
|
|
| 16. |
3586456
|
[1] |
Label
|
|
| 17. |
3818484
|
[1] |
Wiring harness
|
|
