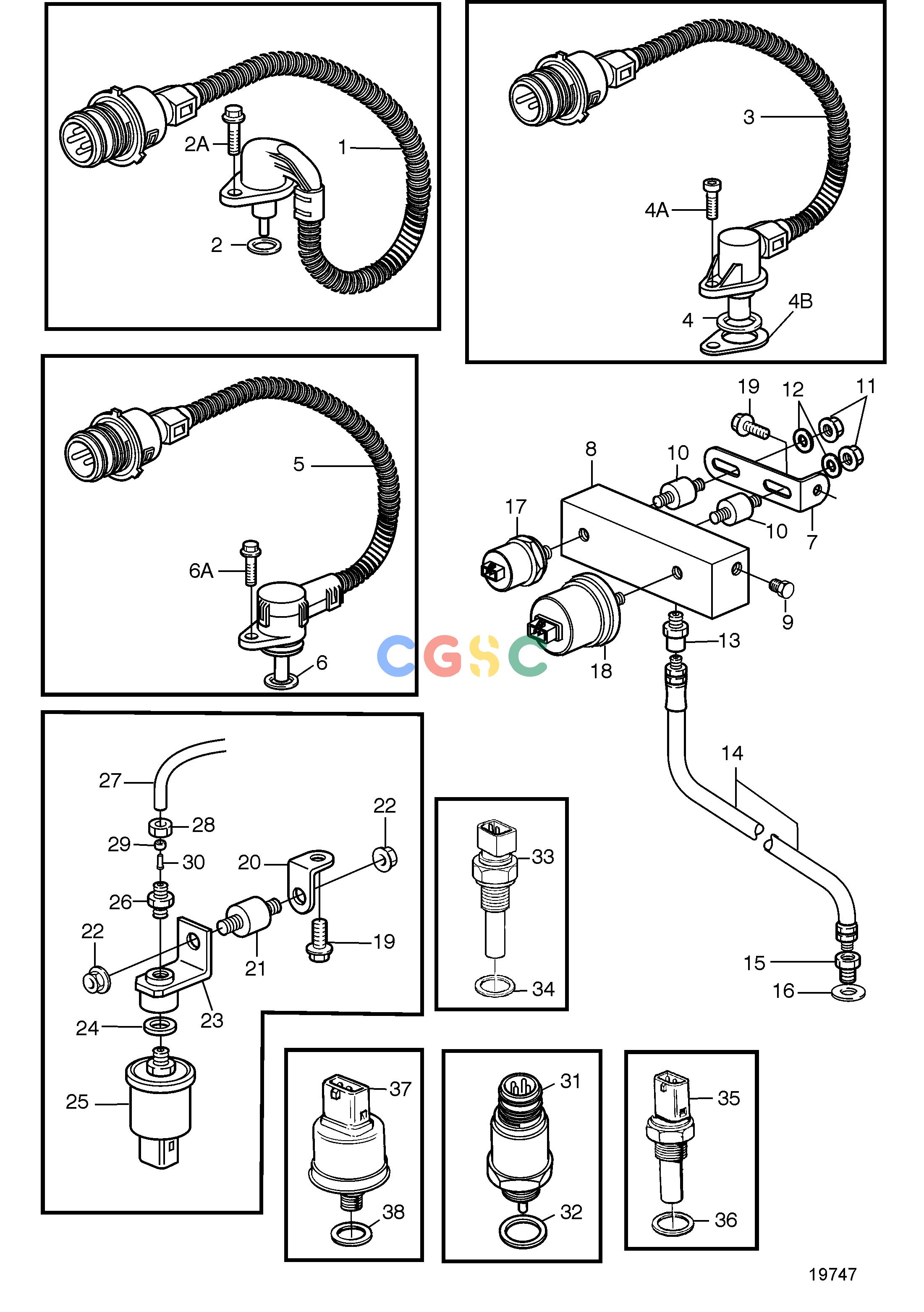

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemContacts and Sensors. EDCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
708 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20909613
|
[1] |
Sensor
|
Charge air temp and pressure., For electronic control unit., (3172524)
|
| 2. |
975632
|
[1] |
O-ring
|
|
| 2A. |
946544
|
[2] |
Flange screw
|
|
| 3. |
3172774
|
[2] |
Tachometer sensor
|
Camshaft and flywheel sensor., For electronic control unit.
|
| 4. |
974673
|
[1] |
O-ring
|
|
| 4A. |
940326
|
[2] |
Hex. socket screw
|
|
| 4B. |
1677894
|
[1] |
Shim
|
TH=0,6mm
|
| 5. |
20576626
|
[1] |
Sensor, coolant water
|
For electronic control unit., (3944123)
|
| 6. |
949656
|
[1] |
O-ring
|
|
| 6A. |
946440
|
[1] |
Flange screw
|
|
| 7. |
965558
|
[1] |
Bracket
|
|
| 8. |
866704
|
[1] |
Bracket
|
|
| 9. |
479979
|
[1] |
Plug
|
|
| 10. |
3574797
|
[2] |
Vibration damper
|
|
| 11. |
949278
|
[2] |
Flange lock nut
|
|
| 12. |
976943
|
[2] |
Washer
|
|
| 13. |
180009
|
[1] |
Nipple
|
|
| 14. |
1507501
|
[1] |
Hose assembly
|
|
| 15. |
947899
|
[1] |
Reduction nipple
|
|
| 16. |
947084
|
[1] |
Gasket
|
|
| 17. |
863169
|
[1] |
Pressure monitor, oil-engine
|
|
| 18. |
866835
|
[1] |
Sensor, oil-engine
|
|
| 18. |
866836
|
[1] |
Sensor, oil-engine
|
For double instruments.
|
| 19. |
946671
|
[1] |
Flange screw
|
|
| 20. |
965552
|
[1] |
Bracket
|
|
| 21. |
863415
|
[1] |
Rubber cushion
|
|
| 22. |
945408
|
[1] |
Flange nut
|
|
| 23. |
843698
|
[1] |
Bracket
|
|
| 24. |
947624
|
[1] |
Gasket
|
|
| 25. |
866837
|
[1] |
Sensor, turbo
|
|
| 26. |
954378
|
[2] |
Nipple
|
|
| 27. |
945460
|
[1] |
Tube
|
L=1200mm
|
| 28. |
954356
|
[2] |
Fitting nut
|
|
| 29. |
954364
|
[2] |
Sleeve
|
|
| 30. |
944717
|
[2] |
Support sleeve
|
|
| 31. |
1077574
|
[2] |
Sensor
|
Pressure and temperature sensor for engine oil and piston cooling.
|
| 32. |
968559
|
[1] |
O-ring
|
|
| 33. |
862154
|
[1] |
Temperature sensor, coolant water
|
|
| 33. |
862567
|
[1] |
Temperature sensor, coolant water
|
For double instruments.
|
| 34. |
976931
|
[1] |
Gasket
|
|
| 35. |
862251
|
[1] |
Tachometer sensor
|
|
| 36. |
948884
|
[1] |
Gasket
|
|
| 37. |
866839
|
[1] |
Sensor, oil pressure-reverse gear
|
|
| 38. |
976931
|
[1] |
Gasket
|
|
