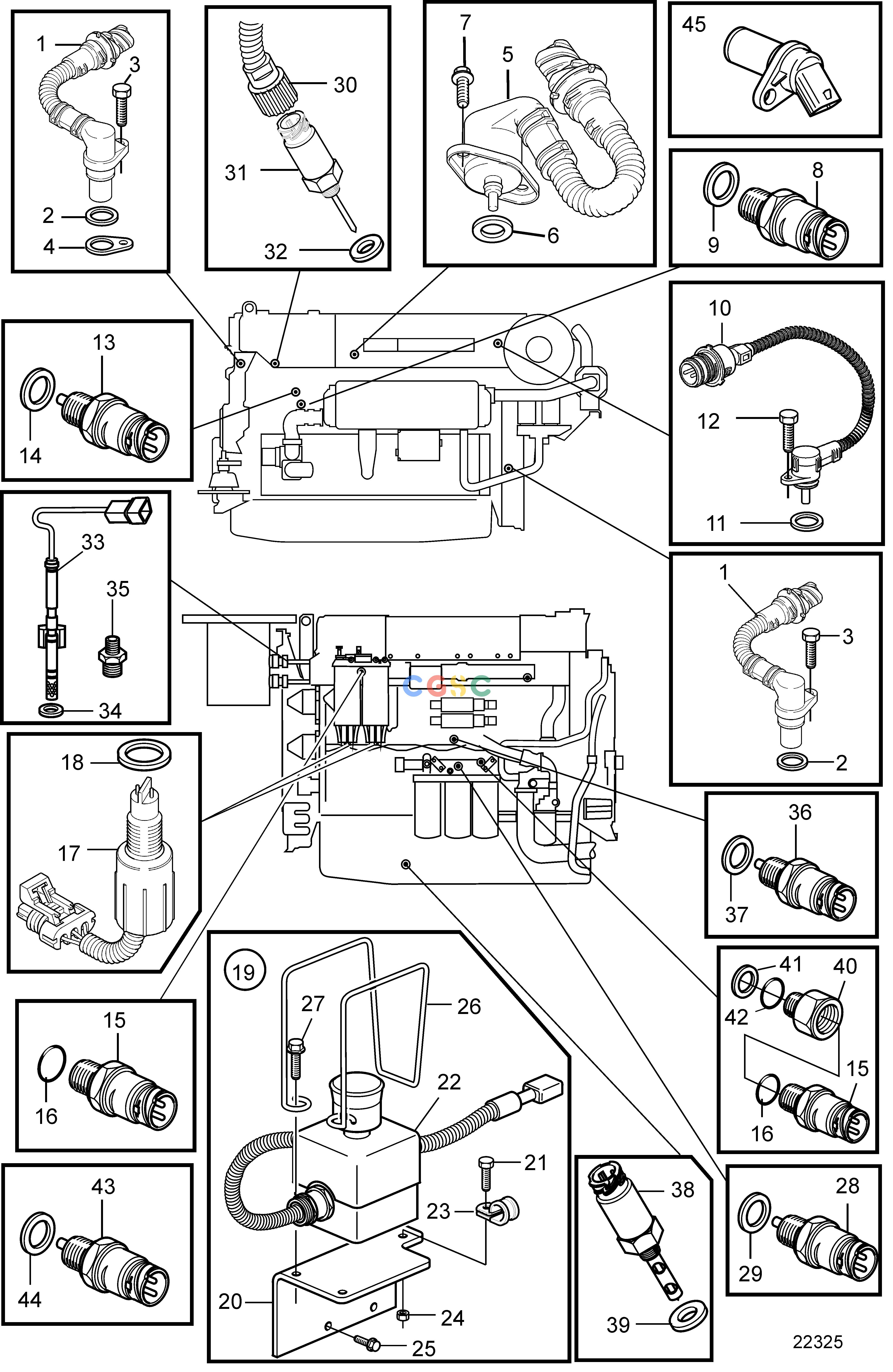

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemContacts and Sensors. StandardEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3172774
|
[1] |
Tachometer sensor, camshaft/flywheel
|
|
| 2. |
974673
|
[1] |
O-ring
|
|
| 3. |
940326
|
[1] |
Hex. socket screw
|
|
| 4. |
1677894
|
[1] |
Shim
|
TH=0,6mm
|
| 5. |
20909613
|
[1] |
Sensor, charge air pressure/temp
|
(3172524)
|
| 6. |
975632
|
[1] |
O-ring
|
|
| 7. |
946544
|
[2] |
Flange screw
|
|
| 8. |
20796744
|
[1] |
Pressure sensor, crankcase pressure
|
(20499340)
|
| 9. |
968559
|
[1] |
O-ring
|
|
| 10. |
20576626
|
[1] |
Sensor, coolant water
|
|
| 11. |
949656
|
[1] |
O-ring
|
|
| 12. |
946440
|
[1] |
Flange screw
|
|
| 13. |
1077574
|
[1] |
Sensor, oil pressure/temperature
|
|
| 14. |
968559
|
[1] |
O-ring
|
|
| 15. |
20886108
|
[1] |
Pressure sensor, fuel/oil pressure
|
(20484678), Replaced by 20898038
|
| 15. |
21302639
|
[1] |
Pressure sensor, fuel/oil pressure
|
|
| 16. |
968559
|
[1] |
O-ring
|
|
| 17. |
3588916
|
[1] |
Alarm kit, water in fuel filter
|
Early type 2 wire
|
| 17. |
3885070
|
[1] |
Sensor, water in fuel filter
|
Late type 3 wire
|
| 18. |
3831094
|
[1] |
O-ring
|
|
| 19. |
3588154
|
[1] |
Emergency stop
|
|
| 20. |
|
|
|
|
| 21. |
946440
|
[1] |
Flange screw
|
|
| 22. |
3588180
|
[1] |
Emergency stop
|
|
| 23. |
942542
|
[1] |
Clamp
|
|
| 24. |
945408
|
[3] |
Flange nut
|
|
| 25. |
946441
|
[2] |
Flange screw
|
|
| 26. |
3838198
|
[1] |
Protecting brace
|
|
| 27. |
946173
|
[2] |
Flange screw
|
|
| 28. |
21202753
|
[1] |
Pressure switch
|
|
| 29. |
968559
|
[1] |
O-ring
|
|
| 30. |
3808721
|
[1] |
Cable kit
|
|
| 31. |
874327
|
[1] |
Level guard
|
|
| 32. |
948884
|
[1] |
Gasket
|
|
| 33. |
874330
|
[1] |
Temperature sensor, exhaust
|
|
| 34. |
947626
|
[1] |
Gasket
|
|
| 35. |
874318
|
[1] |
Fitting
|
|
| 36. |
22052384
|
[1] |
Pressure sensor, coolant water
|
(874329)
|
| 37. |
11998
|
[1] |
Gasket
|
|
| 38. |
874328
|
[1] |
Level guard, oil
|
|
| 39. |
11998
|
[1] |
Gasket
|
|
| 40. |
3835956
|
[1] |
Nipple
|
|
| 41. |
947627
|
[1] |
Gasket
|
|
| 42. |
976030
|
[1] |
O-ring
|
|
| 43. |
874313
|
[1] |
Sensor, oil pressure-reverse gear
|
Alt
|
| 44. |
976931
|
[1] |
Gasket
|
|
| 45. |
20513343
|
[1] |
Sensor, reverseing gear
|
|
