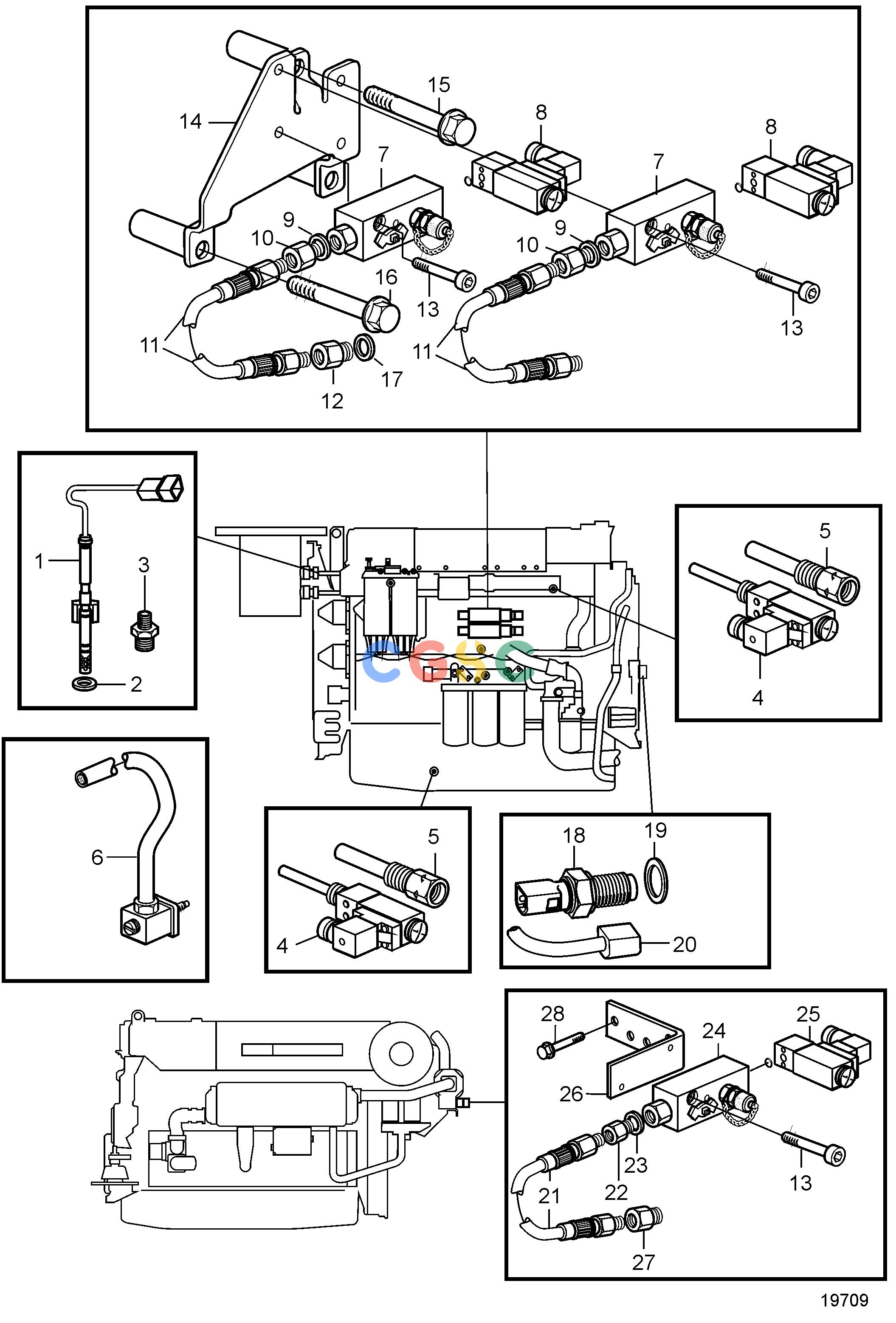

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemContacts and Sensors. Shut Down SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
874330
|
[1] |
Temperature sensor, exhaust
|
|
| 2. |
947626
|
[1] |
Gasket
|
|
| 3. |
874318
|
[1] |
Fitting
|
|
| 4. |
881869
|
[2] |
Thermo monitor, coolant water/oil temp.
|
Calibrated separately
|
| 5. |
873715
|
[2] |
Sleeve
|
|
| 6. |
3588563
|
[2] |
Wiring harness
|
L=2,0m, Extension cable for sensors, shut down., (881879)
|
| 6. |
3588561
|
[3] |
Wiring harness
|
L=1,0m, Extension cable for sensors, shut down.
|
| 7. |
3831442
|
[2] |
Block
|
|
| 8. |
881871
|
[2] |
Pressure monitor, coolant water/oilpressure
|
0-4bar
|
| 8. |
21294587
|
[2] |
Pressure monitor
|
0-10 bar
|
| 9. |
18817
|
[2] |
Gasket
|
|
| 10. |
957030
|
[2] |
Nipple
|
|
| 11. |
3835281
|
[2] |
Oil hose
|
|
| 12. |
16381
|
[1] |
Plug
|
|
| 13. |
947671
|
[6] |
Hex. socket screw
|
|
| 14. |
3832416
|
[1] |
Bracket
|
|
| 15. |
965217
|
[1] |
Flange screw
|
L=65mm
|
| 16. |
965182
|
[2] |
Flange screw
|
L=80mm
|
| 17. |
11998
|
[1] |
Gasket
|
|
| 18. |
862251
|
[1] |
Tachometer sensor
|
|
| 19. |
948884
|
[1] |
Gasket
|
|
| 20. |
3819589
|
[1] |
Wiring harness
|
|
| 21. |
3835380
|
[1] |
Hose
|
|
| 22. |
957030
|
[1] |
Nipple
|
|
| 23. |
18817
|
[1] |
Gasket
|
|
| 24. |
3831442
|
[1] |
Block
|
|
| 25. |
889629
|
[1] |
Pressure monitor, oil pressure-reverse gear
|
5-30bar
|
| 26. |
3832972
|
[1] |
Bracket
|
Early type
|
| 26. |
3887725
|
[1] |
Bracket
|
Late type
|
| 27. |
991057
|
[1] |
Nipple
|
|
| 28. |
945444
|
[2] |
Flange screw
|
|
