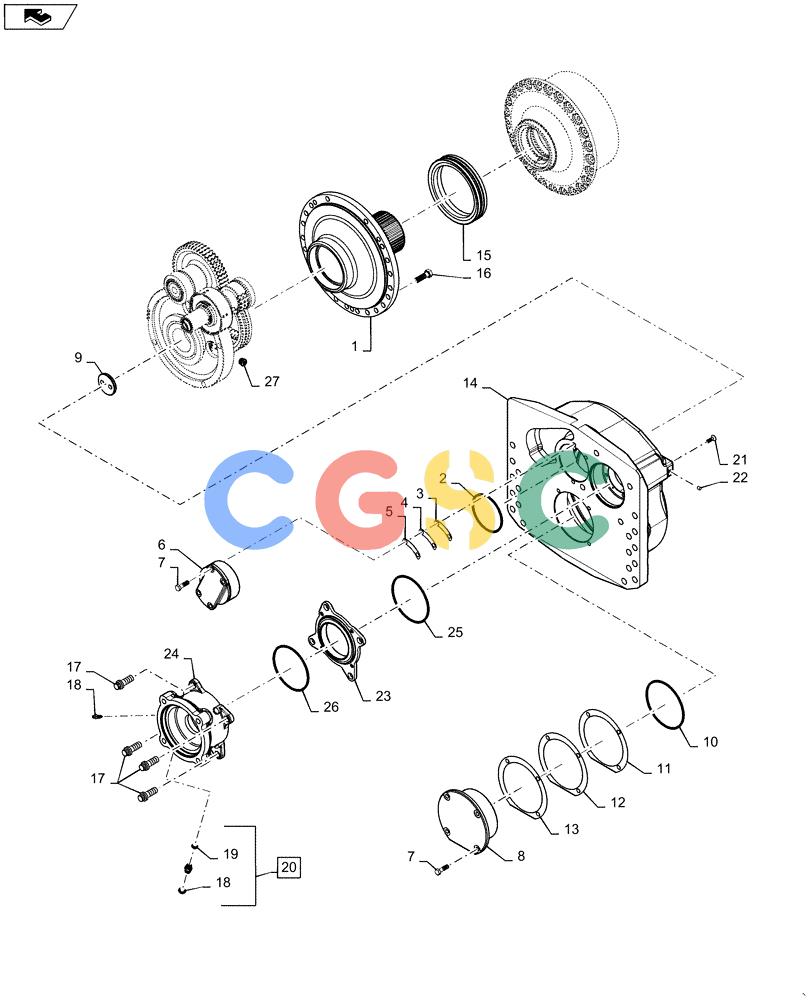

| 1. | 87452186 | [1] | SPINDLE | BURWheel |
| 2. | 238-5250 | [1] | O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro | CAS Superseded by part number: 510828 |
| 3. | G107613 | [1] | SHIM | CASIdler Gear, 0.08mm |
| 4. | G107614 | [1] | SHIM | CASIdler Gear, 0.18mm |
| 5. | G107615 | [1] | SHIM | CASIdler Gear, 0.51mm |
| 6. | 87452193 | [1] | BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm | BURIdler Gear |
| 7. | 606-12040 | [8] | BOLT,Hex, M12 x 40mm, Cl 10.9 | CASLocking |
| 8. | 87452194 | [1] | BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm | BURSun Gear |
| 9. | 87452199 | [1] | RETAINER | BURSun Gear |
| 10. | 238-5261 | [1] | O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro | CAS Superseded by part number: 70923596 |
| 11. | 87452197 | [1] | SHIM | BURSun Gear, 0.51mm |
| 12. | 87452196 | [1] | SHIM | BURSun Gear, 0.18mm |
| 13. | 87452195 | [1] | SHIM | BURSun Gear, 0.08mm |
| 14. | 47447180 | [1] | FINAL DRIVE HOUSING | BURCRX 410 |
| 15. | G107620 | [1] | SEAL,193.22mm ID x 238.89mm OD x 42.46mm Thk | CASFace |
| 16. | 606-16050 | [21] | BOLT,Hex, M16 x 50mm, Cl 10.9 | CASLocking |
| 17. | 868-20050 | [4] | 12 PT SCREW,M20 x 50mm, Cl 12.9 | KOBM20 x 50 Class 12.9 |
| 18. | 9832308 | [1] | BLEEDER | ZED |
| 19. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS Superseded by part number: 9617873 |
| 20. | 9993143 | [1] | HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB | IMOIncl 18, 19 |
| 21. | 906037R1 | [4] | HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9 | CAS |
| 22. | 87520606 | [1] | PLUG | BRRExpansion |
| 23. | 87452184 | [1] | BRAKE PLATE | BURPark Housing Superseded by part number: 47504331 |
| 24. | 84296781 | [1] | FINAL DRIVE HOUSING | BHBUsed On 1650M XLT, 1650M WP/LGP Model |
| 24. | 84296769 | [1] | HOUSING | BURUsed On 1150M LT, 1150M WT/LGP Model |
| 25. | 87591919 | [1] | O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro | BUR |
| 26. | 87591920 | [1] | O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro | BUR |
| 27. | 218-5210 | [3] | PLUG,Hex, 3/4"-16 ORB | CAS Superseded by part number: 72186290, 85802955 |
