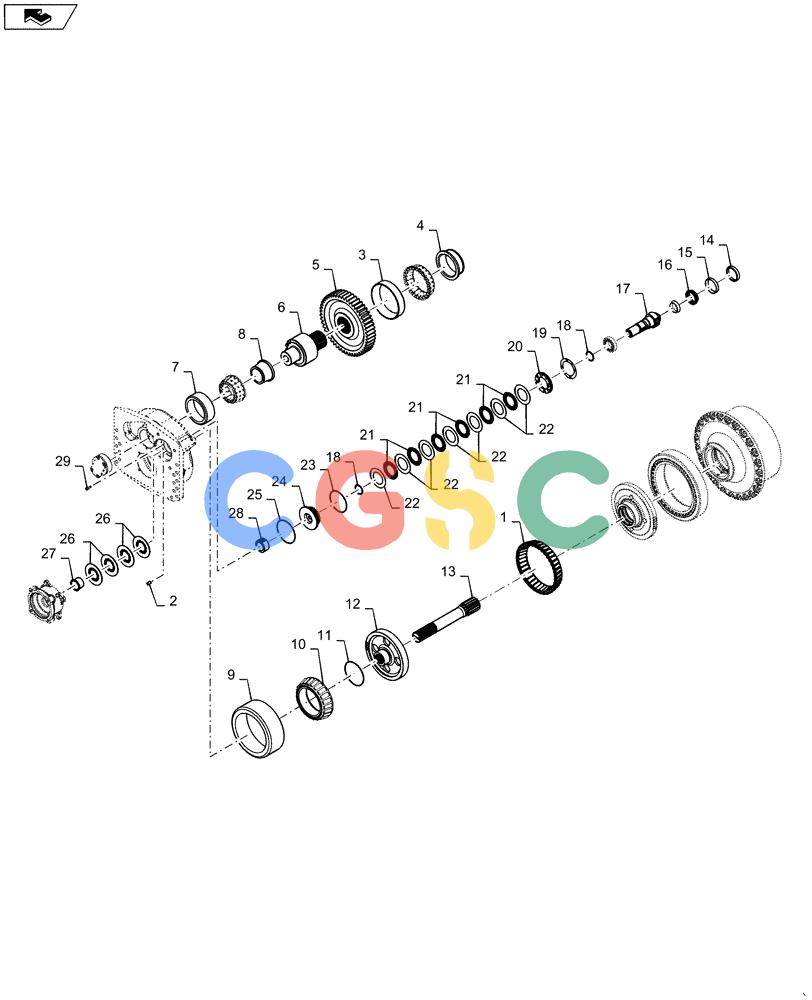

纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (48.130.AJ[02]) - FINAL DRIVE AND HUB ASSEMBLY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
356 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | G103915 | [1] | TAPERED ROLLER BEARING,142.88mm ID x 39.69mm W | CASAssy |
| 2. | 87495306 | [2] | PIN,5mm OD x 10mm L | BRRDowl |
| 3. | 65721C1 | [1] | BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378" | IHDrive Cup Superseded by part number: 384141 |
| 4. | 65720C91 | [1] | BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378" | IHDrive Cone Superseded by part number: 384141 |
| 5. | 87610438 | [1] | DRIVEN GEAR | BURIdler, 50T |
| 6. | 87610432 | [1] | IDLER PINION | BUR16T |
| 7. | 84987C1 | [1] | BEARING ASSY | IH4.06 OD x 1.44 W Superseded by part number: NNA40435 |
| 8. | 84986C1 | [1] | BEARING ASSY,49.21mm ID x 44.48mm W | IH1.94 x 1.75 |
| 9. | 87313985 | [2] | BEARING CUP,156.97mm OD x 34mm W | BUR Superseded by part number: 384142 |
| 10. | 87313983 | [2] | BEARING ASSY,99.97mm ID x 42mm W | BUR |
| 11. | D32043 | [1] | RING | CASSnap |
| 12. | 87309911 | [1] | DRIVEN GEAR | BURCounter Shaft, 65T |
| 13. | 87309912 | [1] | GEAR | BURSun Shaft, 14T |
| 14. | 87567817 | [1] | SEAL,28mm ID x 40mm OD x 7mm Thk | BUR |
| 15. | A136128 | [2] | BEARING CUP | IH105 OD x 18.5W Superseded by part number: 86577049 |
| 16. | A136127 | [2] | ROLLER BEARING,2.5591" ID x 0.9055" | IH65.0 x 23.0 Superseded by part number: 86577049 |
| 17. | 87309907 | [1] | GEAR | BURInput Pinion, 20T Superseded by part number: 47504510 |
| 18. | 101-11250 | [2] | SNAP RING,#250, 2.356, Ext | CAS Superseded by part number: 87016255 |
| 19. | 84322474 | [1] | SHIM | BHBInput Bearing |
| 20. | 84304614 | [1] | FINAL DRIVE HOUSING | BHBAssembly, Park Brake |
| 21. | 84163978 | [6] | DISC | BRRClutch Friction |
| 22. | 345335A2 | [7] | PLATE | CASClutch Separator |
| 23. | 385236A2 | [1] | SEALING RING | RAC0.137 x 4.682 |
| 24. | 87577298 | [1] | PISTON | BURParking Brake |
| 25. | 385237A2 | [1] | SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro | RAC0.137 x 6.165 |
| 26. | 1997880C1 | [4] | SPRING,70.15mm ID x 155mm OD x 3.5mm Thk | IH |
| 27. | 87577303 | [1] | SLEEVE | BURSpring Retainer |
| 28. | 87452185 | [1] | HUB | BURPark Brake |
| 29. | 863-10025 | [4] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CAS Superseded by part number: 86625209 |
