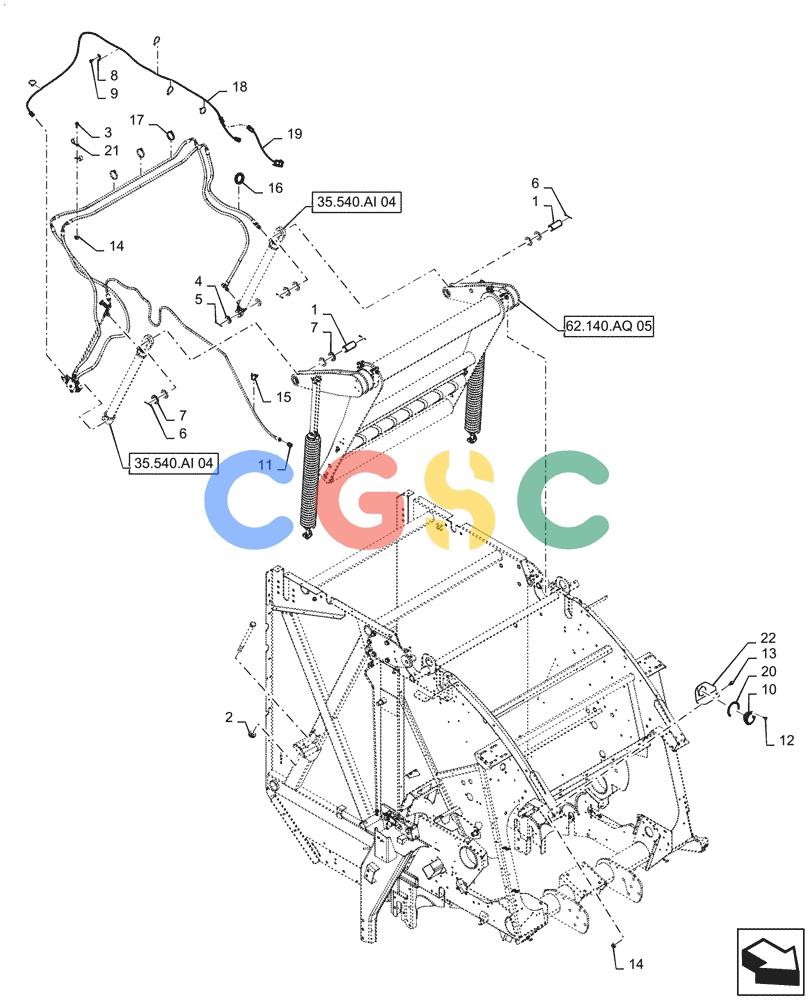

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (35.540.AK[03]) - BELT TENSION, DUAL HYDDRAULIC CYLINDER, WITH BYPASS VALVE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86515940
|
[2] |
PIN,38.1mm OD x 91.5mm L
|
PA
Superseded by part number: 86637228
|
| 2. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
|
| 3. |
9671714
|
[1] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 4. |
87367
|
[4] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 5. |
87399
|
[3] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 6. |
87400
|
[4] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 7. |
28581
|
[8] |
WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk
|
NH
Superseded by part number: 86611730
|
| 8. |
86010402
|
[2] |
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 9. |
381014
|
[2] |
SCREW,Flng, M8 x 16mm
|
NH
|
| 10. |
84384411
|
[1] |
PRESSURE GAUGE,3000 PSI, 1/4" NPT
|
PLO
Belt Tension
|
| 11. |
241971
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe
|
PA
|
| 12. |
425520
|
[3] |
RIVET,Pop, 3.96mm OD x 10.4mm L
|
NH
|
| 13. |
9804258
|
[10] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 14. |
86629542
|
[4] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 15. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 16. |
529828
|
[2] |
GROMMET,2 1/8" x 2 7/8" x 2 1/2"
|
NH
|
| 17. |
87034173
|
[2] |
CABLE TIE,774.7mm L
|
PA
Superseded by part number: 529070
|
| 18. |
47563960
|
[1] |
WIRE HARNESS
|
NH
Baler BP
|
| 19. |
47563962
|
[1] |
WIRE HARNESS
|
NH
Bale BK
|
| 20. |
84603722
|
[1] |
DECAL
|
NH
Belt Tension
|
| 21. |
700514
|
[4] |
CLAMP,3.8mm, Coat, M8 Bolt
|
NH
|
| 22. |
84399830
|
[1] |
SUPPORT
|
PLO
Pressure Guage
|
