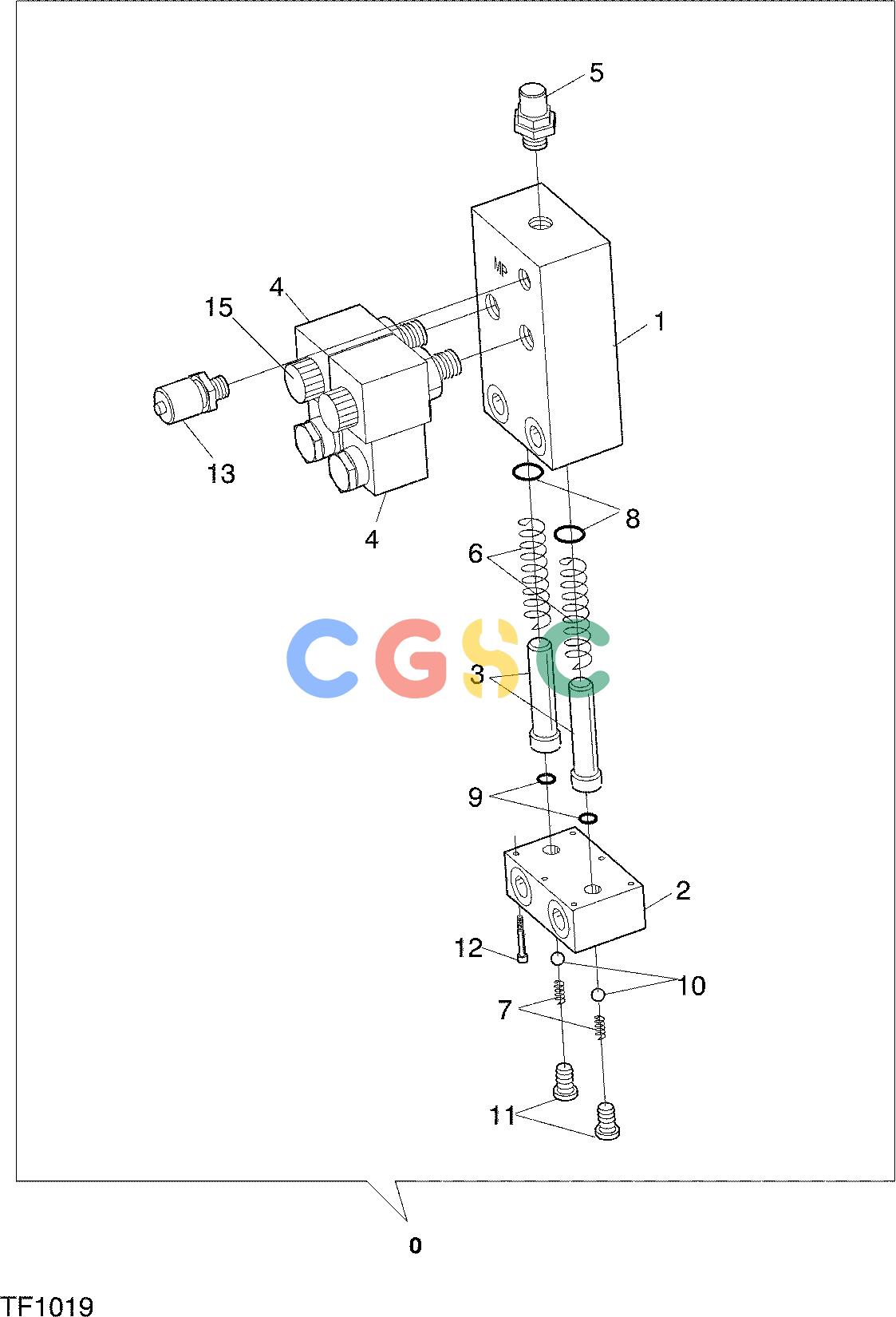

约翰迪尔零件查询743C ATT - ATTACHMENTS ENGINE PAINT MARKING PUMP F052679 11 58 TF1019 [TF1019]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F046538
|
[1] |
PAINT MARKING PUMP
|
|
| 1. |
F048440
|
[1] |
Housing
|
|
| 2. |
F048439
|
[1] |
Cover
|
|
| 3. |
F048438
|
[2] |
Piston
|
|
| 4. |
F024379
|
[2] |
Solenoid Valve
|
|
| |
F028789
|
[2] |
Solenoid
|
|
| |
F035469
|
[1] |
Seal Kit
|
|
| 5. |
F021684
|
[1] |
Relief Valve
|
|
| |
F021587
|
[1] |
Seal Kit
|
|
| 6. |
F021685
|
[2] |
Spring
|
|
| 7. |
F021686
|
[2] |
Spring
|
|
| 8. |
F035291
|
[2] |
O-Ring
|
|
| 9. |
F021688
|
[2] |
O-Ring
|
|
| 10. |
F021689
|
[2] |
Ball
|
|
| 10. |
F057416
|
[2] |
STEEL BALL
|
|
| 11. |
F011293
|
[2] |
Plug
|
|
| 12. |
F011314
|
[6] |
Screw
|
|
| 13. |
F025711
|
[1] |
MEASURING NIPPLE
|
|
| 14. |
F008631
|
[1] |
Check Valve
|
|
| 15. |
F055155
|
[2] |
Nut
|
|
