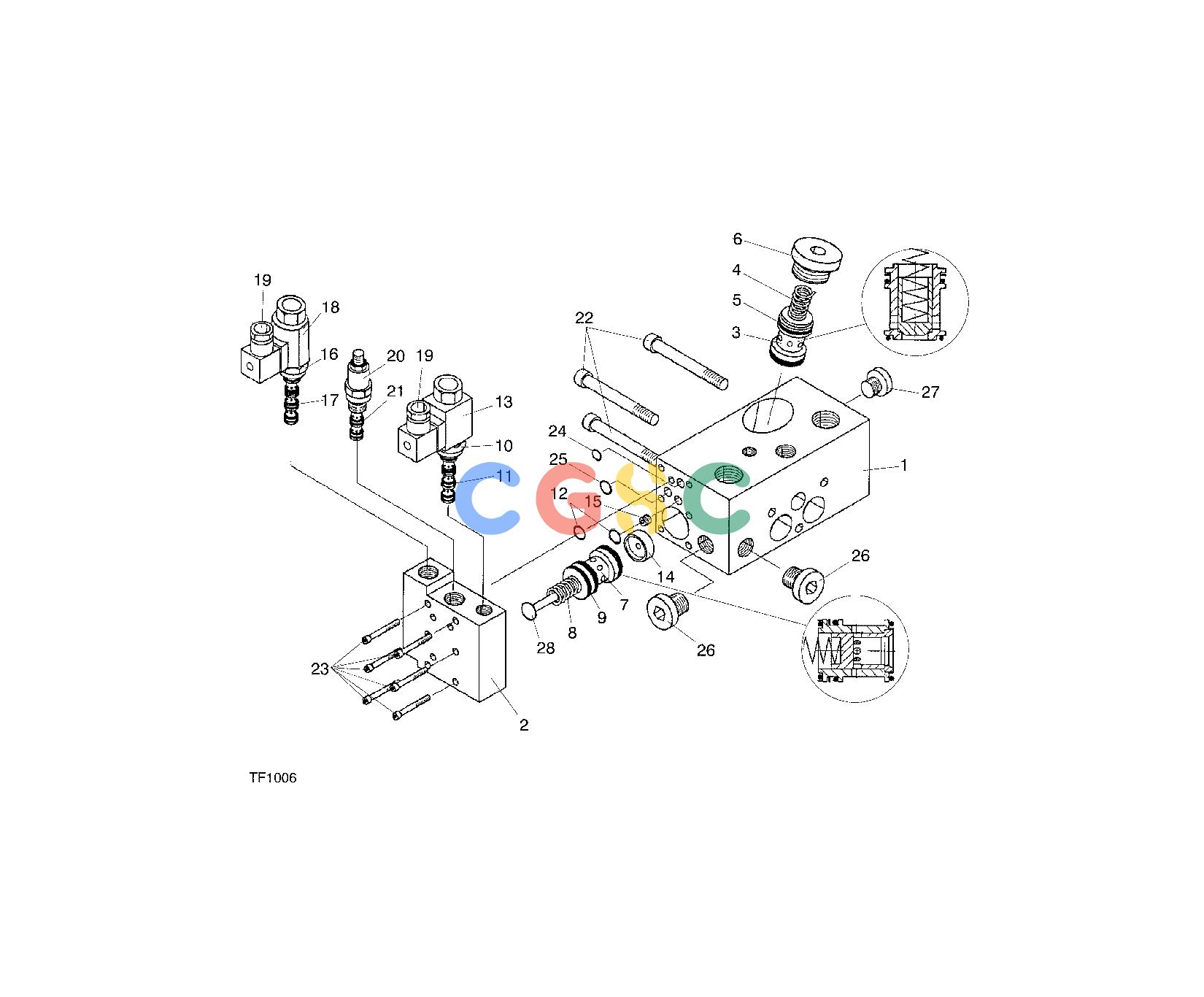

约翰迪尔零件查询743C ATT - ATTACHMENTS ENGINE SAW BLOCK F052679 11 14 TF1006-1 [TF1006-1]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
818 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047624
|
[1] |
VALVE BLOCK
|
|
| |
F049327
|
[1] |
VALVE BLOCK
|
|
| 1. |
F048347
|
[1] |
Manifold
|
|
| 2. |
F048346
|
[1] |
Manifold
|
|
| 3. |
F038496
|
[1] |
Valve
|
|
| 4. |
F038495
|
[1] |
Spring
|
|
| 5. |
F018824
|
[1] |
Seal Kit
|
|
| 6. |
F047850
|
[1] |
Plug
|
|
| 7. |
F008637
|
[1] |
RELIEF CARTRIDGE
|
|
| 8. |
F035053
|
[1] |
Spring
|
|
| 9. |
F018824
|
[1] |
Seal Kit
|
|
| 10. |
F042086
|
[1] |
VALVE ASSY
|
|
| 11. |
F028791
|
[1] |
Seal Kit
|
|
| 12. |
F003285
|
[2] |
O-Ring
|
|
| 13. |
F028789
|
[1] |
Solenoid
|
|
| 14. |
F032042
|
[1] |
THROTTLE SCREW
|
|
| 15. |
F046432
|
[1] |
THROTTLE SCREW
|
|
| 16. |
F054628
|
[1] |
Valve
|
|
| 17. |
F039180
|
[1] |
Seal Kit
|
|
| 18. |
F021588
|
[1] |
Solenoid
|
|
| 19. |
F004578
|
[1] |
Connector
|
|
| 20. |
F046419
|
[1] |
REDUCING VALVE
|
|
| 21. |
F021587
|
[1] |
Seal Kit
|
|
| 22. |
F008447
|
[3] |
Screw
|
|
| 23. |
F010828
|
[6] |
Screw
|
|
| 24. |
F003285
|
[3] |
O-Ring
|
|
| 25. |
F003286
|
[1] |
O-Ring
|
|
| 26. |
F018111
|
[2] |
Plug
|
|
| 27. |
F018067
|
[1] |
Plug
|
|
| 28. |
F056381
|
[1] |
LIMITER
|
|
