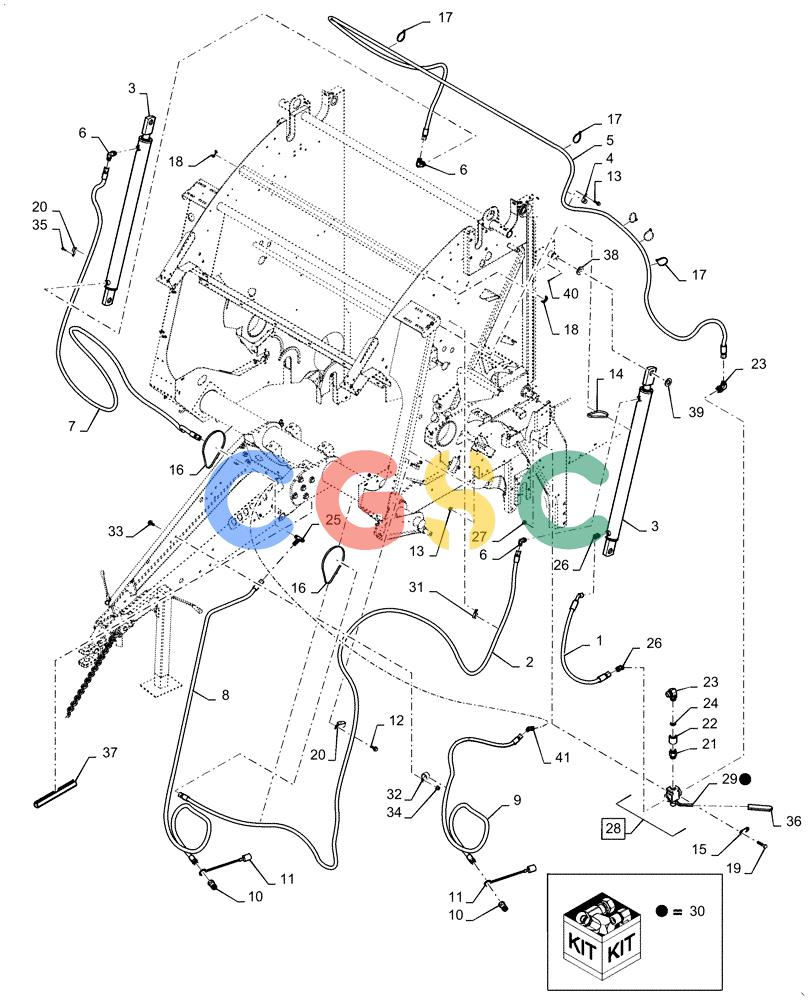

| 1. |
84419273
|
[1] |
HYDRAULIC HOSE
|
NH
LH
|
| 2. |
47456324
|
[1] |
HOSE
|
NH
152" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18
|
| 3. |
87019623
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke
|
RAC
Tailgate Lift
|
| 4. |
239859
|
[2] |
CLAMP
|
ZED
Superseded by part number: 86637976
|
| 5. |
47603468
|
[1] |
HYDRAULIC HOSE
|
NH
195" Long, SAE-6, Female 37° JIC Fitting, 9/16"-18 & SAE-8, Female 37° JIC Fittings, 3/4"-16
|
| 6. |
76344
|
[5] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
|
NH
|
| 7. |
47456819
|
[1] |
HOSE
|
NH
146" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18
|
| 8. |
84419297
|
[1] |
HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17
|
PLO
120" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18 & 1/2"-14 NPTF
|
| 9. |
47665570
|
[1] |
HYDRAULIC HOSE
|
NH
284" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18 & 1/2"-14 NPTF
|
| 10. |
9801618
|
[2] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Superseded by part number: 9412
|
| 11. |
86621124
|
[2] |
DUST CAP
|
NH
Black
|
| 12. |
9671714
|
[4] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 13. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 14. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
|
| 15. |
84416929
|
[1] |
PLATE
|
PLO
|
| 16. |
87034173
|
[4] |
CABLE TIE,774.7mm L
|
PA
Superseded by part number: 529070
|
| 17. |
86566989
|
[17] |
CABLE TIE,208mm L
|
ZED
|
| 18. |
NH291525
|
[1] |
EDGE
|
NH
31" Superseded by part number: 86516805
|
| 19. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 20. |
578070
|
[4] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 21. |
259619
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB
|
WIN
Superseded by part number: 87412765
|
| 22. |
592188
|
[1] |
COUPLING
|
GI
Superseded by part number: 86635143
|
| 23. |
76347
|
[2] |
ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB
|
NH
Superseded by part number: 87329788
|
| 24. |
86630002
|
[1] |
ORIFICE,15.88mm OD x 5.08mm Thk
|
NH
|
| 25. |
86513104
|
[1] |
TEE,9/16"-18, 37 Degree, Blkhd
|
WIN
|
| 26. |
330346
|
[1] |
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
|
NH
|
| 27. |
353308
|
[2] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 28. |
84606149
|
[1] |
VALVE WITH LEVER
|
NH
Incl 29, 30
|
| 29. |
47382486
|
[1] |
VALVE LEVER
|
NH
|
| 30. |
47382510
|
[1] |
SEAL KIT
|
NH
LH
|
| 31. |
620019
|
[1] |
CLAMP
|
NH
|
| 32. |
86628564
|
[5] |
CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
Superseded by part number: 515-23317
|
| 33. |
86050286
|
[3] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 34. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 35. |
381014
|
[1] |
SCREW,Flng, M8 x 16mm
|
NH
|
| 36. |
47576842
|
[1] |
HANDLE GRIP
|
NH
|
| 37. |
87490545
|
[1] |
PROTECTION STRIP
|
ZED
|
| 38. |
87367
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 39. |
26405
|
[2] |
PIN,1" OD x 2-3/4" L
|
FOR
|
| 40. |
87399
|
[2] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 41. |
86512959
|
[1] |
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
|
GI
|
