凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (35.550.AC[02]) - VAR - 727160 - TAILGATE, HYDRAULIC LIFT, STANDARD EJECT, YFN188619 AND AFTER Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (35.550.AC[02]) - VAR - 727160 - TAILGATE, HYDRAULIC LIFT, STANDARD EJECT, YFN188619 AND AFTER Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 118 次

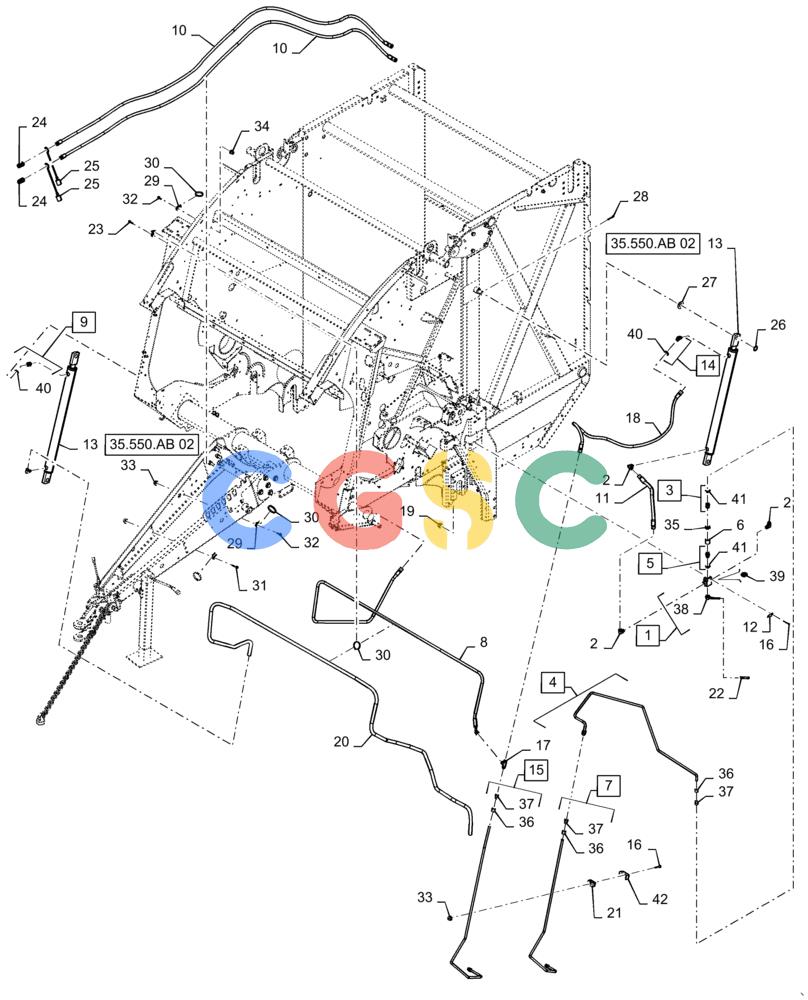

Pos.	Part No	Qty	Parts name	Comments
1.	84606149	[1]	VALVE WITH LEVER	NH Incl 38, 39
2.	86512938	[4]	90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB	NH Incl 40
3.	81827427	[2]	HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB	A Incl 41 Superseded by part number: 86301S36
4.	47861634	[1]	HYD TUBE	NH .375" ID x .500" OD, Incl 36, 37
5.	259619	[1]	HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB	WIN Incl 41 Superseded by part number: 87412765
6.	47843875	[1]	HYD CONNECTOR,3/4" - 16 x 3/4" - 16	NH
7.	47861639	[1]	HYD TUBE	NH .375" ID x .500" OD, Incl 36, 37
8.	47863822	[1]	HYDRAULIC HOSE,10mm ID x 2911mm L, SAE 100R17	NH
9.	86509028	[1]	HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB	NH Incl 40
10.	47733861	[2]	HYDRAULIC HOSE,10mm ID x 3690mm L, SAE 100R17	NH
11.	47863823	[1]	HYDRAULIC HOSE,12.5mm ID x 746mm L, SAE 100R17	NH
12.	84416929	[1]	PLATE	PLO
13.	87019623	[2]	HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke	RAC Tailgate Lift, Standard Eject
14.	87301276	[2]	HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC	WIC Incl 40
15.	47861637	[1]	HYD TUBE	NH .375" ID x .500" OD, Incl 36, 37
16.	120056	[5]	BOLT,M6 x 1.0 x 54.15mm, Cl 8.8	NH
17.	128996	[1]	TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC	WIN
18.	47733719	[1]	HYDRAULIC HOSE,10mm ID x 1620mm L, SAE 100R17	NH
19.	353308	[2]	NUT,M6 x 1.0, Cl 8	NH
20.	47863825	[1]	HYDRAULIC HOSE,12.5mm ID x 4877mm L, SAE 100R17	NH
21.	430357	[6]	CLAMP	DUB
22.	47576842	[1]	HANDLE GRIP	NH
23.	381014	[1]	SCREW,Flng, M8 x 16mm	NH
24.	9801618	[2]	QUICK MALE COUPLING,1/2" - 14	NH Superseded by part number: 9412
25.	86621124	[2]	DUST CAP	NH Black
26.	26402	[2]	WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk	NH
27.	87367	[2]	WASHER,1.06" ID x 2" OD x 0.13" Thk	PA
28.	87399	[2]	COTTER PIN,1/2 x 3 Bolt	GI
29.	84407295	[5]	BASE	BN
30.	87034173	[20]	CABLE TIE,774.7mm L	PA Superseded by part number: 529070
31.	86511842	[2]	BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8	NH
32.	9671714	[3]	FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8	NH
33.	9804277	[2]	FLANGE NUT,Hex, M8 x 1.25, Cl 8	NH Superseded by part number: 86505868
34.	86610200	[3]	THREADED INSERT,M8 x 1.25	NH
35.	86630002	[1]	ORIFICE,15.88mm OD x 5.08mm Thk	NH
36.	129428	[1]	TUBE NUT,37 Degree, 3/4"-16, Type B	GI
37.	235671	[1]	SLEEVE,37 Degree, 1/2" Tube	DUB
38.	47382486	[1]	VALVE LEVER	NH
39.	47382510	[1]	SEAL KIT	NH
40.	9617873	[1]	O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro	NH
41.	128825	[1]	O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro	NH
42.	431941	[1]	SUPPORT	DUB
