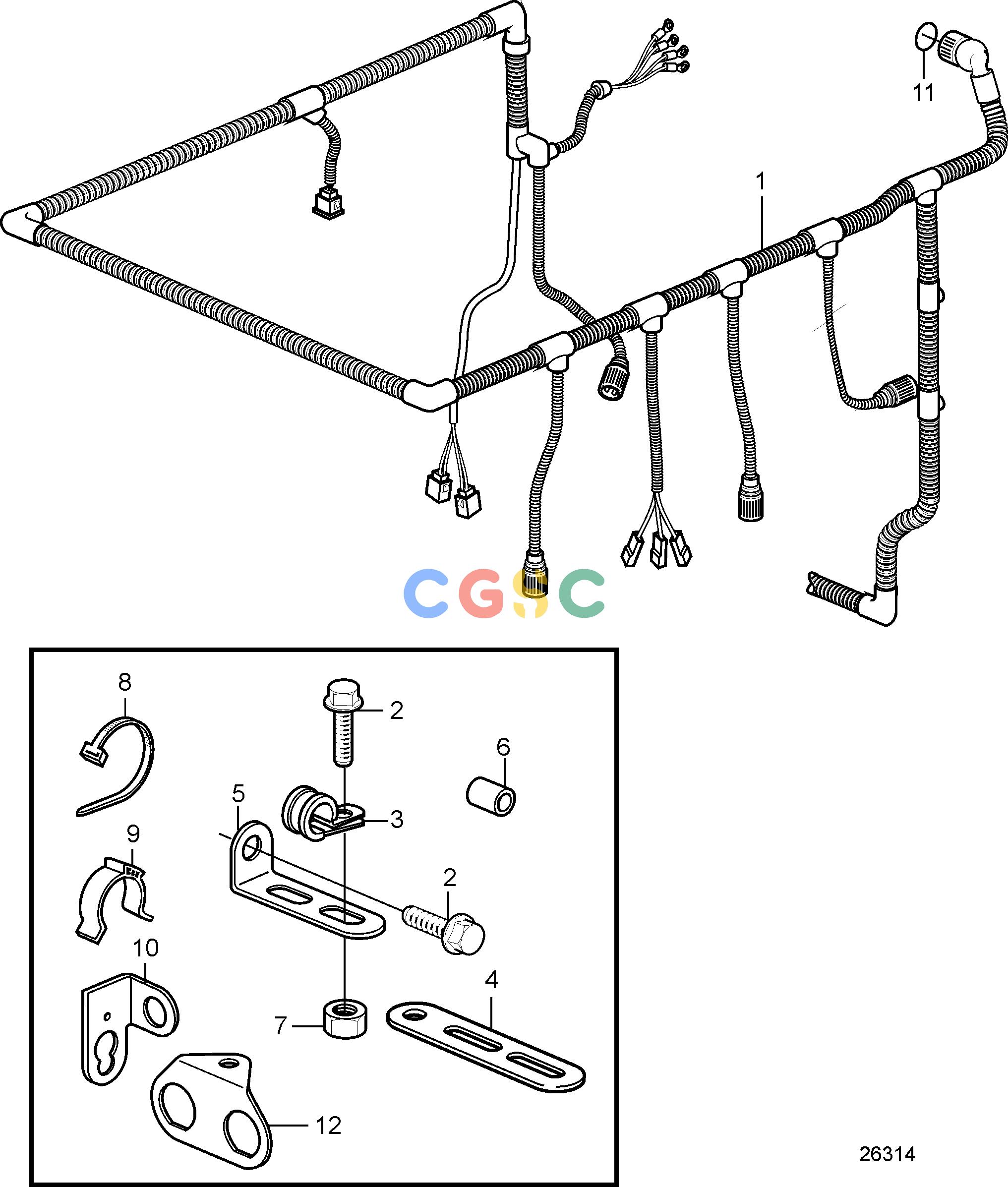

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3807040
|
[1] |
Wiring harness
|
|
| 2. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 2. |
946441
|
[1] |
Flange screw
|
M10x20mm
|
| 3. |
949746
|
[3] |
Clamp
|
I.D=12,7mm
|
| 3. |
949747
|
[1] |
Clamp
|
I.D=15.7mm
|
| 3. |
947827
|
[9] |
Clamp
|
I.D=25,4mm
|
| 4. |
965543
|
[1] |
Bracket
|
|
| 5. |
965559
|
[7] |
Bracket
|
L=80mm
|
| 5. |
965562
|
[2] |
Bracket
|
L=110mm
|
| 6. |
821540
|
[1] |
Spacer sleeve
|
L=22mm
|
| 7. |
945408
|
[1] |
Flange nut
|
|
| 8. |
983472
|
[1] |
Cable tie
|
For cable to unit injectors., L=148mm
|
| 8. |
948211
|
[1] |
Cable tie
|
|
| 9. |
28429850
|
[5] |
Retainer
|
|
| 10. |
3988328
|
[1] |
Bracket
|
|
| 11. |
949721
|
[1] |
O-ring
|
|
| 12. |
3832422
|
[1] |
Bracket
|
|
