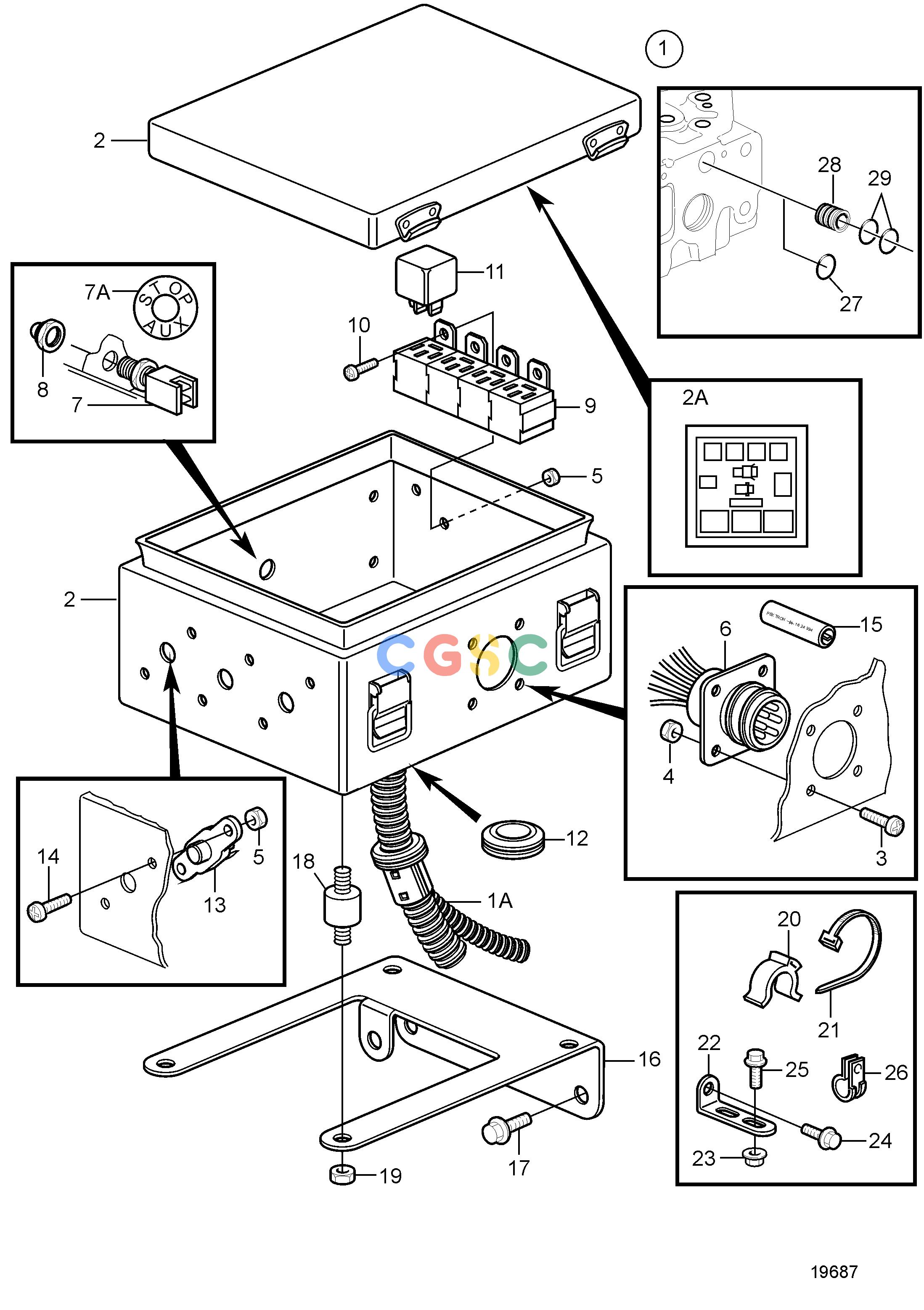

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemElectrical System EDCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3809084
|
[1] |
Wiring harness
|
|
| 1A. |
|
|
|
|
| 2. |
873953
|
[1] |
Box
|
|
| 2A. |
874078
|
[1] |
Decal
|
|
| 3. |
956046
|
[4] |
Cross recessed screw
|
|
| 4. |
955778
|
[4] |
Hexagon nut
|
|
| 5. |
963104
|
[8] |
Lock nut
|
|
| 6. |
846611
|
[1] |
Housing, instrument panel
|
|
| 7. |
873959
|
[1] |
Breaker
|
|
| 7A. |
3809463
|
[1] |
Decal
|
(3581933)
|
| 8. |
828586
|
[1] |
Nut
|
|
| 9. |
977184
|
[1] |
Housing
|
|
| 10. |
956076
|
[2] |
Cross recessed screw
|
|
| 11. |
3171420
|
[4] |
Relay
|
|
| 12. |
943920
|
[1] |
Plug
|
|
| 13. |
873952
|
[3] |
Automatic fuse
|
|
| 14. |
969408
|
[6] |
Six point socket scr
|
(956079)
|
| 15. |
20382270
|
[1] |
Diode
|
|
| 16. |
3827951
|
[1] |
Bracket
|
|
| 17. |
946441
|
[2] |
Flange screw
|
|
| 18. |
1228599
|
[4] |
Cushion
|
|
| 19. |
945407
|
[4] |
Flange nut
|
|
| 20. |
28429850
|
[5] |
Retainer
|
For cable to unit injectors.
|
| 21. |
983472
|
[5] |
Cable tie
|
For cable to unit injectors.
|
| 21. |
948211
|
[7] |
Cable tie
|
|
| 22. |
965562
|
[3] |
Bracket
|
L=110mm
|
| 22. |
965559
|
[3] |
Bracket
|
L=80mm
|
| 23. |
945408
|
[3] |
Flange nut
|
|
| 24. |
946441
|
[3] |
Flange screw
|
L=20mm
|
| 24. |
946440
|
[3] |
Flange screw
|
L=16mm
|
| 25. |
946173
|
[3] |
Flange screw
|
|
| 26. |
942400
|
[2] |
Clamp
|
D=7,9mm
|
| 26. |
949746
|
[2] |
Clamp
|
D=12,7mm
|
| 26. |
949747
|
[1] |
Clamp
|
D=15,9mm
|
| 26. |
947827
|
[5] |
Clamp
|
D=25,4mm
|
| 27. |
949656
|
[1] |
O-ring
|
For cable to unit injectors.
|
| 28. |
20463179
|
[1] |
Adapter
|
In cable grommet for unit injectors on cylinder head., For D12D-A MH
|
| 29. |
949721
|
[2] |
O-ring
|
For cable to unit injectors, for adapter 20463179., For D12D-A MH
|
