神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (05-002) - INSTRUMENT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
358 次

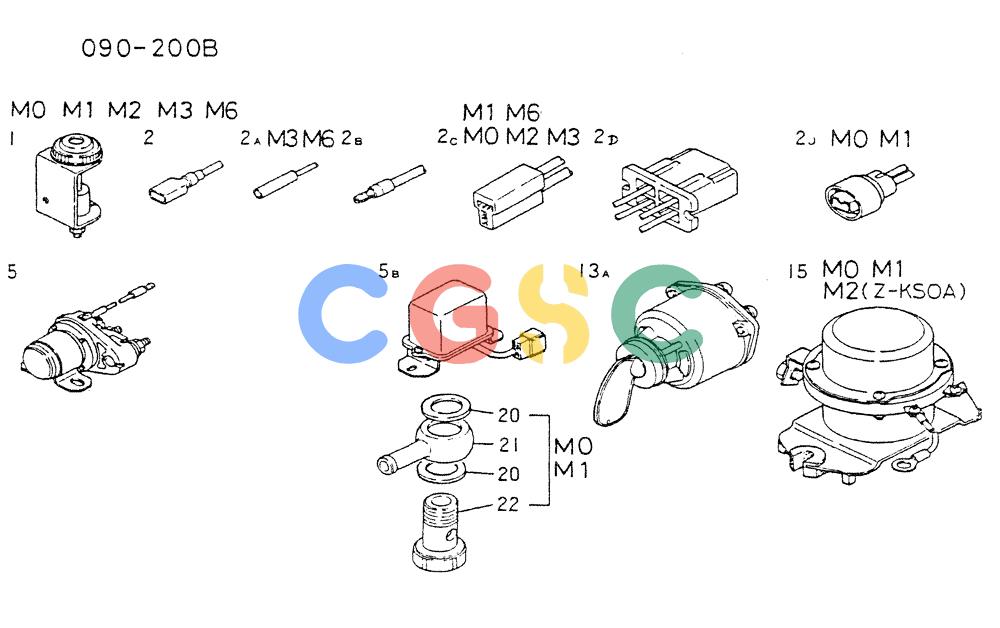

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS0A | [1] | INSTRUMENT(M2) | |
| . . | 6D221CZ-KS09 | [1] | INSTRUMENT(M2) | |
| . . | 6D221CZ-KS07 | [1] | INSTRUMENT(M2) | |
| . . | 6D221CZ-KS04 | [1] | INSTRUMENT(M0) | |
| . . | 6D221CZ-KS01 | [1] | INSTRUMENT(M0) | |
| . . | 6D221CZ-KS06 | [1] | INSTRUMENT(M3) | |
| . . | 6D221CT-KS03 | [1] | INSTRUMENT(M2) | |
| 1. | VAME059701 | [1] | INDICATOR | KOB |
| 2. | VAMH052064 | [2] | TERMINAL | KOBCONNECTOR |
| 2A. | VAMH052002 | [3] | HYD CONNECTOR | KOBCB104 (FOR M3) |
| 2B. | VAMH052045 | [1] | CONNECTOR CA104 | |
| 2C. | VAMH052031 | [1] | HYD CONNECTOR | KOB2P FEMALE |
| 2D. | VAMH052038 | [1] | CONNECTOR 4P FEMALE | CONNECTOR 4P FEMALE |
| 2J. | VAMH052231 | [1] | HYD CONNECTOR | KOB2P FEMALE (FOR M0) |
| 5. | VAME067624 | [1] | RELAY,24V, 2.3 Amp | KOBHEATER MEC Superseded by part number: 346943A1 |
| . . | VAME067638 | [1] | FUSE | KOB91A Superseded by part number: 135155A1 |
| 5B. | VAME049103 | [1] | RELAY | KOBSAFETY NEC Superseded by part number: VAR006T12171, 77269225 |
| 13A. | VA3089005200 | [1] | SWITCH | KOBSTARTER |
| 15. | VA3089003201 | [1] | RELAY | KOBRELAY, BATTERY (FOR M0) |
| . . | VA3089003201 | [1] | RELAY | KOB(FOR M2) |
| 20. | VAMH035069 | [4] | GASKET | KOB14 (FOR M0) Superseded by part number: 133378A1 |
| 21. | VAMH037116 | [2] | FLEXIBLE JOINT | KOBNIPPLE, SWIVELING D = 10 (FOR M0) |
| 22. | VAMH037087 | [2] | BOLT | KOBHOLLOW (FOR M0) |
