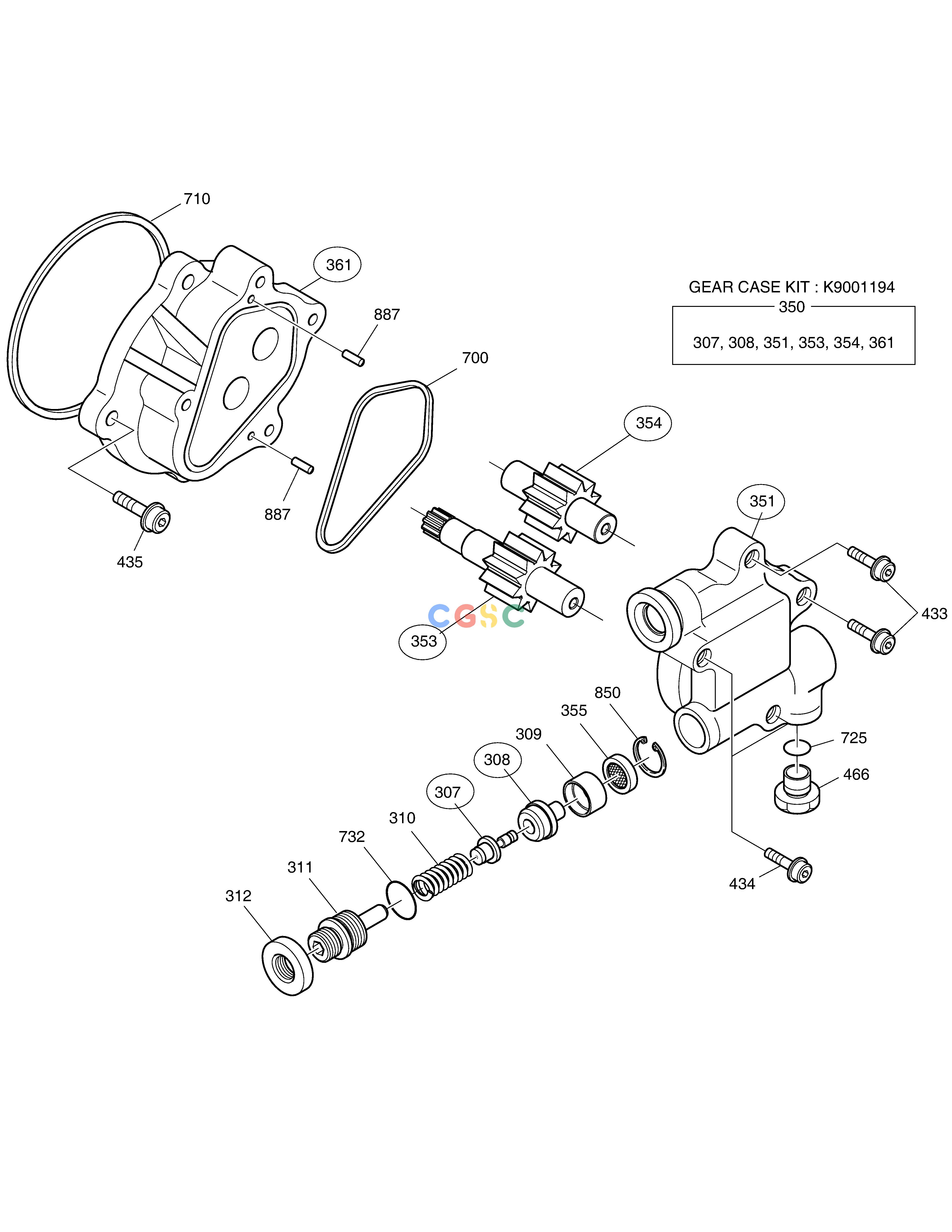

斗山零件查询GEAR PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9001192
|
[1] |
GEAR PUMP
|
|
| 307. |
1.426-00007
|
[1] |
POPPET
|
|
| 308. |
1.427-00005
|
[1] |
SEAT
|
|
| 309. |
1.115-00142
|
[1] |
RING
|
|
| 310. |
K9001193
|
[1] |
SPRING
|
|
| 311. |
1.120-00078
|
[1] |
SCREW
|
|
| 312. |
2.121-00170
|
[1] |
NUT;LOCK
|
|
| 350. |
K9001194
|
[1] |
KIT;GEAR CASE (307,308,351,353,354,361)
|
|
| 351. |
1.402-00026
|
[1] |
CASE;GEAR
|
|
| 353. |
2.403-00123
|
[1] |
GEAR;DRIVE
|
|
| 354. |
2.403-00130
|
[1] |
GEAR;DRIVEN
|
|
| 355. |
2.471-00004
|
[1] |
FILTER
|
|
| 361. |
1.402-00019
|
[1] |
CASE;FRONT
|
|
| 433. |
2.181-00089
|
[2] |
SOCKET;FLANGE
|
|
| 434. |
2.181-00090
|
[2] |
SOCKET;FLANGE
|
|
| 435. |
1.229-00035
|
[4] |
SOCKET;FLANGE
|
|
| 466. |
2181-1950D1
|
[1] |
PLUG
|
|
| 700. |
2.115-00119
|
[1] |
RING
|
|
| 710. |
S8010955
|
[1] |
O-RING
|
|
| 725. |
S8000111
|
[1] |
O-RING
|
|
| 732. |
S8000161
|
[1] |
O-RING
|
|
| 850. |
S6510180
|
[1] |
RING;SNAP
|
|
| 887. |
1.123-00040
|
[2] |
PIN
|
|
