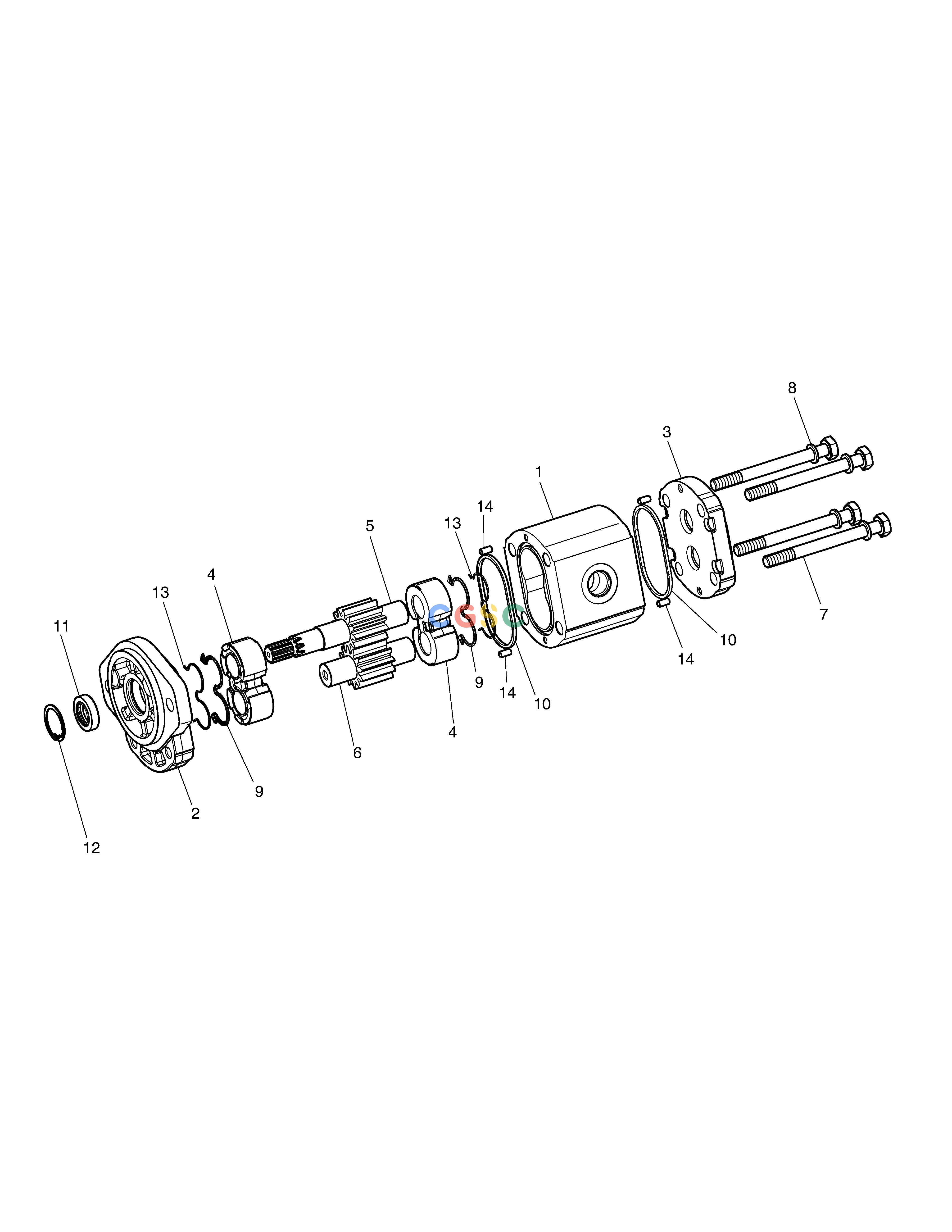

斗山零件查询GEAR PUMP-ROTATION DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001457
|
[1] |
SEAL KIT;GEAR PUMP
|
|
| -. |
401-00434
|
[1] |
PUMP;GEAR
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
NA01076
|
[2] |
SEAL
|
|
| 11. |
NA01099
|
[1] |
SEAL;SHAFT
|
|
| 12. |
NA00982
|
[1] |
. HEAD
|
|
| 13. |
NA00940
|
[2] |
BAGUE,SAUVEGARDER
|
|
| 14. |
NA00766
|
[4] |
|
|
| 2. |
NA00400
|
[1] |
|
|
| 3. |
NA00404
|
[1] |
|
|
| 4. |
NA00838
|
[2] |
|
|
| 5. |
NA01127
|
[1] |
|
|
| 6. |
NA00488
|
[1] |
|
|
| 7. |
S0559753
|
[4] |
BOLT M10X1.5X110
|
|
| 8. |
S5102603
|
[4] |
. WASHER
|
|
| 9. |
NA01076
|
[2] |
SEAL
|
|
