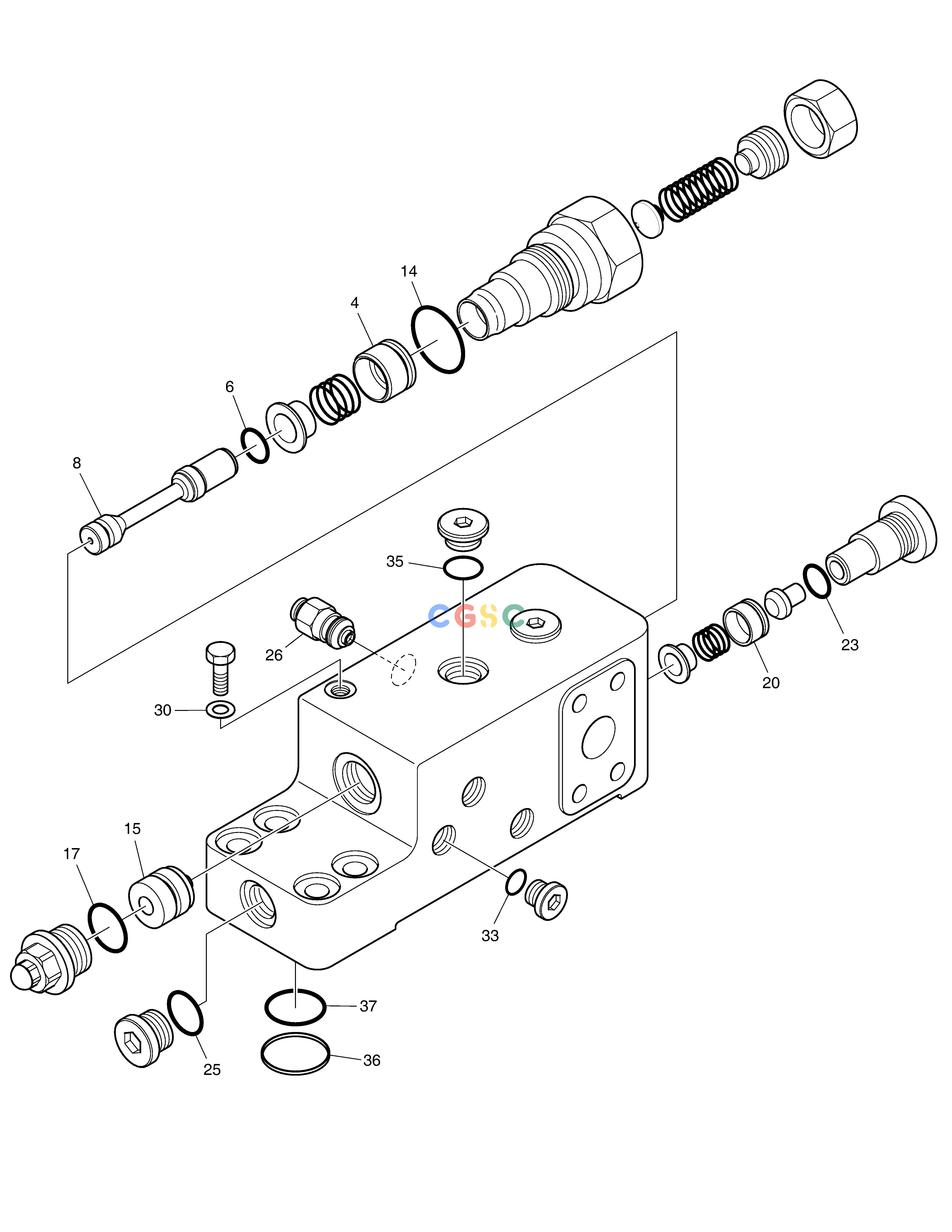

斗山零件查询LOCK VALVE - BOOM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
462 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00615
|
[1] |
|
|
| -. |
410114-00081
|
[1] |
|
|
| -. |
410114-00082
|
[1] |
|
|
| 14. |
2180-1217D108
|
[1] |
|
|
| 15. |
130602-00815
|
[1] |
|
|
| 17. |
2180-1217D56
|
[1] |
O-RING
|
|
| 20. |
410207-00132
|
[1] |
|
|
| 23. |
NA00643
|
[1] |
. O-RING
|
|
| 25. |
180-00398
|
[1] |
O-RING
|
|
| 26. |
410127-00074
|
[1] |
|
|
| 30. |
NA01096
|
[1] |
|
|
| 33. |
S8000111
|
[6] |
O-RING
|
|
| 35. |
S8000161
|
[2] |
O-RING
|
|
| 36. |
NA00940
|
[1] |
BAGUE,SAUVEGARDER
|
|
| 37. |
2180-1026D19
|
[1] |
O-RING
|
|
| 4. |
410207-00130
|
[1] |
|
|
| 6. |
2180-1217D50
|
[1] |
O-RING
|
|
| 8. |
410207-00310
|
[1] |
|
|
