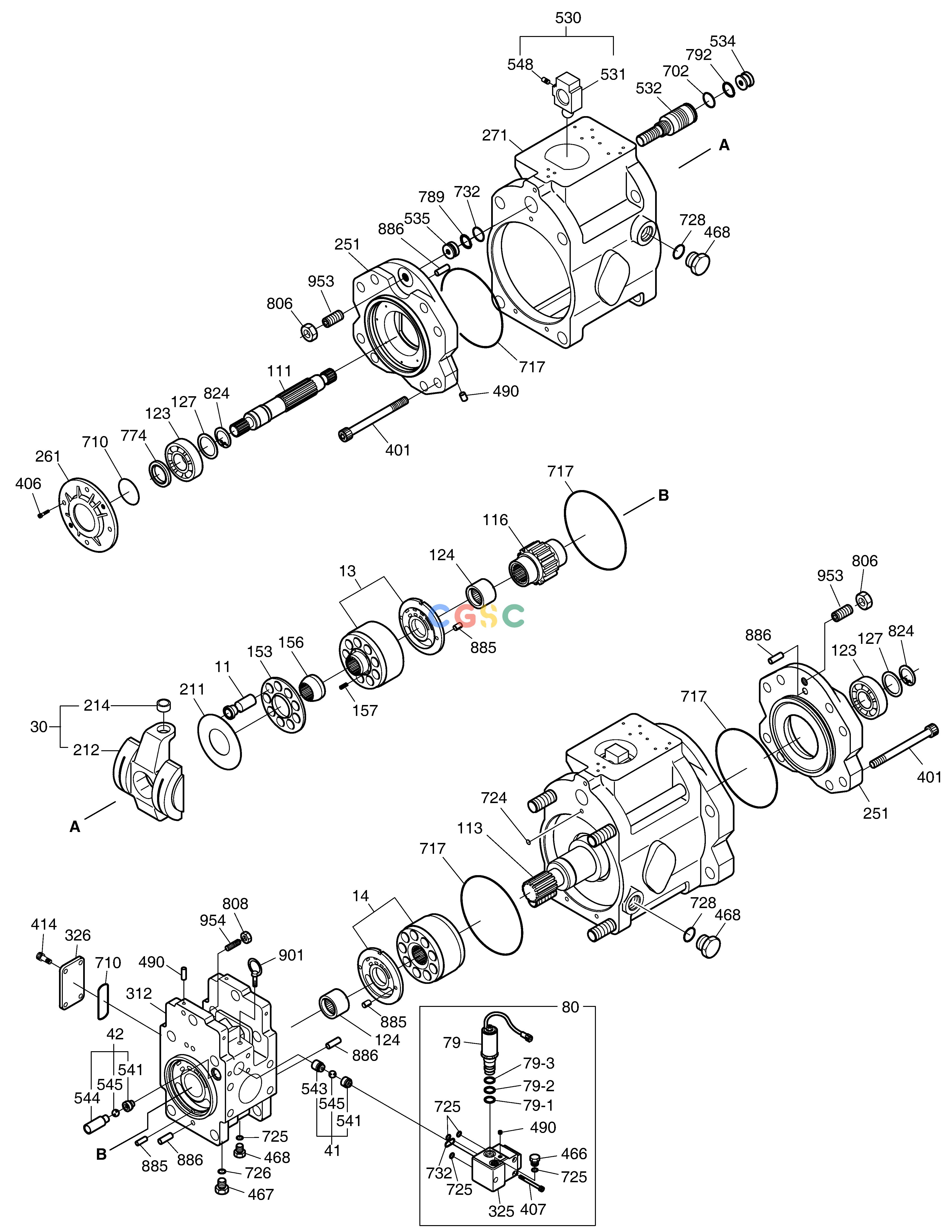

斗山零件查询MAIN PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-02157
|
[1] |
|
|
| -. |
400914-00395A
|
[1] |
|
|
| 11. |
K9006418
|
[2] |
PISTON
|
|
| 111. |
1.405-00055
|
[1] |
SHAFT;DRIVE(F)
|
|
| 113. |
1.405-00057
|
[1] |
SHAFT;DRIVE(R)
|
|
| 116. |
1.403-00004
|
[1] |
GEAR;1st
|
|
| 123. |
1.109-00111
|
[2] |
PALIER
|
|
| 124. |
1.109-00055
|
[2] |
BEARING;NEEDLE
|
|
| 127. |
2.109-00228
|
[3] |
BAGUE D'ECARTEMENT
|
|
| 13. |
K9006419
|
[1] |
CYLINDER ASS'Y(R)
|
|
| 14. |
K9006420
|
[1] |
CYLINDER ASS'Y(L)
|
|
| 153. |
1.412-00098
|
[2] |
PLAQUE
|
|
| 156. |
1.110-00101
|
[2] |
BAGUE
|
|
| 157. |
1.131-00131
|
[18] |
RESSORT
|
|
| 211. |
1.412-00110
|
[2] |
PLAQUE
|
|
| 212. |
K9001177
|
[1] |
PLATE;SWASH
|
|
| 214. |
2.408-00088
|
[1] |
BUSH;TILTING
|
|
| 251. |
K9001180
|
[2] |
SUPPORT
|
|
| 261. |
1.430-00213
|
[1] |
COVER;SEAL(F)
|
|
| 271. |
K9005964
|
[2] |
CASING;PUMP
|
|
| 30. |
K9001176
|
[2] |
SWASH PLATE ASS'Y
|
|
| 312. |
K9001181
|
[1] |
BLOCK;VALVE
|
|
| 325. |
1.402-00097
|
[1] |
CASING;VALVE
|
|
| 326. |
K9001182
|
[1] |
COVER;SEAL(F)
|
|
| 401. |
S2229071
|
[8] |
BOLT;SOCKET
|
|
| 406. |
S2208871
|
[4] |
BOLT;SOCKET
|
|
| 407. |
S2205861
|
[3] |
SCREW
|
|
| 41. |
K9001183
|
[2] |
CHECK VALVE ASS'Y(1)
|
|
| 414. |
S2211861
|
[4] |
BOLT;SOCKET M10X1.5X20
|
|
| 42. |
K9001186
|
[2] |
CHECK VALVE ASS'Y(2)
|
|
| 466. |
2181-1950D1
|
[3] |
PLUG
|
|
| 467. |
2181-1950D2
|
[2] |
PLUG
|
|
| 468. |
2181-1950D5
|
[4] |
PLUG PF3/4
|
|
| 490. |
2.181-00214
|
[35] |
PRISE
|
|
| 530. |
1.123-00089
|
[2] |
TILTING PIN ASS'Y
|
|
| 531. |
1.123-00090
|
[1] |
PIN;TILTING
|
|
| 532. |
1.409-00209
|
[2] |
PISTON
|
|
| 534. |
1.416-00020
|
[2] |
STOPPER(L)
|
|
| 535. |
1.416-00021
|
[2] |
STOPPER(S)
|
|
| 541. |
K9001184
|
[4] |
SEAT
|
|
| 543. |
K9001185
|
[2] |
STOPPER;1
|
|
| 544. |
K9001187
|
[2] |
STOPPER;1
|
|
| 545. |
S6250132
|
[4] |
BALL;STEEL
|
|
| 548. |
2.123-00154
|
[1] |
PIN;FEED BACK
|
|
| 702. |
S8010355
|
[2] |
O-RING
|
|
| 710. |
S8010955
|
[2] |
O-RING
|
|
| 717. |
S8011455
|
[4] |
O-RING
|
|
| 724. |
401003-00823
|
[16] |
|
|
| 725. |
S8000115
|
[8] |
.. O-RING
|
|
| 726. |
S8000145
|
[2] |
O-RING 1BP14
|
|
| 728. |
S8000245
|
[4] |
O-RING
|
|
| 732. |
S8000185
|
[3] |
. O-RING
|
|
| 774. |
401106-00108
|
[1] |
|
|
| 789. |
S8060181
|
[2] |
. RING;BACKUP
|
|
| 79. |
K9001179
|
[1] |
E.P.P.R VALVE
|
|
| 79-1. |
2180-1217D13
|
[1] |
. O-RING
|
|
| 79-2. |
2180-1217D14
|
[1] |
O-RING
|
|
| 79-3. |
2180-1217D15
|
[1] |
. O-RING
|
|
| 792. |
S8090350
|
[2] |
RING;BACK-UP
|
|
| 80. |
K9001178
|
[1] |
PROPORTIONAL REDUCING VALVE
|
|
| 806. |
S4012931
|
[2] |
NUT
|
|
| 808. |
S4015130
|
[2] |
ECROU
|
|
| 824. |
S6500400
|
[2] |
RING,RETAINING
|
|
| 885. |
2.123-00067
|
[2] |
GOUJON
|
|
| 886. |
S5740870
|
[4] |
PIN,SPRING
|
|
| 901. |
S3140025
|
[2] |
BOLT,EYE
|
|
| 953. |
S3527906
|
[2] |
SCREW
|
|
| 954. |
1.120-00071
|
[2] |
SCREW
|
|
