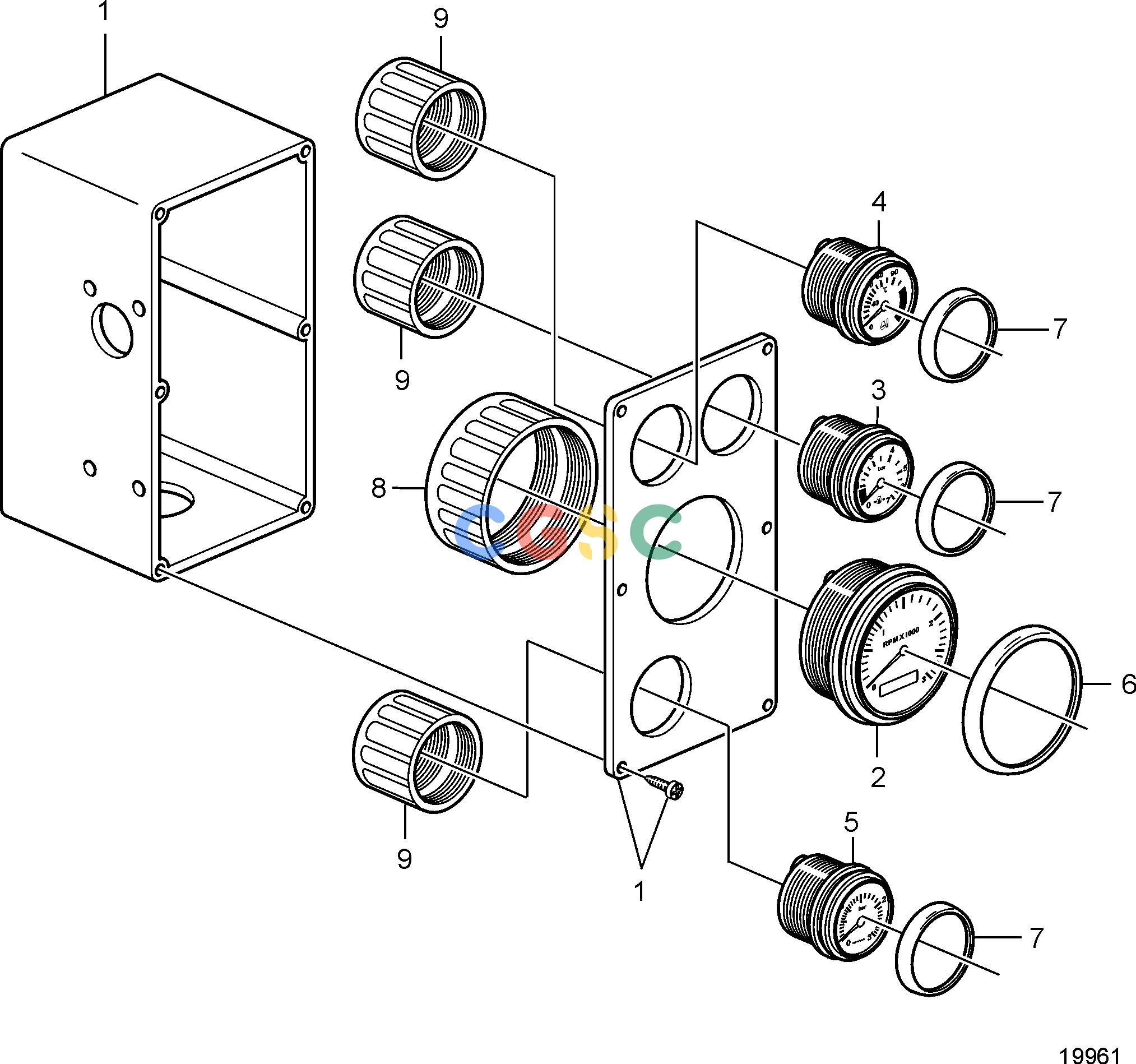

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemInstrument Panel 24V, Engine MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3837995
|
[1] |
Instrument casing
|
|
| 2. |
874903
|
[1] |
Tachometer
|
|
| 3. |
874908
|
[1] |
Oil pressure gauge
|
|
| 4. |
874904
|
[1] |
Thermometer
|
|
| 5. |
874911
|
[1] |
Pressure gauge, coolant water
|
|
| 6. |
874447
|
[1] |
Ring
|
D=85mm
|
| 7. |
874448
|
[3] |
Ring
|
D=52mm
|
| 8. |
874449
|
[1] |
Attaching ring
|
D=85mm
|
| 9. |
874450
|
[3] |
Attaching ring
|
D=52mm
|
