沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemInstrument Panel 24V. EDCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
235 次

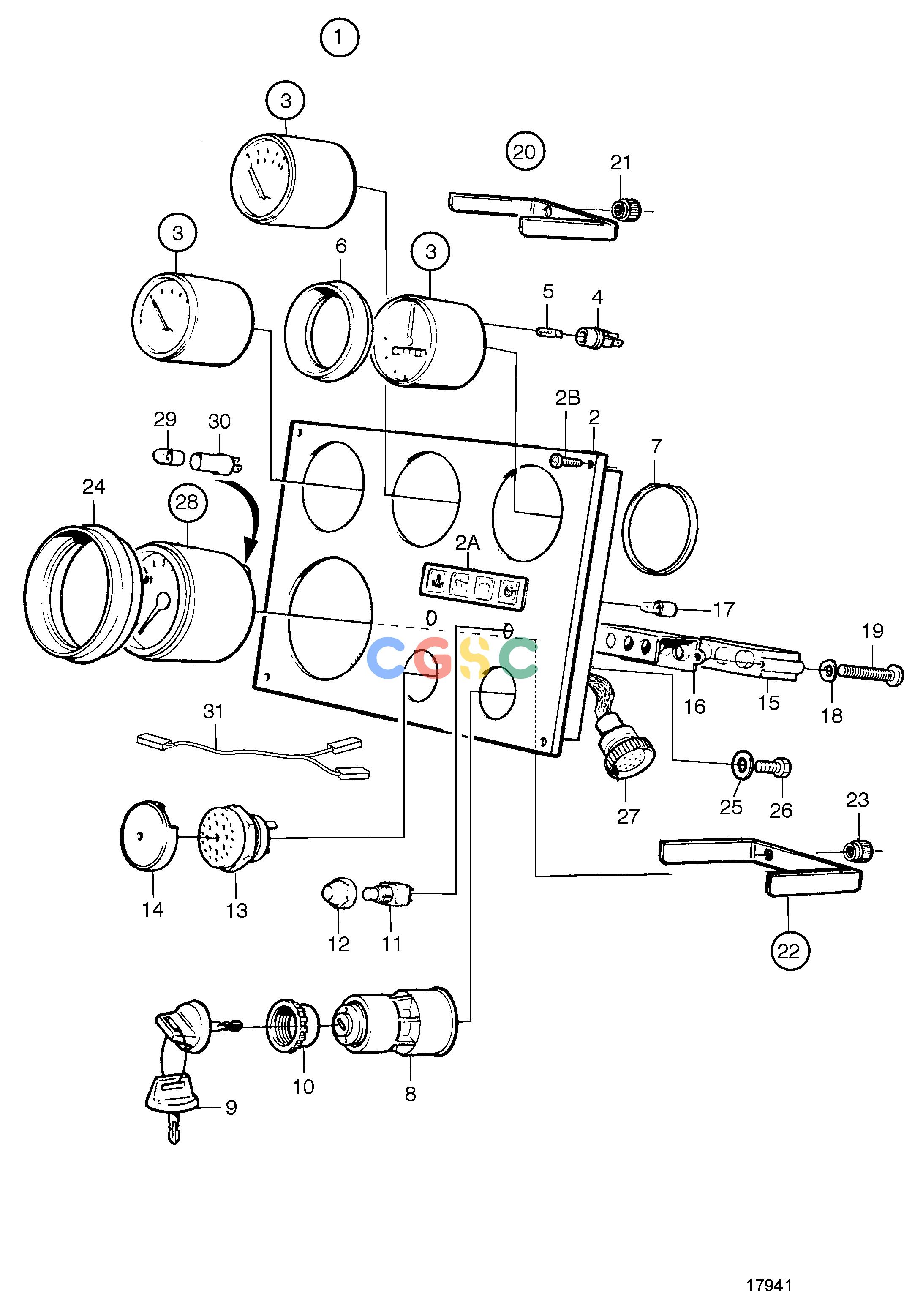

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587075
|
[1] |
Instrument panel
|
(873591)
|
| 2. |
860182
|
[1] |
Instrument panel
|
|
| 2A. |
858645
|
[1] |
Symbol strip
|
|
| 2B. |
828647
|
[4] |
Screw
|
|
| 3. |
873196
|
[1] |
Thermometer
|
|
| 3. |
873198
|
[1] |
Oil pressure gauge
|
|
| 3. |
873200
|
[1] |
Voltmeter
|
|
| 4. |
863945
|
[3] |
Bulb socket
|
|
| 5. |
863947
|
[3] |
Bulb
|
|
| 6. |
858643
|
[3] |
Front ring
|
D=52mm
|
| 7. |
828803
|
[3] |
Guide ring
|
|
| 8. |
3587072
|
[1] |
Starter switch
|
(864277)
|
| 9. |
859953
|
[2] |
Key
|
State key code when ordering
|
| 10. |
859955
|
[1] |
Plastic nut
|
|
| 11. |
828584
|
[1] |
Toggle switch
|
Test alarm
|
| 11. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 12. |
828586
|
[2] |
Nut
|
|
| 13. |
3817974
|
[1] |
Alarm
|
(828587)
|
| 14. |
858795
|
[1] |
Protecting casing
|
|
| 15. |
873737
|
[1] |
Electronic unit
|
(873209)
|
| 16. |
828784
|
[1] |
Reflector
|
|
| 17. |
828818
|
[4] |
Bulb
|
24V
|
| 18. |
941904
|
[2] |
Spring washer
|
|
| 19. |
941615
|
[2] |
Cross recessed screw
|
|
| 20. |
873207
|
[3] |
Brace kit
|
|
| 21. |
|
|
|
|
| 22. |
873208
|
[1] |
Brace kit
|
|
| 23. |
|
|
|
|
| 24. |
873517
|
[1] |
Ring
|
D=72mm
|
| 25. |
941904
|
[1] |
Spring washer
|
|
| 26. |
949947
|
[1] |
Cross recessed screw
|
|
| 27. |
828646
|
[1] |
Cable block
|
|
| 28. |
874496
|
[1] |
Tachometer kit
|
2600 rpm, (873995)
|
| 29. |
863947
|
[1] |
Bulb
|
24V, 1,2W
|
| 30. |
863945
|
[1] |
Bulb socket
|
|
| 31. |
|
|
|
|
