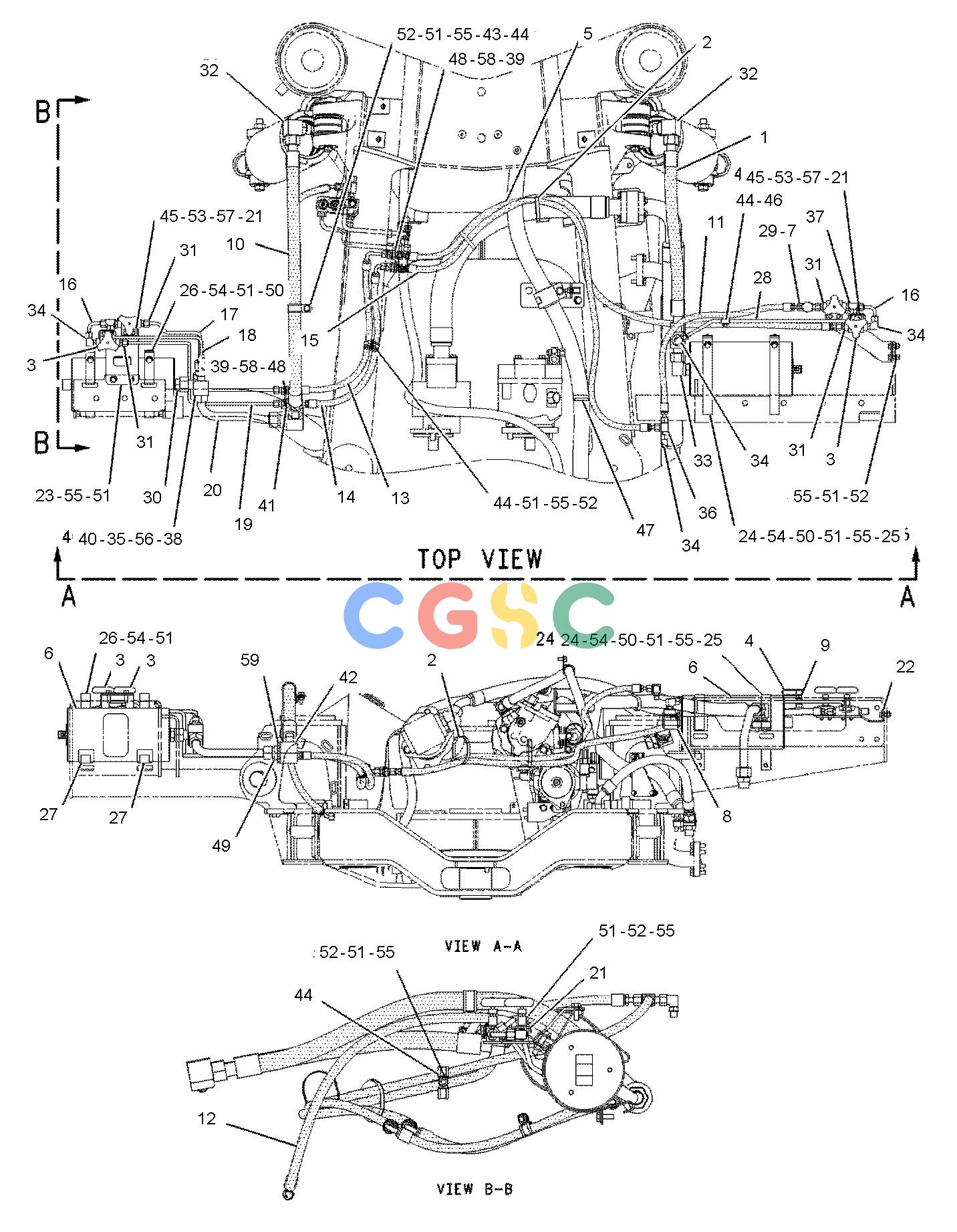

卡特零件查询（725） 168-6867: LINES GP-SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2T-2224I | [1] | HOSE AS | |
| 2. | 6U-0456 | [2] | STRAP | |
| 3. | 7U-9988 | [4] | VALVE GP-CONTROL | |
| 4. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 5. | 134-4544I | [1] | HOSE AS | |
| 6. | 137-1880Y | [2] | ACCUMULATOR GP-HYDRAULIC | |
| 7. | 148-8424 | [1] | TEE AS | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 8. | 148-8425 | [1] | TEE AS | |
| | 8T-4834 | [1] | TEE-SWIVEL-ORFS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 9. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING | |
| | 8C-3446 | [1] | VALVE-SAMPLING | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 10. | 167-3925I | [1] | HOSE AS | |
| 11. | 169-4961I | [1] | HOSE AS | |
| 12. | 184-6689I | [1] | HOSE AS | |
| 13. | 184-6690I | [1] | HOSE AS | |
| 14. | 184-6691I | [1] | HOSE AS | |
| 15. | 184-6693I | [1] | HOSE AS | |
| 16. | 184-6701 | [2] | TUBE AS | |
| 17. | 184-6702 | [1] | TUBE AS | |
| 18. | 184-6703 | [1] | TUBE AS | |
| 19. | 184-6704 | [1] | TUBE AS | |
| 20. | 184-6707 | [1] | TUBE AS | |
| 21. | 184-6708 | [4] | BRACKET | |
| 22. | 186-4066 | [1] | BRACKET | |
| 23. | 186-4067 | [1] | BRACKET | |
| 24. | 187-0941 | [2] | CLAMP | |
| 25. | 187-0942 | [2] | CLAMP | |
| 26. | 187-0943 | [2] | CLAMP | |
| 27. | 187-0944 | [2] | CLAMP | |
| 28. | 187-4238 | [1] | TUBE AS | |
| 29. | 148-8305 | [1] | ADAPTER AS | |
| | 5P-9617 | [1] | ADAPTER | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 30. | 148-8317 | [1] | CONNECTOR AS | |
| | 6V-8714 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 31. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 32. | 148-8357 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9008 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 33. | 148-8362 | [1] | ELBOW AS | |
| | 8T-6684 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 34. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW(90 DEGREE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 35. | 148-8417 | [1] | REDUCER AS | |
| | 6V-8941 | [1] | REDUCER | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 36. | 148-8433 | [1] | TEE AS | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 37. | 148-8435 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8781 | [1] | TEE | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 38. | 148-8445 | [1] | TEE AS | |
| | 6V-9847 | [1] | TEE-SWIVEL | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| 39. | 149-5452 | [3] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 40. | 153-6236 | [1] | REDUCER AS | |
| | 6V-8946 | [1] | REDUCER | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 41. | 153-6246 | [1] | TEE AS | |
| | 7X-0820 | [1] | TEE | |
| | 6V-8397 | [3] | SEAL-O-RING | |
| 42. | 164-5577 | [1] | ELBOW AS | |
| | 6V-8984 | [1] | ELBOW | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| 43. | 053-0558 | [1] | CLIP | |
| 44. | 3U-2753 | [7] | CLIP | |
| 45. | 5C-2890M | [8] | NUT(M6X1-THD) | |
| 46. | 5P-9297 | [1] | CLIP(LOOP) | |
| 47. | 6U-0455 | [1] | STRAP | |
| 48. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 49. | 6V-9172 | [1] | NUT(1-7/16-12-THD) | |
| 50. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 51. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 52. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 53. | 8T-4138M | [8] | BOLT(M6X1X20-MM) | |
| 54. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 55. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 56. | 9X-6580 | [1] | NUT(1-3/16-12-THD) | |
| 57. | 9X-8256 | [16] | WASHER(6.6X12X2-MM THK) | |
| 58. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 59. | 9X-8259 | [1] | WASHER(39X66X6-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
