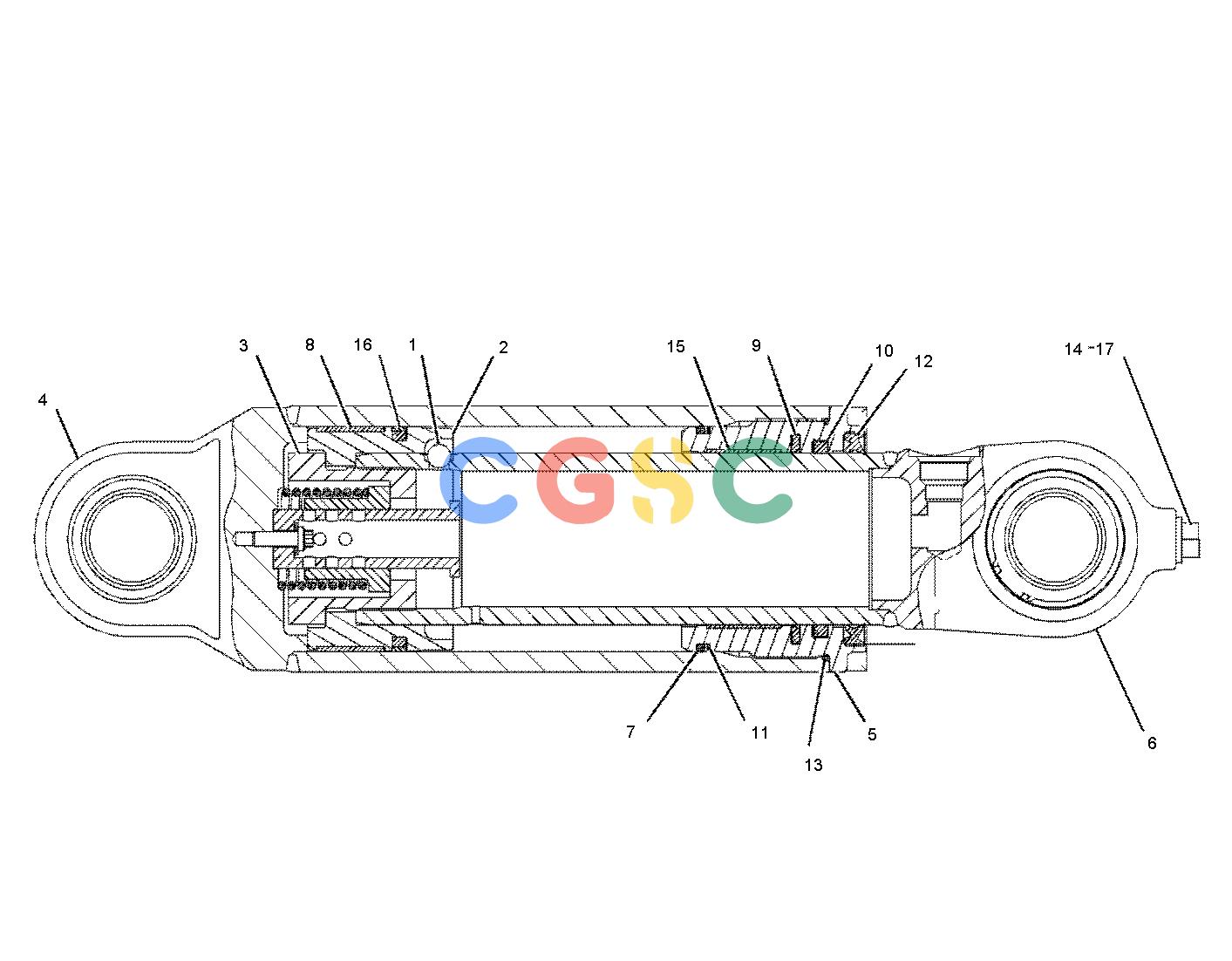

卡特零件查询（725） 146-8928: CYLINDER GP-SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-9786 | [2] | BALL | |
| 2. | 141-1819 | [1] | PISTON | |
| 3. | 142-6219 | [1] | RETAINER | |
| 4. | 146-8929 | [1] | CYLINDER AS | |
| | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| | 136-4183M | [1] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| | 6V-5003 | [1] | BEARING | |
| | 8C-3229 | [1] | RING-RETAINING | |
| 5. | 146-8931 | [1] | HEAD | |
| 6. | 146-8932 | [1] | ROD AS | |
| | 6V-5003 | [1] | BEARING | |
| | 8C-3229 | [1] | RING-RETAINING | |
| 7. | 095-1633J | [1] | SEAL-O-RING | |
| 8. | 116-3589J | [1] | RING | |
| 9. | 167-2220J | [1] | SEAL AS-BUFFER | |
| 10. | 167-2336J | [1] | SEAL-U-CUP | |
| 11. | 198-2643J | [1] | RING-BACKUP | |
| 12. | 225-3289J | [1] | SEAL-WIPER | |
| 13. | 8F-8733J | [1] | SEAL-O-RING | |
| 14. | 8T-4190M | [1] | BOLT(M16X2X25-MM) | |
| 15. | 9X-3579J | [1] | RING-WEAR | |
| 16. | 9X-3601J | [1] | SEAL AS | |
| 17. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 416-0092J | [1] | KIT-HYD CYLINDER SEAL | |
| | | | (KIT INCLUDES RINGS & SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
