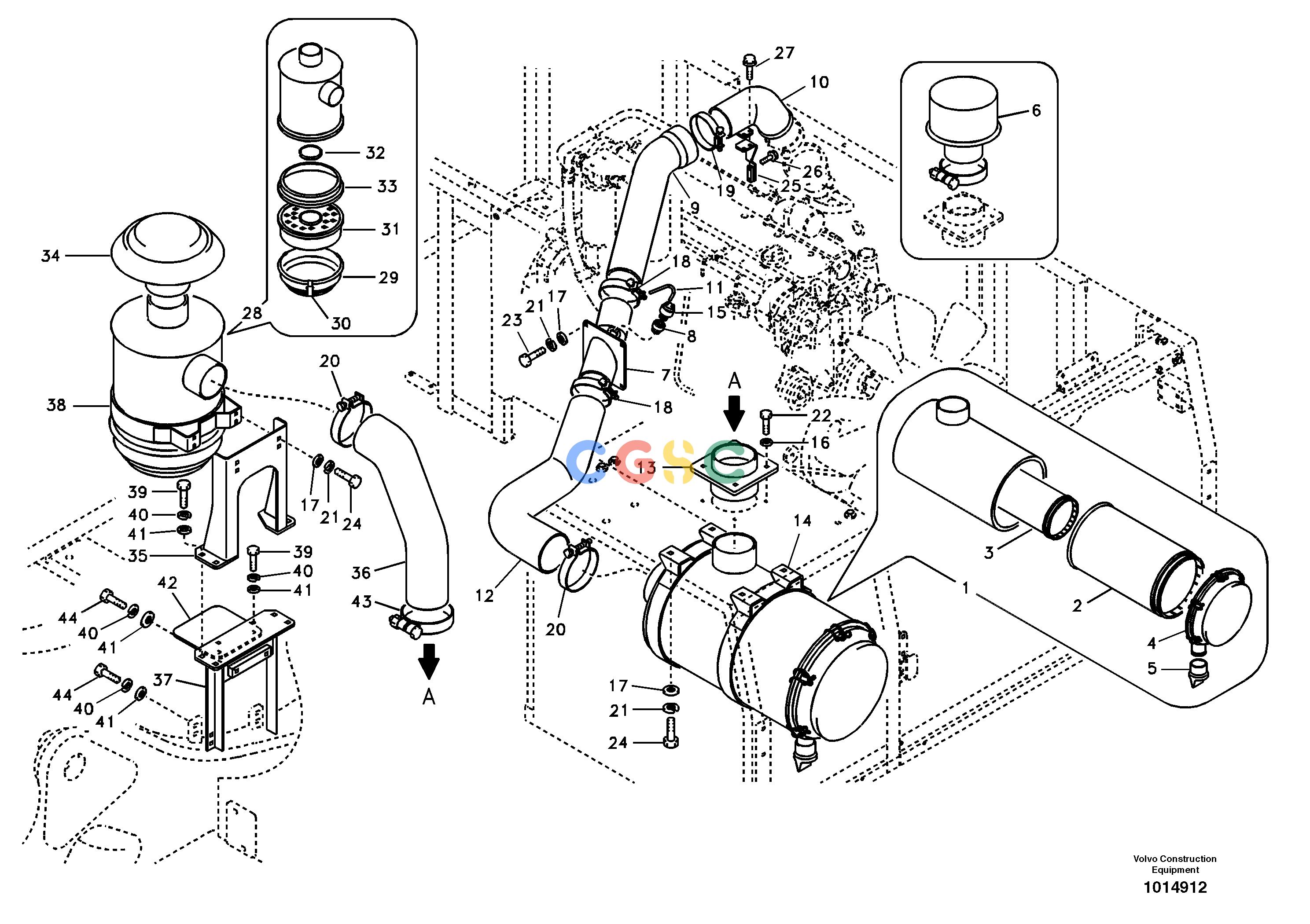

沃尔沃零件查询EC240B Inlet systemNone8277587-8279068 S/N 10911-VOE8277587NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14509449
|
[1] |
Air cleaner
|
|
| 2. |
VOE11110022
|
[1] |
Air filter
|
|
| 3. |
VOE11110023
|
[1] |
Safety filter
|
|
| 4. |
VOE14513672
|
[1] |
Cover
|
|
| 5. |
VOE11701952
|
[1] |
Valve
|
|
| 6. |
SA1113-01050
|
[1] |
Pre-cleaner
|
SER NO 10001-10910
|
| |
SA1113-01050
|
|
Pre-cleaner
|
SER NO 10911-11350
SER NO 30001-30090
|
| |
VOE14526930
|
|
Pre-cleaner
|
SER NO 11351-
SER NO 30091-
|
| |
VOE14881077
|
|
Pre-cleaner
|
|
| |
VOE14881080
|
|
Clamp
|
|
| 7. |
VOE14598179
|
[1] |
Tube
|
|
| 8. |
VOE14506431
|
[1] |
Connecting bellows
|
|
| 9. |
VOE14506558
|
[1] |
Hose
|
|
| 10. |
VOE14516974
|
[1] |
Tube
|
|
| 11. |
VOE14508224
|
[1] |
Hose
|
|
| 12. |
VOE14509443
|
[1] |
Hose
|
|
| 13. |
VOE14509446
|
[1] |
Air duct
|
|
| 14. |
SA2013-00510
|
[2] |
Clamp
|
|
| 15. |
VOE22996282
|
[1] |
Vacuum switch
|
SER NO 10001-12767
|
| |
VOE22996282
|
[1] |
Vacuum switch
|
SER NO 12768-
|
| 16. |
VOE993835
|
[4] |
Plain washer
|
|
| 17. |
VOE992040
|
[8] |
Plain washer
|
|
| 18. |
VOE14883778
|
[2] |
Hose clamp
|
|
| 19. |
SA9312-10500
|
[1] |
Hose clamp
|
|
| 20. |
VOE14883780
|
[1] |
Hose clamp
|
|
| 21. |
VOE955922
|
[8] |
Spring washer
|
|
| 22. |
VOE983242
|
[4] |
Hexagon screw
|
|
| 23. |
VOE983251
|
[4] |
Hexagon screw
|
|
| 24. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 25. |
VOE14516943
|
[1] |
Bracket
|
SER NO 10001-10851
|
| 26. |
VOE60113082
|
[2] |
Flange screw
|
SER NO 10001-10851
|
| 27. |
VOE946173
|
[2] |
Flange screw
|
|
| 28. |
VOE4880805
|
|
Air filter
|
|
| 29. |
VOE6212135
|
|
Oil reservoir
|
|
| 30. |
VOE6212135
|
|
Oil reservoir
|
|
| 31. |
VOE6212136
|
|
Insert
|
|
| 32. |
VOE6212282
|
|
Sealing ring
|
|
| 33. |
VOE6212283
|
|
Sealing ring
|
|
| 34. |
VOE11707307
|
|
Cover
|
|
| 35. |
VOE14520264
|
|
Bracket
|
|
| 36. |
VOE14520267
|
|
Hose
|
|
| 37. |
VOE14520268
|
|
Bracket
|
|
| 38. |
VOE14520263
|
|
Clamp
|
|
| 39. |
VOE978933
|
|
Hexagon screw
|
|
| 40. |
VOE955923
|
|
Spring washer
|
|
| 41. |
VOE992042
|
|
Plain washer
|
|
| 42. |
VOE14512892
|
|
Plate
|
|
| 43. |
SA9313-10475
|
|
Hose clamp
|
|
| 44. |
VOE978933
|
|
Hexagon screw
|
SER NO 10911-11332
SER NO 30001-30075
|
| |
VOE978934
|
|
Hexagon screw
|
SER NO 11333-
SER NO 30076-
|
