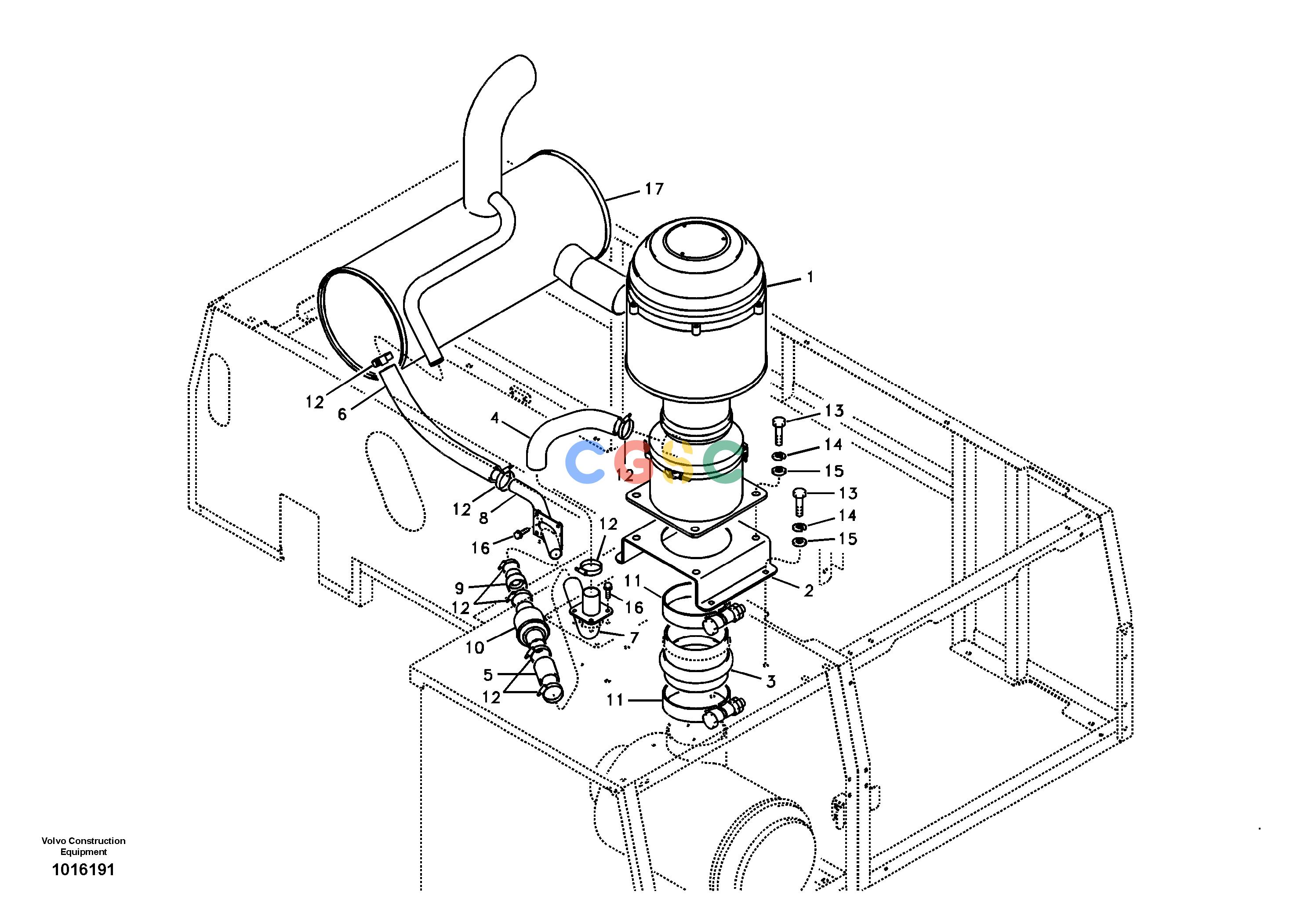

沃尔沃零件查询EC240B Inlet system, pre-cleanerNone8279512 S/N 12449--NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
534 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11417477
|
[1] |
Primary filter
|
|
| 2. |
VOE14531187
|
[1] |
Bracket
|
|
| 3. |
VOE11417480
|
[1] |
Adapter
|
|
| 4. |
VOE14533112
|
[1] |
Hose
|
|
| 5. |
VOE14533229
|
[1] |
Hose
|
|
| 6. |
VOE14533227
|
[1] |
Hose
|
|
| 7. |
VOE14531491
|
[1] |
Pipe
|
|
| 8. |
VOE14531493
|
[1] |
Pipe
|
|
| 9. |
VOE14533226
|
[1] |
Adapter
|
|
| 10. |
VOE11417482
|
[1] |
Non-return valve
|
|
| 11. |
SA9313-10625
|
[2] |
Hose clamp
|
|
| 12. |
VOE11109241
|
[8] |
Clamp
|
|
| 13. |
VOE983251
|
[8] |
Hexagon screw
|
|
| 14. |
VOE955922
|
[8] |
Spring washer
|
|
| 15. |
VOE992040
|
[8] |
Plain washer
|
|
| 16. |
VOE946471
|
[8] |
Flange screw
|
|
| 17. |
VOE14533382
|
[1] |
Muffler
|
|
