神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (03-002) - INJECTION PUMP, INNER PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
718 次

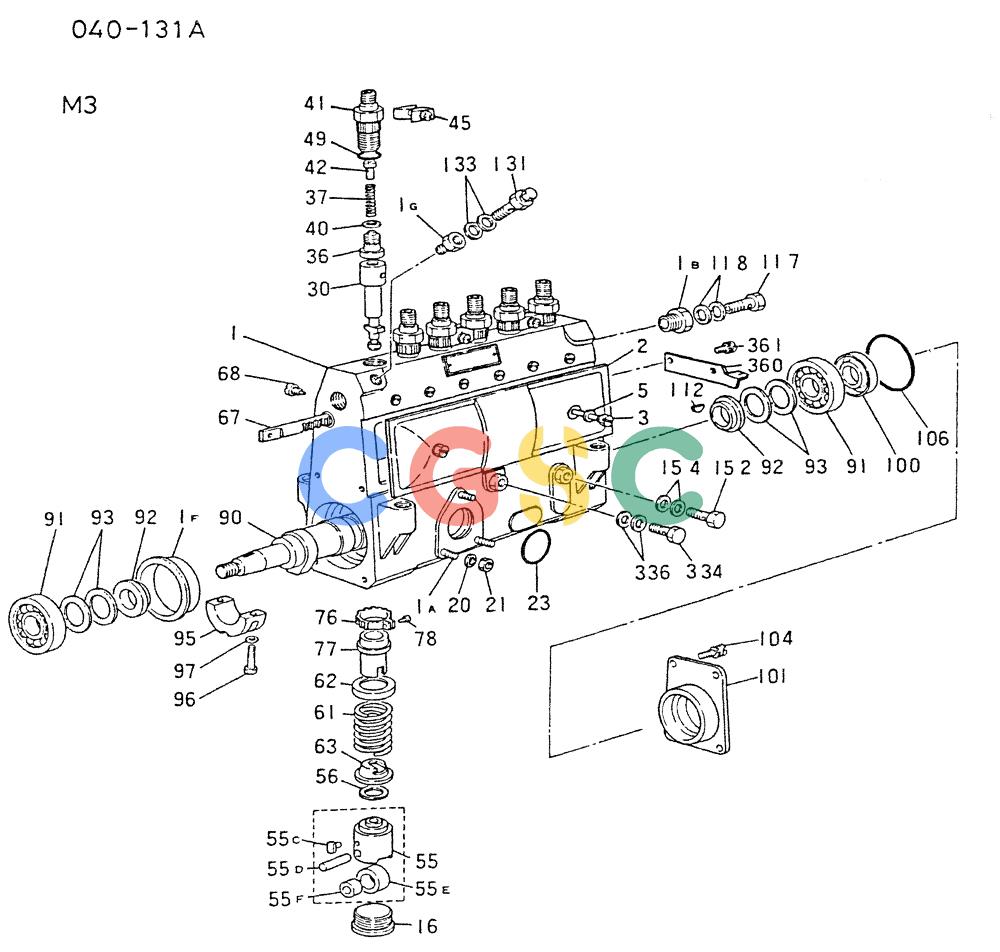

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CZ-KS09 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CZ-KS07 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CZ-KS04 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CZ-KS01 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CT-KS03 | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| . . | 6D221CZ-KS0A | [1] | INJECTION PUMP (INNER PARTS)(M3) | |
| 1-361. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY AD TYPE |
| 1. | VA31075462 | [1] | HOUSING, PUMP | |
| 1A. | VA29040602 | [3] | STUD | STUD |
| 1B. | VA31400010 | [1] | ADAPTER | ADAPTER |
| 1F. | VA31311000 | [1] | RING | RING |
| 1G. | VA31002500 | [1] | ADAPTER | |
| 2. | VA31028542 | [1] | COVER | |
| 3. | VA31017100 | [2] | COVER | KOB |
| 5. | VA29340602 | [2] | GASKET | KOB |
| 16. | VA31034150 | [6] | SCREW PLUG | SCREW PLUG |
| 20. | VA14110644 | [3] | WASHER, SPRING | |
| 21. | VA13020604 | [3] | NUT | |
| 23. | VA29633101 | [1] | O-RING | KOB Superseded by part number: VAME705152 |
| 30. | VA31151272 | [6] | PLUNGER | PLUNGER |
| 36. | VA31110882 | [6] | DELIVERY VALVE | DELIVERY VALVE |
| 37. | VA31112260 | [6] | SPRING DELIVERY VALVE | SPRING DELIVERY VALVE |
| 40. | VA31115120 | [6] | GASKET DELIVERY VALVE | GASKET DELIVERY VALVE |
| 41. | VA31116490 | [6] | HOLDER DELIVERY VALVE | HOLDER DELIVERY VALVE |
| 42. | VA31117210 | [6] | STOPPER | STOPPER |
| 45. | VA31122052 | [3] | PLATE | KOB Superseded by part number: VA1311220520 |
| 49. | VA29632007 | [6] | O-RING | O-RING |
| 55-55F. | VA31200242 | [6] | TAPPET | KOBASSY Superseded by part number: VA1312002720 |
| 55. | NSS | [6] | NOT SOLD SEPARAT | CONTAPPET |
| 55C. | VA31206070 | [6] | GUIDE | |
| 55D. | VA31203050 | [6] | PIN | |
| 55E. | VA31204080 | [6] | ROLLER | |
| 55F. | VA31205040 | [6] | BUSHING | |
| 56. | VA29311002 | [1] | SHIM T=0.30 | SHIM T=0.30 |
| . . | VA29311003 | [1] | SHIM | KOBT=0.40 |
| . . | VA29311004 | [1] | SHIM T=0.50 | SHIM T=0.50 |
| . . | VA29311005 | [1] | SHIM, T=0.60 | |
| . . | VA29311006 | [1] | SHIM, T=0.70 | |
| . . | VA29311007 | [1] | SHIM, T=0.80 | |
| . . | VA29311008 | [1] | SHIM, T=0.90 | |
| . . | VA29311009 | [1] | SHIM, T=1.00 | |
| . . | VA29311011 | [1] | SHIM, T=1.10 | |
| . . | VA29311012 | [1] | SHIM | KOBT=1.20 |
| . . | VA29311013 | [1] | SHIM T=1.30 | SHIM T=1.30 |
| . . | VA29311014 | [1] | SHIM T=1.40 | SHIM T=1.40 |
| . . | VA29311027 | [1] | SHIM, T=0.55 | |
| . . | VA29311028 | [1] | SHIM, T=0.65 | |
| . . | VA29311029 | [1] | SHIM, T=0.75 | |
| . . | VA29311031 | [1] | SHIM T=0.85 | SHIM T=0.85 |
| . . | VA29311032 | [1] | SHIM T=0.95 | SHIM T=0.95 |
| . . | VA29311033 | [1] | SHIM T=1.05 | SHIM T=1.05 |
| . . | VA29311034 | [1] | SHIM, T=1.15 | |
| . . | VA29311035 | [1] | SHIM, T=1.25 | |
| . . | VA29311049 | [1] | SHIM, T=1.50 | |
| . . | VA29311050 | [1] | SHIM, T=1.60 | |
| . . | VA29311058 | [1] | SHIM T=0.20 | SHIM T=0.20 |
| . . | VA29311059 | [1] | SHIM T=0.25 | SHIM T=0.25 |
| . . | VA29311060 | [1] | SHIM, T=0.35 | |
| . . | VA29311061 | [1] | SHIM, T=0.45 | |
| . . | VA29311062 | [1] | SHIM, T=1.35 | |
| . . | VA29311063 | [1] | SHIM T=1.45 | SHIM T=1.45 |
| . . | VA29311071 | [1] | SHIM T=1.55 | SHIM T=1.55 |
| 61. | VA31215210 | [6] | SPRING | KOBPLUNGER |
| 62. | VA31216040 | [6] | PLUNGER SEAT, SPG UPPER | PLUNGER SEAT, SPG UPPER |
| 63. | VA31217060 | [6] | SEAT SPG LOWER | SEAT SPG LOWER |
| 67. | VA31256000 | [1] | RACK, CONTROL | |
| 68. | VA31226030 | [1] | SCREW | SCREW |
| 76. | VA31240010 | [6] | PINION | PINION |
| 77. | VA31241050 | [6] | SLEEVE CONTROL | SLEEVE CONTROL |
| 78. | VA31242010 | [6] | SCREW | SCREW |
| 90. | VA31376010 | [1] | CAMSHAFT | |
| 91. | VA16640203 | [2] | BEARING | BEARING |
| 92. | VA31302100 | [2] | RING | RING |
| 93. | VA29312022 | [1] | SHIM T=0.10 | SHIM T=0.10 |
| . . | VA29312023 | [1] | SHIM T=0.12 | SHIM T=0.12 |
| . . | VA29312024 | [1] | SHIM T=0.14 | SHIM T=0.14 |
| . . | VA29312025 | [1] | SHIM, T=0.16 | |
| . . | VA29312026 | [1] | SHIM, T=0.15 | |
| . . | VA29312027 | [1] | SHIM, T=0.50 | |
| . . | VA29312029 | [1] | SHIM, T=0.30 | |
| . . | VA29312030 | [1] | SHIM, T = 1.00 | |
| 95. | VA31305070 | [1] | BEARING, CTR | |
| 96. | VA39105020 | [2] | SCREW | |
| 97. | VA26505094 | [2] | GASKET | GASKET |
| 100. | VA29622019 | [1] | OIL SEAL | OIL SEAL |
| 101. | VA31316200 | [1] | COVER | COVER |
| 104. | VA20006144 | [1] | BOLT | BOLT |
| 106. | VA29635005 | [1] | O-RING | O-RING |
| 112. | VA25804161 | [1] | KEY WOODRUFF | KEY WOODRUFF |
| 117. | VA29731457 | [1] | BOLT EYE | BOLT EYE |
| 118. | VA29341413 | [2] | GASKET | GASKET |
| 131. | VA31424462 | [1] | VALVE, OVER FLOW | VALVE, OVER FLOW |
| 133. | VA29341413 | [2] | GASKET | GASKET |
| 152. | VA31456430 | [1] | BOLT | KOBEYE |
| 154. | VA26512154 | [2] | GASKET | GASKET |
| 334. | VA29731018 | [1] | BOLT,EYE | BOLT,EYE |
| 336. | VA26510134 | [2] | GASKET | KOB |
| 360. | VA31496030 | [1] | POINTER | KOB |
| 361. | VA29010668 | [1] | BOLT | BOLT |
