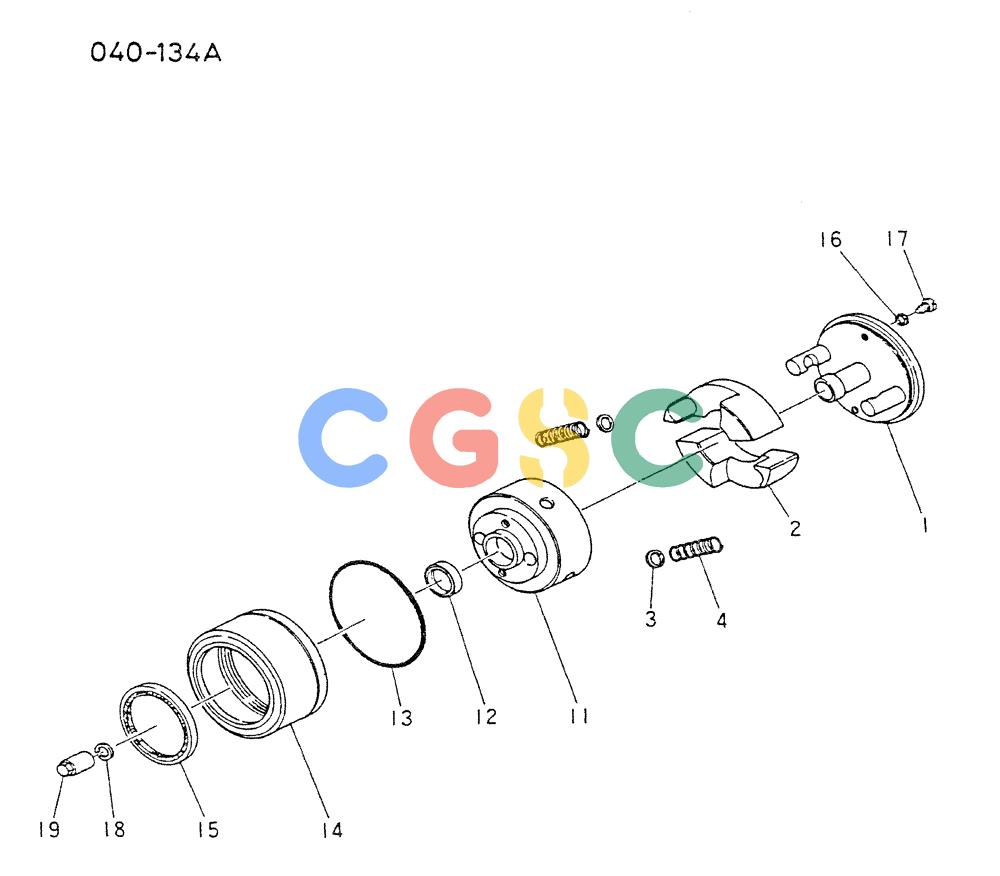

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (03-005) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS09 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS07 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS04 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS01 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CT-KS03 | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS0A | [1] | AUTOMATIC TIMER (INNER PARTS)(M0) | |
| 1-19. | VA3096100500 | [1] | TIMER | KOBASSEMBLY SA TYPE |
| 1. | VA56132922 | [1] | HOLDER, FLYWEIGHT | |
| 2. | VA56108580 | [2] | FLYWEIGHT | |
| 3. | VA29310901 | [1] | SHIM, T=0.50 | |
| . . | VA29310902 | [1] | SHIM, T=1.00 | |
| . . | VA29310903 | [1] | SHIM, T=0.10 | |
| . . | VA29310904 | [1] | SHIM, T=0.20 | |
| . . | VA29310905 | [1] | SHIM, T=1.50 | |
| 4. | VA56104910 | [2] | SPRING, TIMER | |
| 11. | VA56130392 | [1] | FLANGE | |
| 12. | VA29622801 | [1] | OIL SEAL | KOB Superseded by part number: VAME717745 |
| 13. | VA56117010 | [1] | O-RING | KOB Superseded by part number: VA1561170100 |
| 14. | VA56114150 | [1] | CASE | |
| 15. | VA56116212 | [1] | OIL SEAL | OIL SEAL |
| 16. | VA29340801 | [2] | GASKET | |
| 17. | VA56115010 | [2] | PLUG | |
| 18. | VA29321401 | [1] | WASHER, SPG | |
| 19. | VA31325040 | [1] | NUT | |
