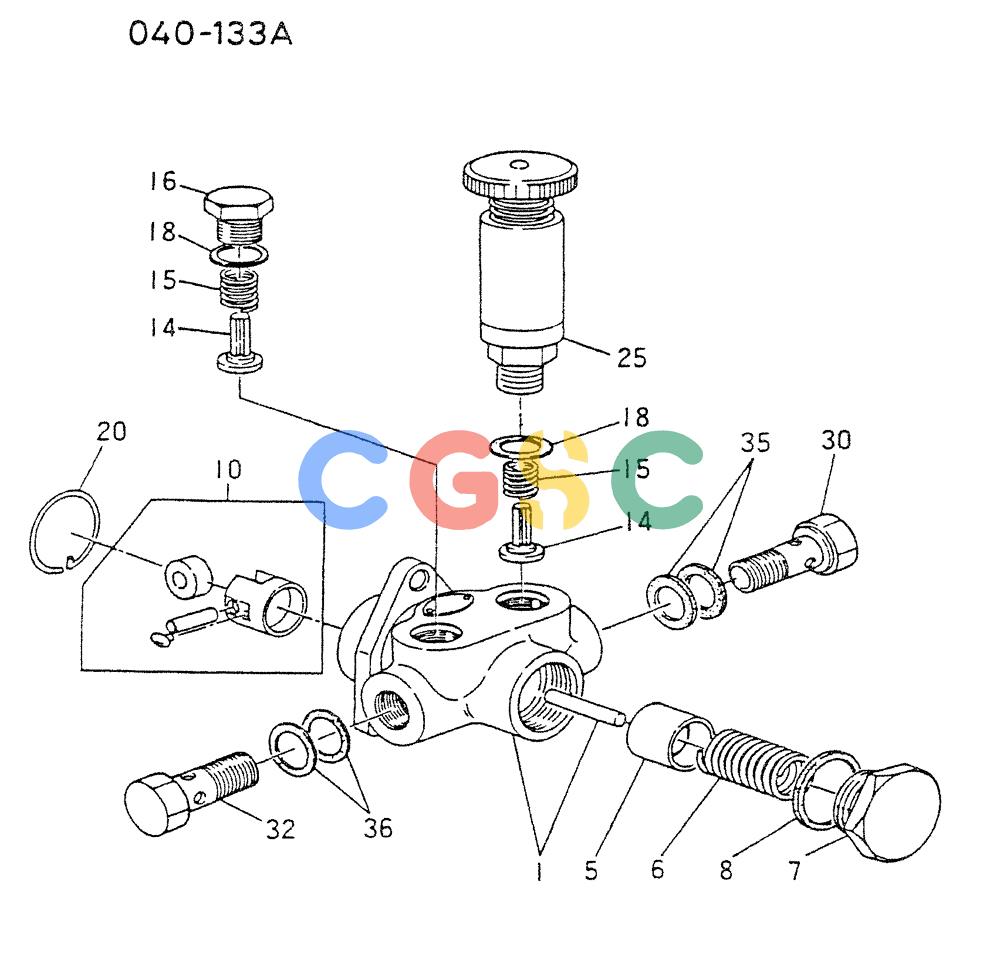

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (03-004) - FUEL FEED, PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
901 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS09 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS07 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS04 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS01 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CT-KS03 | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| . . | 6D221CZ-KS0A | [1] | FUEL FEED PUMP (INNER PARTS)(M0) | |
| 1-36. | VAME056098 | [1] | ENGINE OIL PUMP | KOBFUEL FEED ASSY KE TYPE |
| 1. | VA52004092 | [1] | HOUSING FEE PUMP | HOUSING FEE PUMP |
| 5. | VA52100112 | [1] | MANIFOLD PISTON | MANIFOLD PISTON |
| 6. | VA52102040 | [1] | SPRING, PISTON | SPRING, PISTON |
| 7. | VA52105020 | [1] | PLUG | |
| 8. | VA29332603 | [1] | GASKET | GASKET |
| 10. | VA52111292 | [1] | TAPPET ASSY | TAPPET ASSY |
| 14. | VA52115020 | [2] | VALVE | VALVE |
| 15. | VA52116020 | [2] | SPRING | SPRING |
| 16. | VA52117010 | [1] | PLUG | PLUG |
| 16. | VA29331603 | [2] | GASKET | GASKET |
| 20. | VA52121020 | [1] | RING, SNAP | |
| 25. | VA52200112 | [1] | PUMP,PRIMING | PUMP,PRIMING |
| 30. | VA52300712 | [1] | BOLT, EYE | BOLT, EYE |
| 32. | VA29731457 | [1] | BOLT EYE | BOLT EYE |
| 35. | VA29341413 | [2] | GASKET | GASKET |
| 36. | VA29341413 | [2] | GASKET | GASKET |
