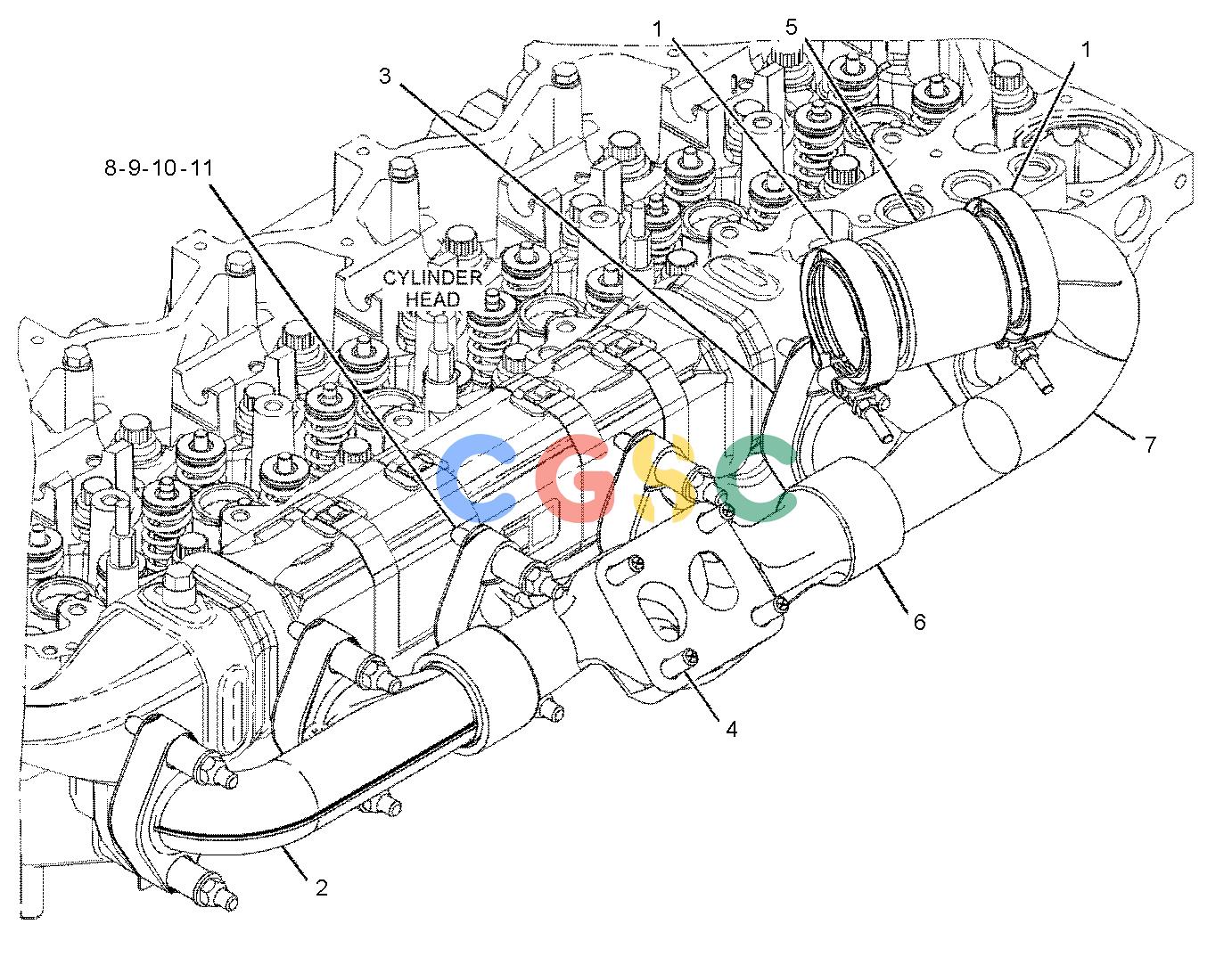

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9N-5085 | [2] | CLAMP | |
| 2. | 161-3398 | [1] | MANIFOLD-EXHAUST | |
| 3. | 161-3411 | [6] | GASKET | |
| 4. | 245-9750M | [4] | STUD-TAPERLOCK(M10X1.5X50-MM) | |
| 5. | 324-9290 | [1] | BELLOWS AS | |
| 6. | 347-9445 | [1] | MANIFOLD-EXHAUST | |
| 7. | 349-9672 | [1] | MANIFOLD-EXHAUST | |
| 8. | 116-3715M | [12] | STUD-TAPERLOCK(M10X1.5X85-MM) | |
| 9. | 4P-4369 | [12] | SPACER(12X19X23.5-MM THK) | |
| 10. | 6V-5839 | [12] | WASHER(11X21X2.5-MM THK) | |
| 11. | 9X-6620M | [12] | LOCKNUT(M10X1.5-THD) | |
| M | METRIC PART | |||
