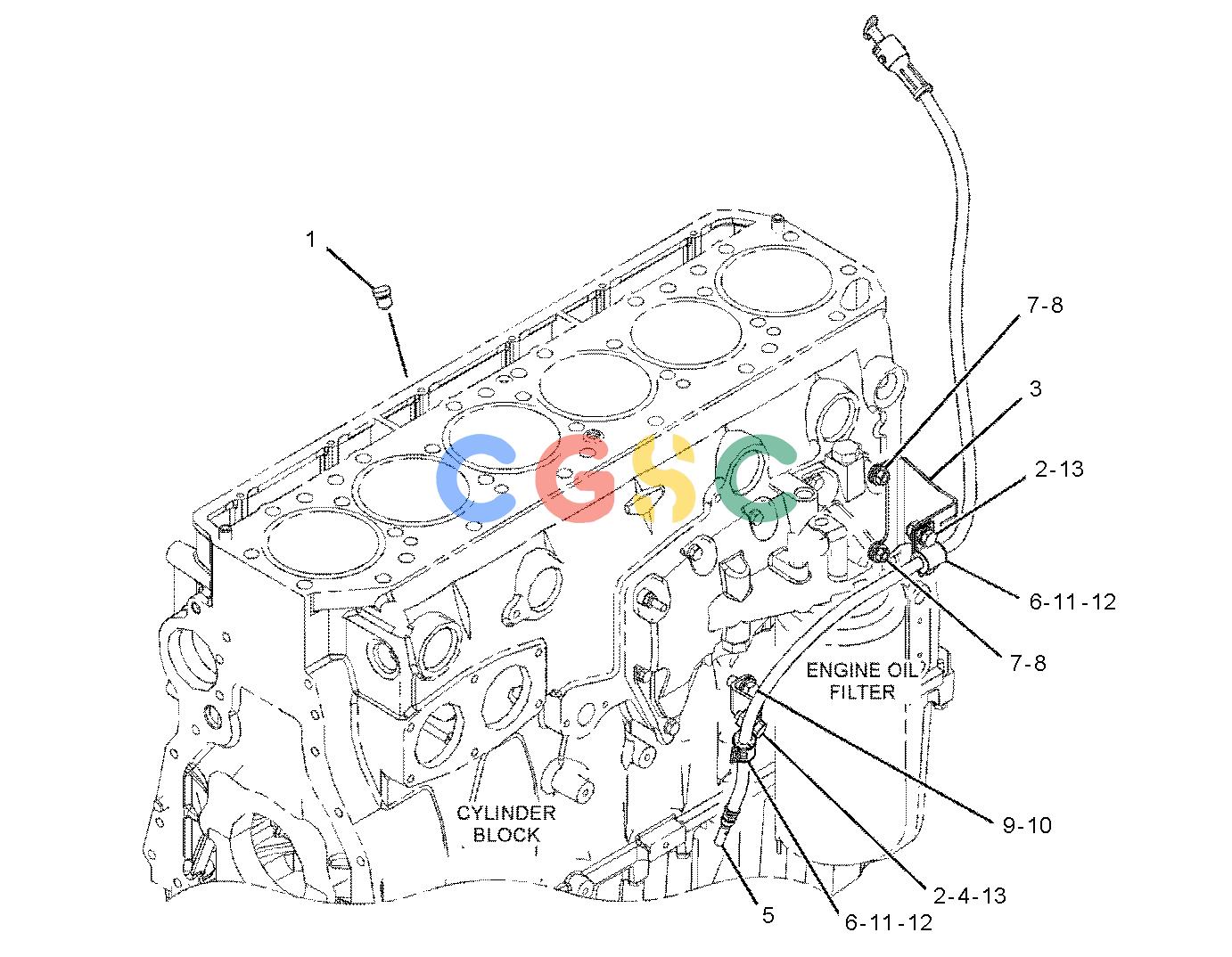

卡特零件查询（725C） 366-4949: GAUGE GP-OIL LEVEL (DIPSTICK)
广数供应链运营团队, 14 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-2563 | [1] | PLUG | |
| 2. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 3. | 366-3502 | [1] | BRACKET AS | |
| 4. | 370-8947 | [1] | BRACKET AS | |
| 5. | 373-1774Y | [1] | GAUGE GP-OIL LEVEL (DIPSTICK)(ENGINE) | |
| 6. | 353-7957 | [2] | GROMMET | |
| 7. | 3E-4352 | [4] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 8. | 5P-7970M | [2] | NUT(M8X1.25-THD) | |
| 9. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 6A-5591M | [1] | BOLT(M12X1.75X25-MM) | |
| 11. | 8T-1887 | [2] | CLIP(SLOT) | |
| 12. | 8T-1888 | [2] | CLIP(TAB) | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
