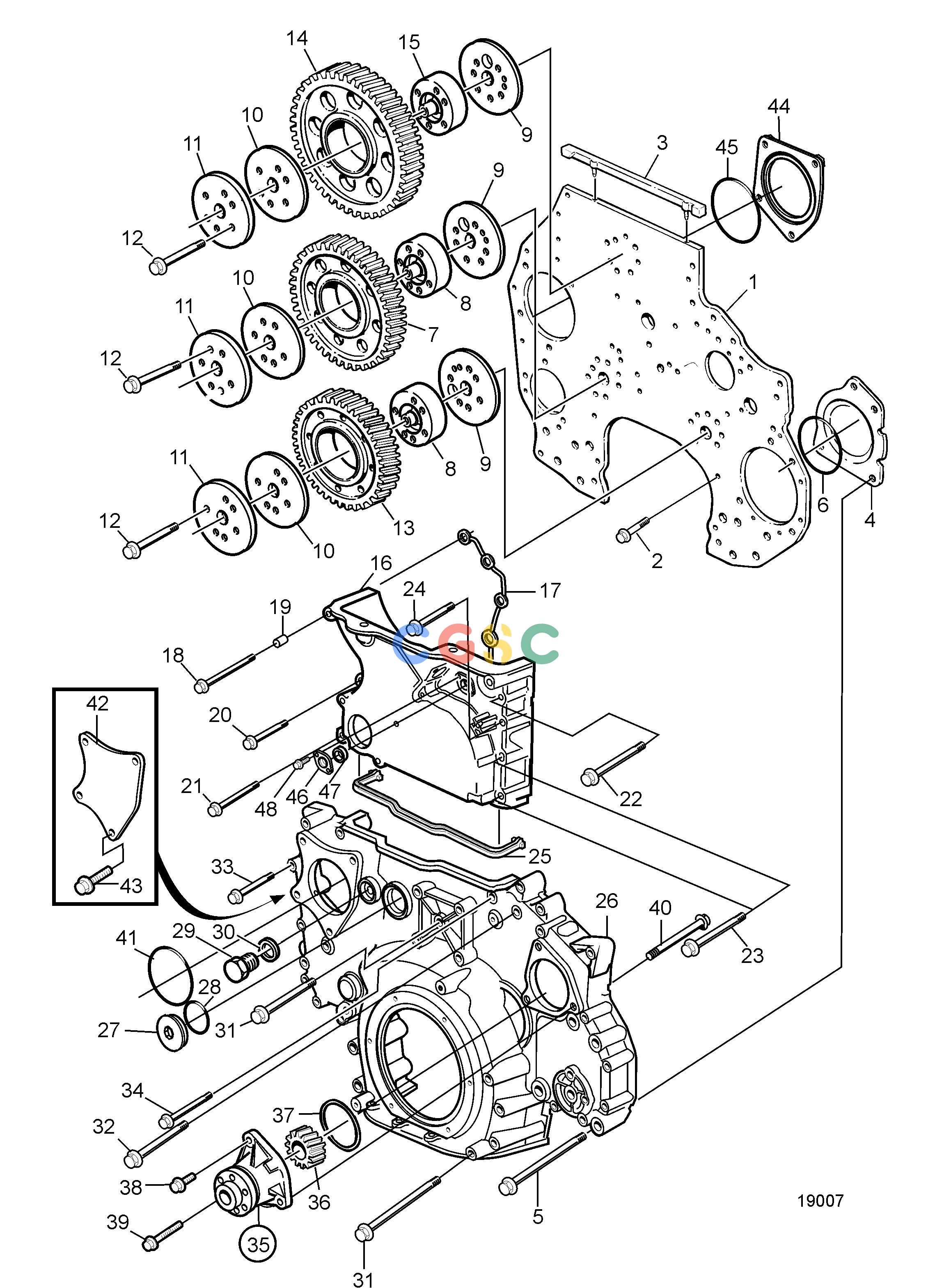

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MEngineTiming Gear HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8170561
|
[1] |
Timing gear plate
|
Replaced by 21383522
|
| 1. |
21383522
|
[1] |
Timing gear plate
|
|
| 2. |
471586
|
[17] |
Screw
|
L=38mm
|
| 3. |
20489341
|
[1] |
Seal
|
(8170473)
|
| 4. |
3828662
|
[1] |
Cover
|
For engines in keel cooled version.
|
| 5. |
946473
|
[4] |
Flange screw
|
For cover 3828662., L=90mm
|
| 6. |
949736
|
[1] |
O-ring
|
|
| 7. |
8170193
|
[1] |
Idler gear
|
|
| 8. |
8170219
|
[2] |
Hub
|
|
| 9. |
8170220
|
[3] |
Thrust washer
|
|
| 10. |
3184865
|
[3] |
Thrust washer
|
|
| 11. |
3184868
|
[3] |
Bearing shield
|
|
| 12. |
21344754
|
[18] |
Flange screw
|
|
| 13. |
8170195
|
[1] |
Idler gear
|
|
| 14. |
8170197
|
[1] |
Idler gear
|
|
| 15. |
8170199
|
[1] |
Hub
|
|
| 16. |
20512768
|
[1] |
Timing gear cover
|
Replaced by 20713791
|
| 16. |
20713791
|
[1] |
Timing gear cover
|
|
| 17. |
3830184
|
[1] |
Seal
|
|
| 18. |
968999
|
[1] |
Flange screw
|
L=130mm
|
| 19. |
843075
|
[1] |
Spacer sleeve
|
|
| 20. |
965182
|
[3] |
Flange screw
|
L=80mm
|
| 21. |
965183
|
[1] |
Flange screw
|
L=90mm
|
| 22. |
965190
|
[1] |
Flange screw
|
L=100mm
|
| 23. |
947790
|
[2] |
Flange screw
|
L=80mm
|
| 24. |
965223
|
[1] |
Flange screw
|
L=75mm
|
| 25. |
20714247
|
[1] |
Sealing strip
|
(8170452)
|
| 26. |
3835799
|
[1] |
Timing gear cover
|
Replaced by timing gear cover 21122283, companion flange 21243814 and 2 pcs screw 3595265.
|
| 26. |
21122283
|
[1] |
Timing gear cover
|
|
| 27. |
467367
|
[1] |
Plug
|
|
| 28. |
469328
|
[1] |
Gasket
|
|
| 29. |
960632
|
[1] |
Plug
|
|
| 30. |
948884
|
[1] |
Gasket
|
|
| 31. |
973096
|
[4] |
Flange screw
|
L=130mm
|
| 32. |
947790
|
[2] |
Flange screw
|
L=80mm
|
| 33. |
965217
|
[12] |
Flange screw
|
L=65mm
|
| 34. |
965183
|
[1] |
Flange screw
|
L=90mm
|
| 35. |
8193986
|
[1] |
Driving device
|
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
| 37. |
967344
|
[1] |
O-ring
|
|
| 38. |
946752
|
[1] |
Flange screw
|
|
| 39. |
965190
|
[1] |
Flange screw
|
|
| 40. |
3184837
|
[1] |
Flange screw
|
For driving device. mounted from the opposite side through the fuel pump.
|
| 41. |
948981
|
[1] |
O-ring
|
|
| 42. |
3827079
|
[1] |
Cap
|
|
| 43. |
965197
|
[4] |
Flange screw
|
|
| 44. |
1556208
|
[1] |
Cover
|
|
| 45. |
948888
|
[1] |
O-ring
|
|
| 46. |
3964803
|
[1] |
Plug
|
|
| 47. |
20555696
|
[1] |
Sealing ring
|
|
| 48. |
946440
|
[2] |
Flange screw
|
|
