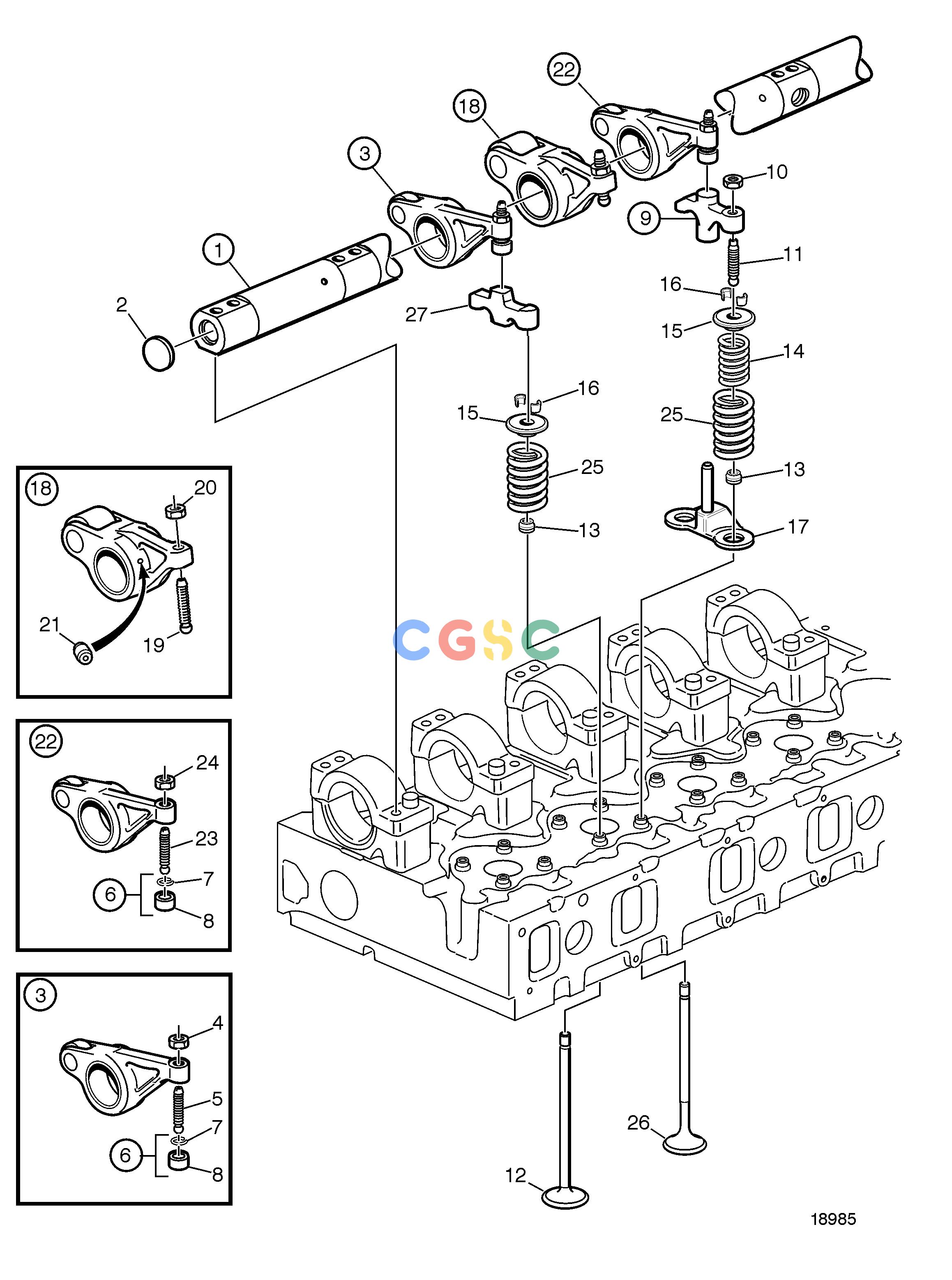

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MEngineValve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
928 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8170158
|
[1] |
Rocker arm shaft
|
|
| 2. |
955096
|
[2] |
Expansion plug
|
(980176)
|
| 3. |
20742698
|
[6] |
Rocker arm
|
|
| 4. |
946911
|
[1] |
Hexagon nut
|
|
| 5. |
1546458
|
[1] |
Ball stud
|
|
| 6. |
20441753
|
[1] |
Ball socket
|
(1547962)
|
| 7. |
968757
|
[1] |
O-ring
|
|
| 8. |
|
|
|
|
| 9. |
1547919
|
[6] |
Valve caliper, exhaust
|
Earlier production 12 pcs
|
| 10. |
946911
|
[1] |
Hexagon nut
|
|
| 11. |
1543368
|
[1] |
Adjusting screw
|
|
| 12. |
3169490
|
[12] |
Inlet valve
|
|
| 13. |
859171
|
[24] |
Valve stem seal
|
|
| 14. |
3183211
|
[12] |
Valve spring, inlet, inner
|
|
| 15. |
1546487
|
[24] |
Valve spring washer
|
|
| 16. |
1677875
|
[48] |
Valve cotter
|
|
| 17. |
1677963
|
[6] |
Guide pin, exhaust
|
Earlier production 12 pcs, exhaust and inlet.
|
| 18. |
20746798
|
[6] |
Rocker arm, injector
|
|
| 19. |
1677396
|
[1] |
Hexagon nut
|
|
| 20. |
1546775
|
[1] |
Ball stud
|
|
| 21. |
3964817
|
[1] |
Jet
|
|
| 22. |
20742703
|
[6] |
Rocker arm, exhaust
|
|
| 23. |
1546458
|
[1] |
Ball stud
|
|
| 24. |
946911
|
[1] |
Hexagon nut
|
|
| 25. |
21310068
|
[24] |
Valve spring, outer
|
|
| 26. |
3827409
|
[12] |
Exhaust valve
|
|
| 27. |
3183207
|
[6] |
Valve caliper, intake
|
Earlier production 12 pcs
|
