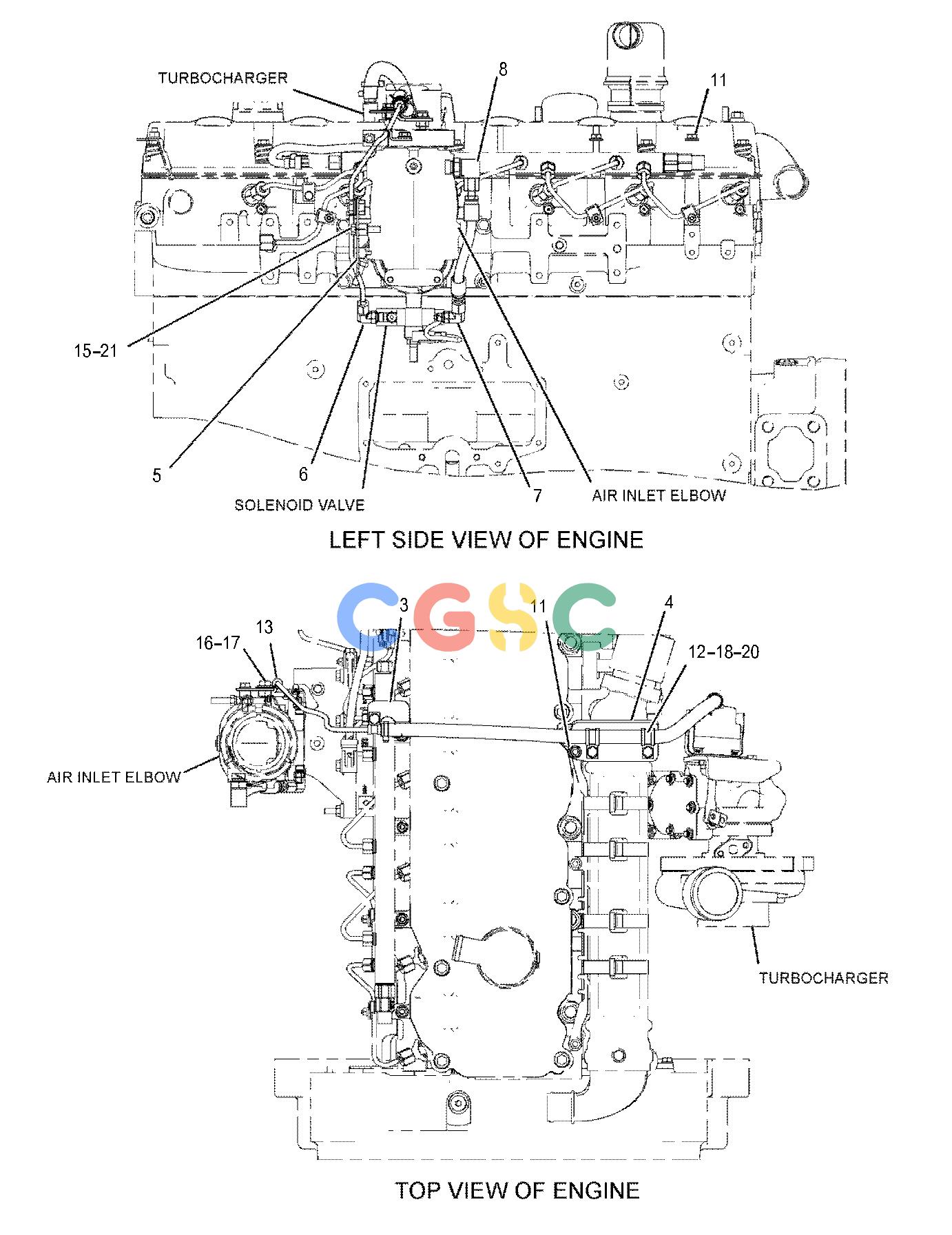

卡特零件查询（725C） 382-0896: LINES GP-TURBOCHARGER
广数供应链运营团队, 14 02月, 2025，浏览：
925 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 290-1993 | [2] | STRAP-CABLE | |
| 2. | 317-7012 | [2] | CLAMP-BAND | |
| 3. | 348-5222 | [1] | BRACKET AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 4. | 353-7502 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 5. | 358-9091 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 5G-4313 | [1] | SPACER(10.34X15.88X12-MM THK) | |
| 6. | 364-9626 | [1] | ELBOW AS | |
| | 214-7567 | [1] | SEAL-O-RING | |
| | 364-9625 | [1] | ADAPTER-ELBOW | |
| 7. | 364-9628 | [1] | ELBOW AS | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 364-9627 | [1] | ADAPTER-ELBOW | |
| 8. | 364-9632 | [1] | ELBOW AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 364-9631 | [1] | ADAPTER-ELBOW | |
| 9. | 366-9286 | [1] | TUBE AS-AIR | |
| 10. | 448-6882 | [1] | TUBE AS-AIR | |
| 11. | 178-3336M | [4] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 12. | 337-9073 | [2] | CLIP | |
| 13. | 342-2134 | [1] | CLIP | |
| 14. | 345-3350 | [1] | CLIP | |
| 15. | 6V-5218M | [1] | BOLT(M8X1.25X35-MM) | |
| 16. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 17. | 6V-8212M | [1] | BOLT(M10X1.5X16-MM) | |
| 18. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 19. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 20. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 337-4178E | | HOSE(54-CM) | |
| 23. | 330-4374E | | SLEEVE(56-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
