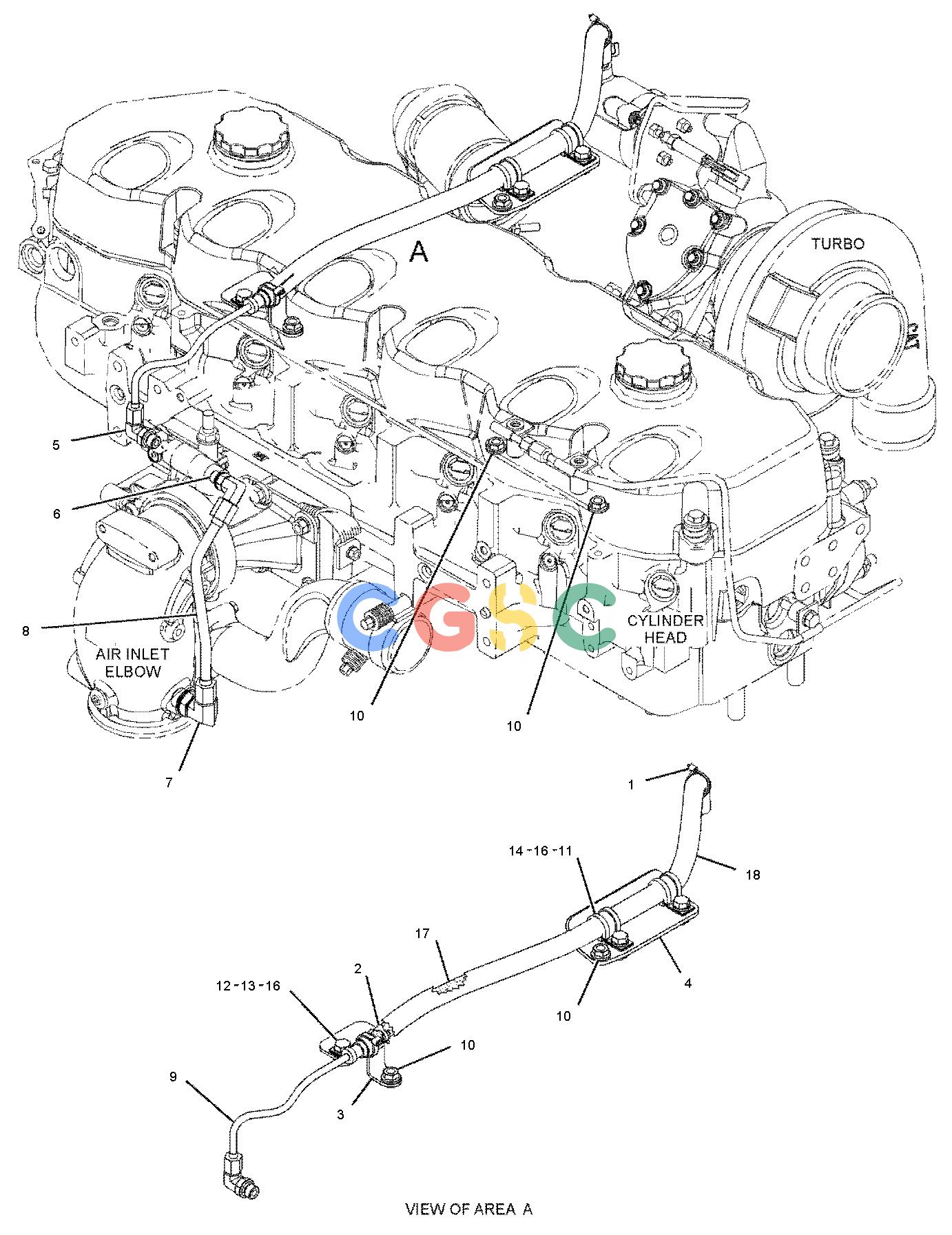

卡特零件查询（725C） 351-8476: LINES GP-TURBOCHARGER AIR
广数供应链运营团队, 14 02月, 2025，浏览：
550 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 290-1993 | [2] | STRAP-CABLE | |
| 2. | 317-7012 | [2] | CLAMP-BAND | |
| 3. | 348-5222 | [1] | BRACKET AS | |
| 4. | 353-7502 | [1] | BRACKET AS | |
| 5. | 364-9626 | [1] | ELBOW AS | |
| | 214-7567 | [1] | SEAL-O-RING | |
| | 364-9625 | [1] | ADAPTER-ELBOW | |
| 6. | 364-9628 | [1] | ELBOW AS | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 364-9627 | [1] | ADAPTER-ELBOW | |
| 7. | 364-9632 | [1] | ELBOW AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 364-9631 | [1] | ADAPTER-ELBOW | |
| 8. | 365-9305 | [1] | TUBE AS | |
| 9. | 366-9284 | [1] | TUBE AS | |
| 10. | 178-3336M | [4] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 11. | 337-9073 | [2] | CLIP | |
| 12. | 345-3350 | [1] | CLIP | |
| 13. | 6V-5215M | [1] | BOLT(M8X1.25X16-MM) | |
| 14. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 16. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 337-4178E | | HOSE(54-CM) | |
| 18. | 330-4374E | | SLEEVE(56-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
