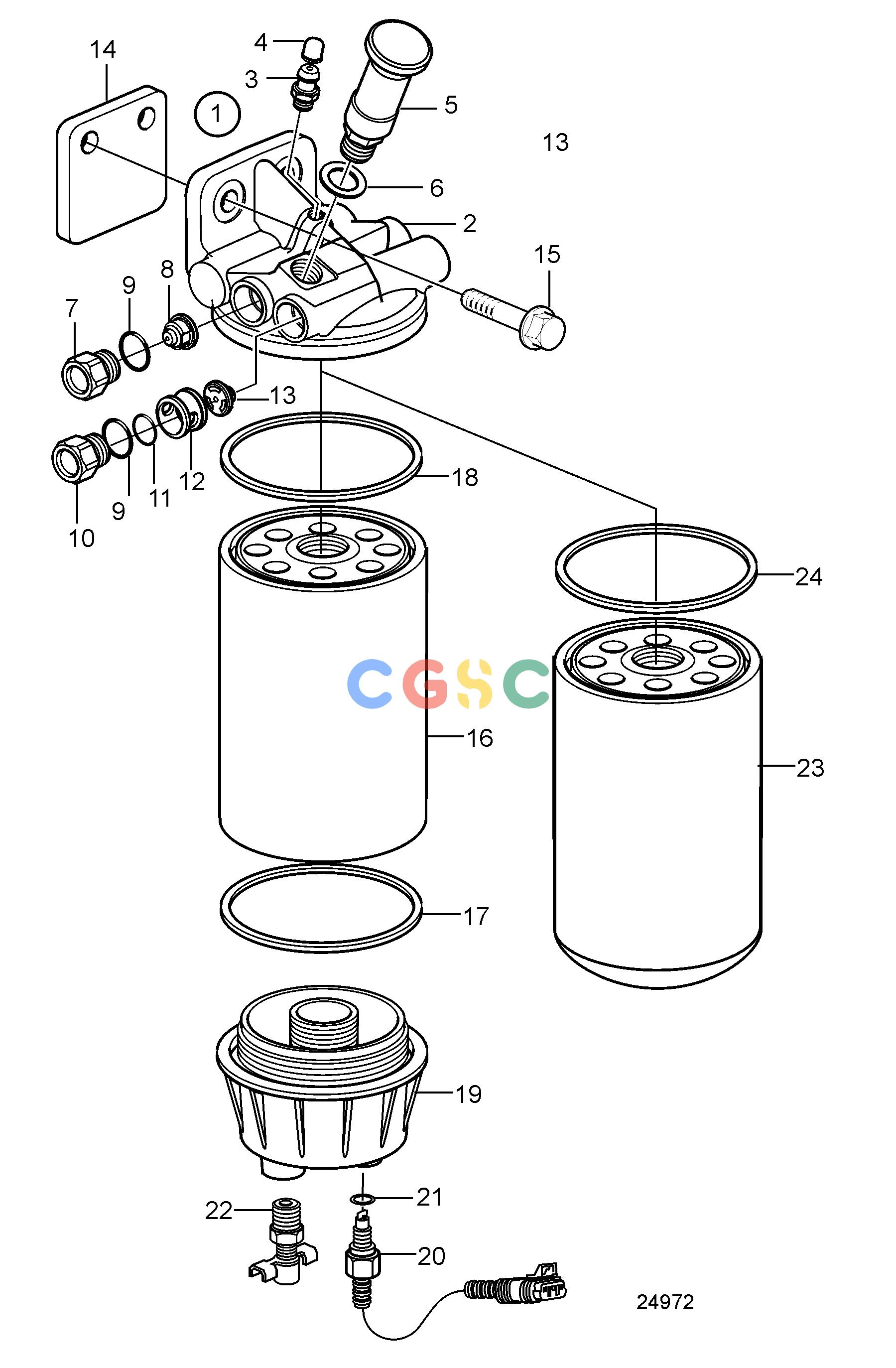

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MFuel SystemFuel Filter Housing, Components, Later Production with Hand PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
130 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21303231
|
[1] |
Fuel filter housing
|
|
| 2. |
|
|
|
|
| 3. |
20548012
|
[1] |
Faucet
|
|
| 4. |
20547976
|
[1] |
Protecting cover
|
|
| 5. |
3837393
|
[1] |
Hand pump
|
|
| 6. |
947622
|
[1] |
Gasket
|
|
| 7. |
21140340
|
[1] |
Nipple
|
|
| 8. |
21113993
|
[1] |
Non-return valve
|
|
| 9. |
1526474
|
[2] |
O-ring
|
|
| 10. |
8148328
|
[1] |
Nipple
|
|
| 11. |
976971
|
[1] |
O-ring
|
|
| 12. |
3964717
|
[1] |
Spacer sleeve
|
|
| 13. |
244834
|
[1] |
Non-return valve
|
|
| 14. |
21358057
|
[1] |
Plate
|
|
| 15. |
946472
|
[2] |
Flange screw
|
|
| 16. |
3809721
|
[1] |
Fuel filter insert
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
21283474
|
[1] |
Bowl
|
|
| 20. |
3885070
|
[1] |
Sensor
|
|
| 21. |
3831094
|
[1] |
O-ring
|
|
| 22. |
21279867
|
[1] |
Drain valve
|
|
| 23. |
22377272
|
[1] |
Fuel filter
|
|
| 24. |
|
|
|
|
