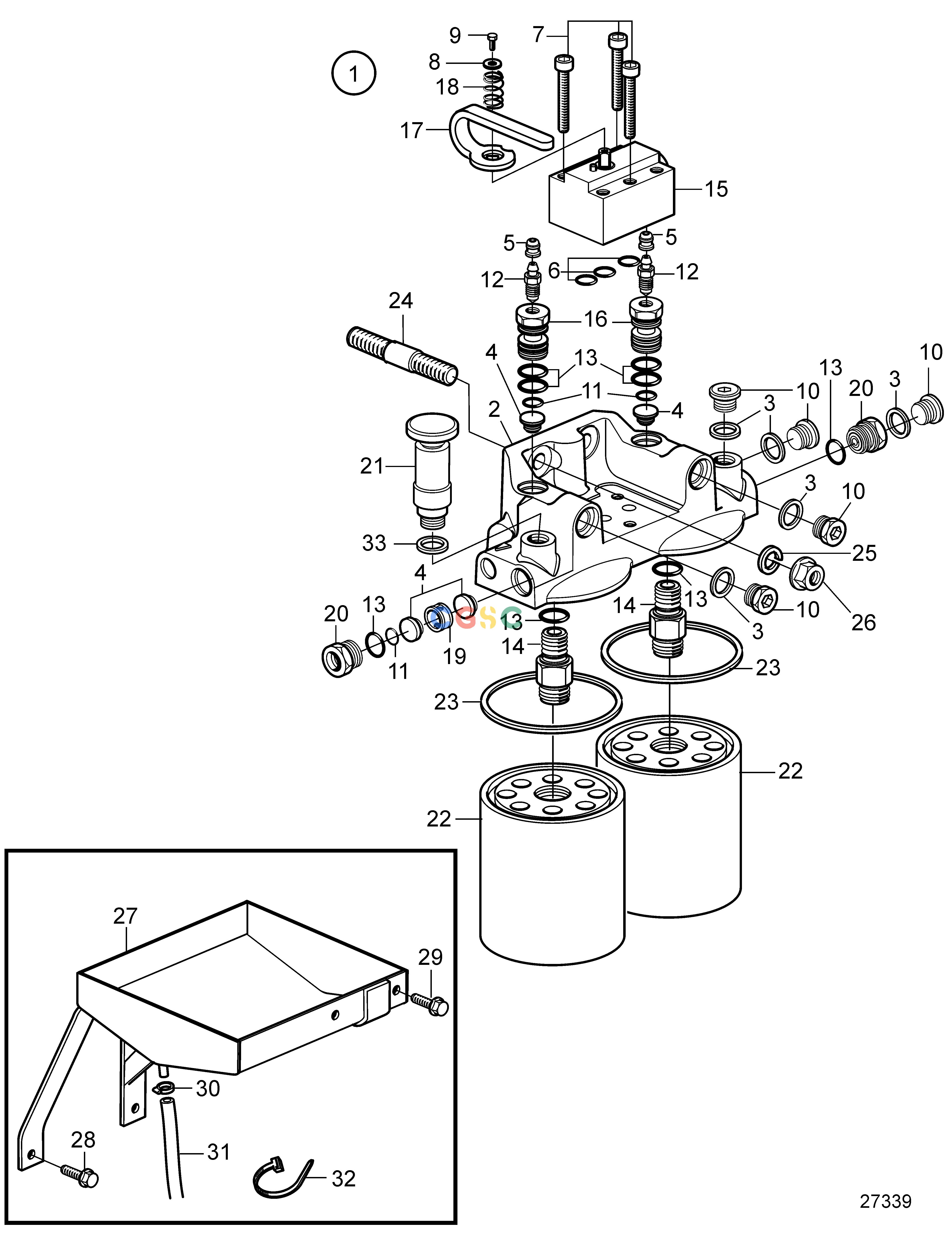

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MFuel SystemFuel Filter, Twin. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889532
|
[1] |
Fuel filter housing
|
Replaced by next part number
|
| 1. |
21315882
|
[1] |
Fuel filter housing
|
Replaced by next part number
|
| 1. |
21353297
|
[1] |
Fuel filter housing
|
|
| 2. |
3889528
|
[1] |
Fuel filter housing
|
|
| 3. |
20852765
|
[4] |
Sealing ring
|
|
| 4. |
244834
|
[4] |
Non-return valve
|
|
| 5. |
20547976
|
[2] |
Protecting cover
|
|
| 6. |
944364
|
[3] |
O-ring
|
|
| 7. |
959227
|
[3] |
Hex. socket screw
|
|
| 8. |
3839116
|
[1] |
Cap washer
|
|
| 9. |
984548
|
[1] |
Hexagon screw
|
|
| 10. |
966143
|
[5] |
Plug
|
|
| 11. |
976971
|
[3] |
O-ring
|
|
| 12. |
20548012
|
[2] |
Faucet
|
|
| 13. |
1526474
|
[8] |
O-ring
|
|
| 14. |
3831210
|
[2] |
Nipple
|
|
| 15. |
3835369
|
[1] |
Valve body
|
|
| 16. |
3835370
|
[2] |
Nipple
|
|
| 17. |
3842870
|
[1] |
Handle
|
|
| 18. |
3842868
|
[1] |
Compression spring
|
|
| 19. |
3964717
|
[1] |
Spacer sleeve
|
|
| 20. |
8148328
|
[2] |
Nipple
|
|
| 21. |
3837393
|
[1] |
Hand pump
|
|
| 22. |
22377272
|
[2] |
Fuel filter
|
|
| 23. |
|
|
|
|
| 24. |
977297
|
[2] |
Stud
|
|
| 25. |
941908
|
[2] |
Spring washer
|
|
| 26. |
971095
|
[2] |
Flange nut
|
|
| 27. |
3832639
|
[1] |
Spill plate
|
|
| 28. |
946440
|
[3] |
Flange screw
|
|
| 29. |
946173
|
[2] |
Flange screw
|
For oil drain pump.
|
| 30. |
943472
|
[1] |
Hose clamp
|
|
| 31. |
941995
|
[1] |
Hose
|
L=400mm
|
| 32. |
948211
|
[1] |
Cable tie
|
|
| 33. |
20852765
|
[1] |
Sealing ring
|
|
