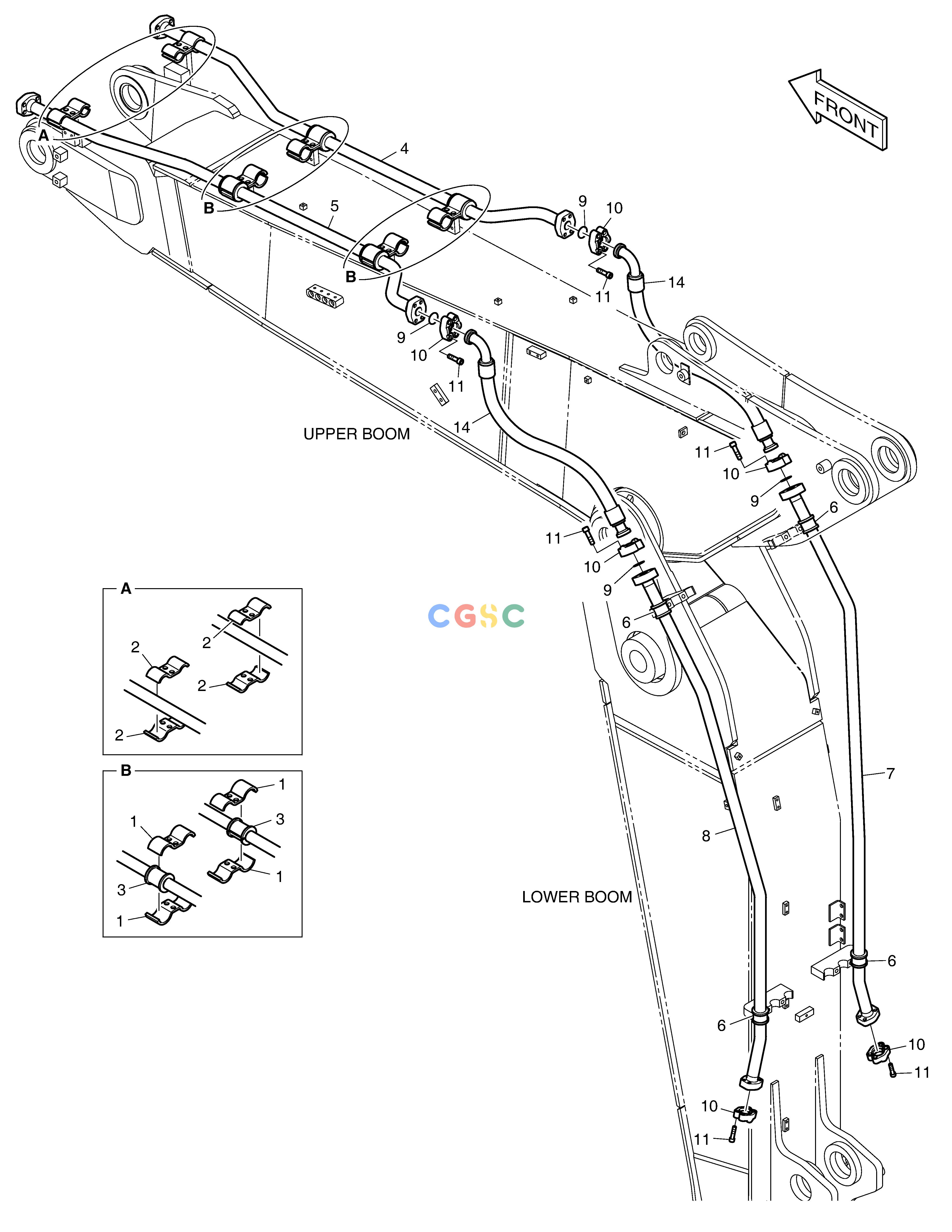

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-04969 | [-] | ||
| 1. | K1004059 | [8] | CLAMP | |
| 10. | 2181-9086 | [12] | FLANGE;SPLIT | |
| 11. | S2218766 | [24] | BOLT;SOCKET | |
| 14. | DS2040974 | [2] | ||
| 2. | K1004060 | [4] | CLAMP | |
| 3. | 180308-00236 | [4] | ||
| 4. | 420207-01319 | [1] | ||
| 5. | 420207-01320 | [1] | ||
| 6. | 180308-00156A | [4] | ||
| 7. | 420207-01321A | [1] | ||
| 8. | 420207-01322A | [1] | ||
| 9. | 2180-1026D23 | [4] | O-RING |
