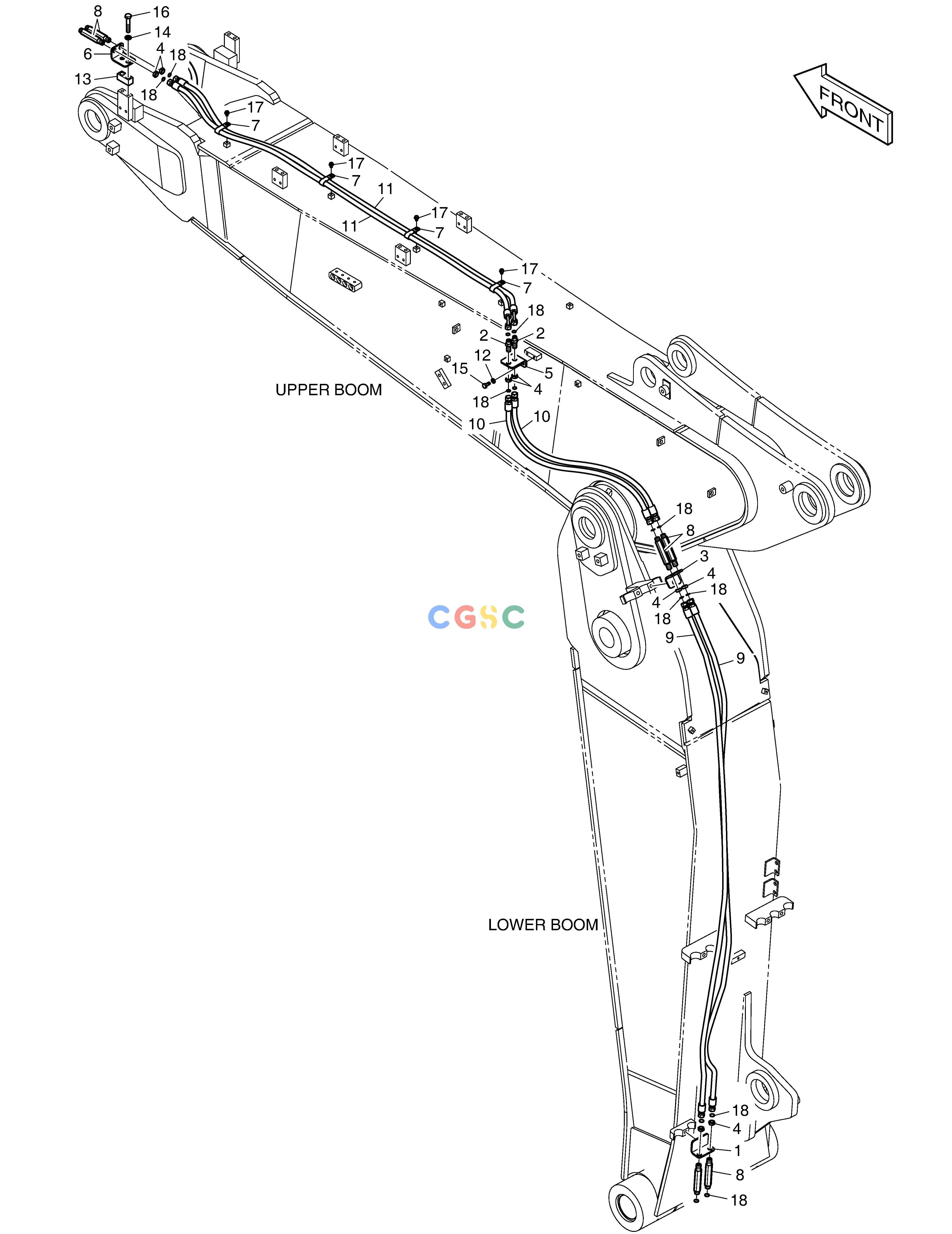

斗山零件查询ARTI. BOOM PIPING - QUICK FIT DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04970
|
[-] |
|
|
| 1. |
110406-01277
|
[1] |
|
|
| 10. |
DS20111157
|
[2] |
|
|
| 11. |
2184-1197D160
|
[2] |
HOSE UNF11/16-2600L
|
|
| 12. |
S5102603
|
[2] |
. WASHER
|
|
| 13. |
K1004006
|
[1] |
PLATE
|
|
| 14. |
120804-00080
|
[2] |
WASHER
|
|
| 15. |
S0512066
|
[2] |
. BOLT
|
|
| 16. |
S0563466
|
[2] |
BOLT
|
|
| 17. |
K1001029
|
[4] |
BOLT
|
|
| 18. |
S8030061
|
[14] |
O-RING
|
|
| 2. |
181-00128D2
|
[2] |
ADAPTER;CONNECTOR
|
|
| 3. |
110406-00877
|
[1] |
|
|
| 4. |
DS0301032
|
[8] |
NUT
|
|
| 5. |
110406-00878
|
[1] |
|
|
| 6. |
110406-00479
|
[1] |
|
|
| 7. |
124-00199D1
|
[4] |
CLIP
|
|
| 8. |
DS2415020
|
[6] |
|
|
| 9. |
DS20111158
|
[2] |
|
|
