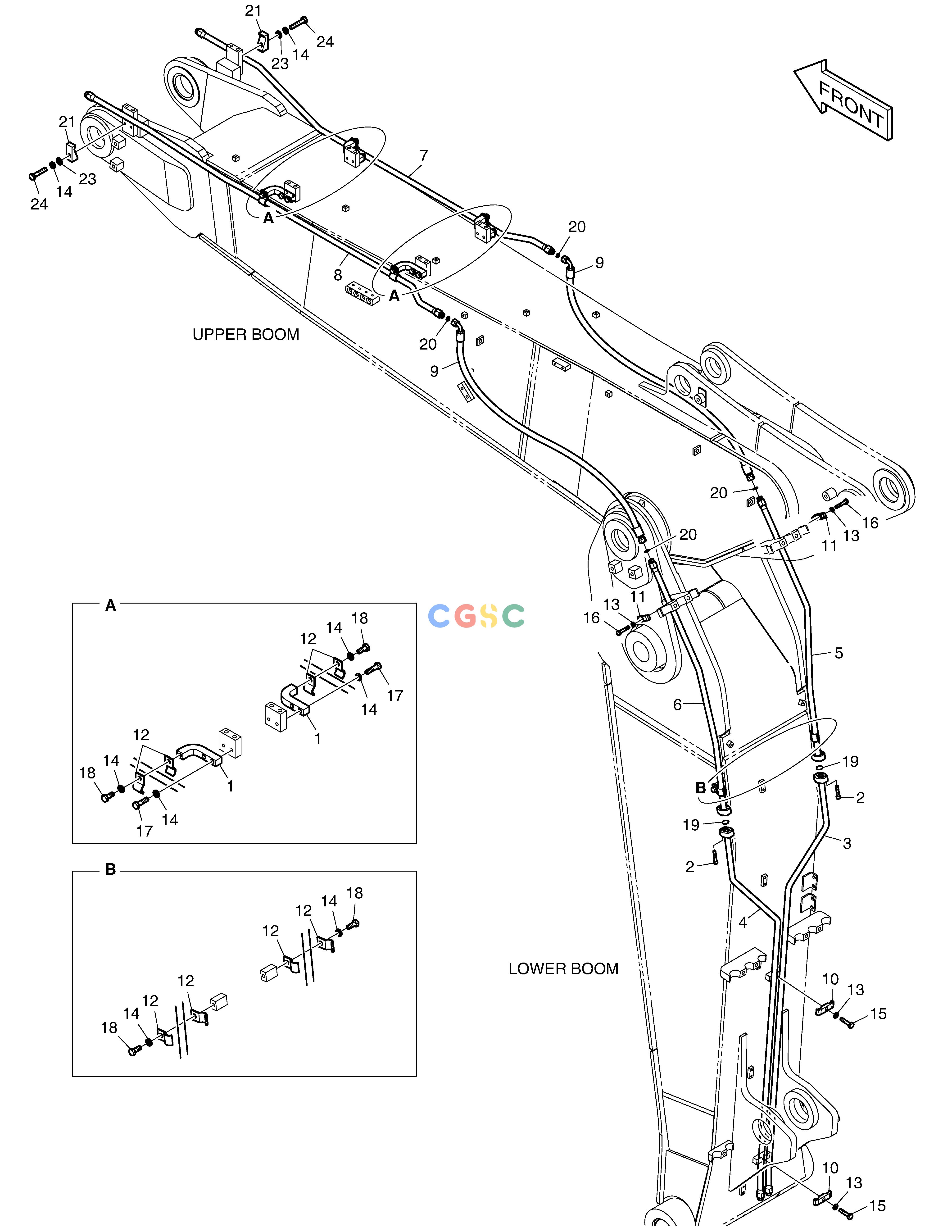

斗山零件查询ARTI. BOOM PIPING - ROTATING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04975
|
[-] |
|
|
| 1. |
621-02718
|
[4] |
PLATE
|
|
| 10. |
K1004028
|
[2] |
CLAMP;PIPE
|
|
| 11. |
2124-1026D1
|
[2] |
CLAMP;PIPE
|
|
| 12. |
124-00299A
|
[12] |
CLAMP
|
|
| 13. |
S5102603
|
[4] |
. WASHER
|
|
| 14. |
S5102703
|
[16] |
WASHER
|
|
| 15. |
S0558466
|
[2] |
BOLT
|
|
| 16. |
S0558453
|
[2] |
BOLT
|
|
| 17. |
S0560666
|
[8] |
BOLT
|
|
| 18. |
S0515266
|
[6] |
BOLT
|
|
| 19. |
2180-1026D30
|
[2] |
O-RING
|
|
| 2. |
S2209466
|
[8] |
BOLT
|
|
| 20. |
S8030081
|
[4] |
O-RING
|
|
| 21. |
K1006931
|
[2] |
CLAMP;PIPE
|
|
| 23. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 24. |
S0560966
|
[2] |
BOLT
|
|
| 3. |
420207-01323
|
[1] |
|
|
| 4. |
420207-01324
|
[1] |
|
|
| 5. |
420207-01325
|
[1] |
|
|
| 6. |
420207-01326
|
[1] |
|
|
| 7. |
420207-01327
|
[1] |
|
|
| 8. |
420207-01328
|
[1] |
|
|
| 9. |
DS2012629
|
[2] |
|
|
