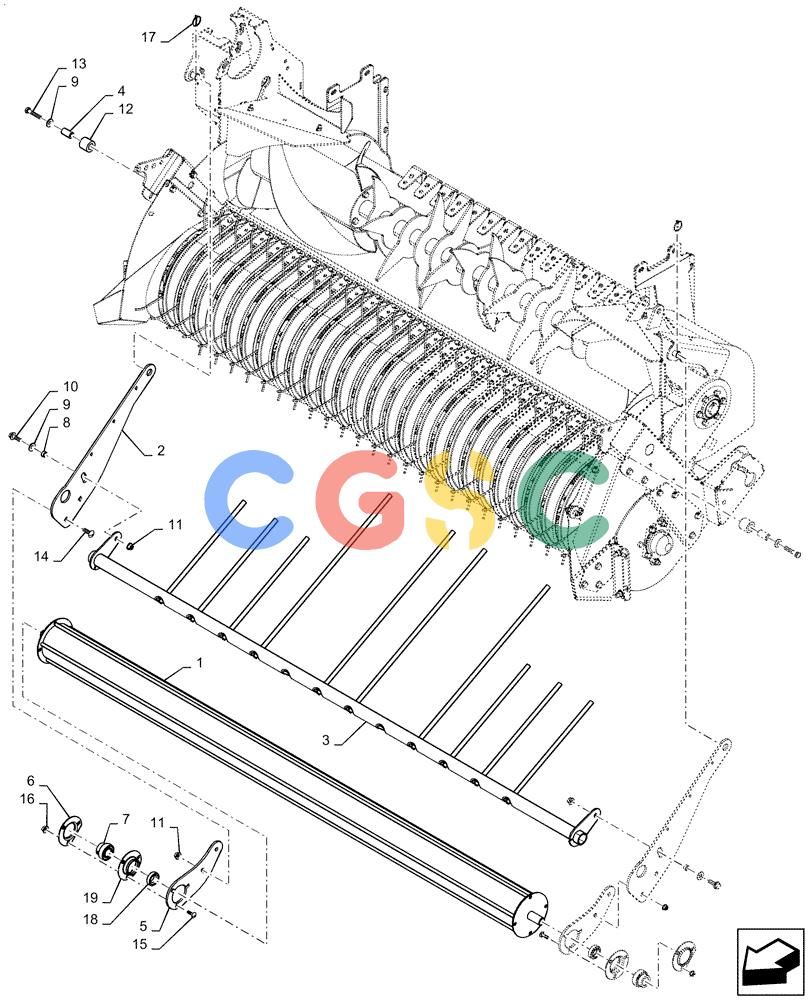

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (60.220.CC[03]) - VAR - 726819 - 1.8M ROLLER WINDGUARD, OVERSHOT FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84488987
|
[1] |
ROLLER
|
NH
|
| 2. |
84425604
|
[2] |
ARM
|
NH
|
| 3. |
84412946
|
[1] |
WINDGUARD
|
NH
Superseded by part number: 48008883
|
| 4. |
84563993
|
[2] |
SPACER,10.31mm ID x 18.24mm OD x 33.53mm L
|
NH
|
| 5. |
84426074
|
[2] |
ARM
|
NH
|
| 6. |
86603075
|
[4] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 7. |
325103
|
[2] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
|
| 8. |
84238738
|
[2] |
SPACER,10.34mm ID x 15.88mm OD x 12mm L
|
NH
|
| 9. |
80702
|
[4] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 10. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 11. |
9804278
|
[6] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
47361097
|
[2] |
SPACER,20mm ID x 34.9mm OD x 31mm L
|
NH
|
| 13. |
120069
|
[2] |
BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8
|
NH
|
| 14. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 15. |
308761
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 16. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 17. |
86508947
|
[2] |
LINCH PIN,18.8mm OD
|
NH
|
| 18. |
47507709
|
[2] |
SPACER,24.88mm ID x 41mm OD x 13mm Thk
|
PLO
|
| 19. |
47505113
|
[2] |
BEARING HOUSING
|
PLO
|
