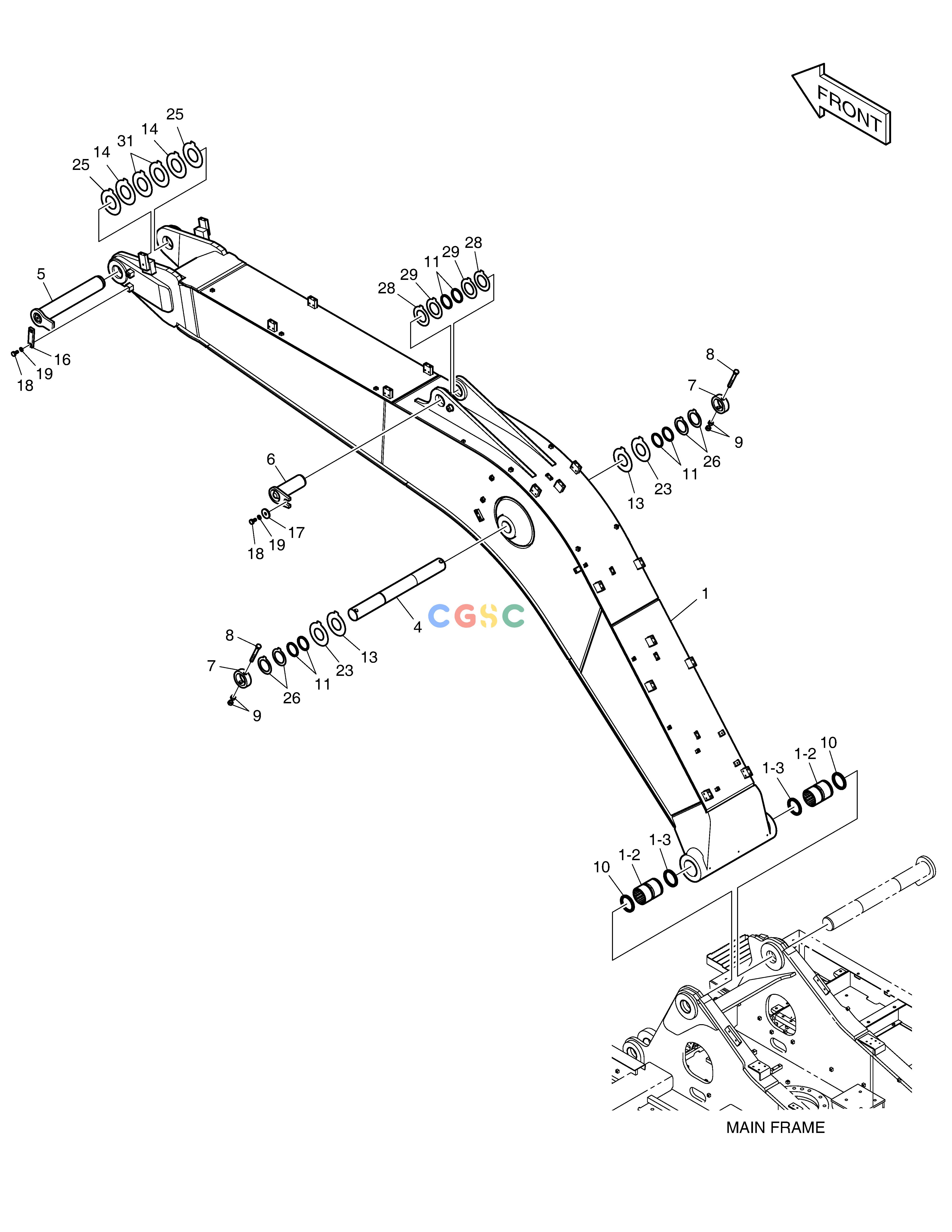

斗山零件查询BOOM - 6.245m - HEAVY DUTY DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230207-00218
|
[-] |
|
|
| 1. |
230211-00193
|
[1] |
|
|
| 1-2. |
131004-00111
|
[2] |
|
|
| 1-3. |
DS5502025
|
[2] |
|
|
| 10. |
DS5502025
|
[2] |
|
|
| 11. |
DS5502006
|
[6] |
|
|
| 13. |
DS7752017
|
[2] |
SHIM
|
|
| 14. |
DS7752019
|
[2] |
SHIM
|
|
| 16. |
2116-1515A
|
[1] |
PLATE;STOPPER
|
|
| 17. |
2116-1060D5
|
[1] |
STOPPER
|
|
| 18. |
S0521366
|
[3] |
BOLT
|
|
| 19. |
2114-1816A
|
[3] |
WASHER
|
|
| 23. |
DS7752018
|
[2] |
SHIM
|
|
| 25. |
DS7752020
|
[2] |
SHIM
|
|
| 26. |
DS7752014
|
[4] |
SHIM
|
|
| 28. |
DS7752015
|
[2] |
SHIM
|
|
| 29. |
DS7752016
|
[2] |
SHIM
|
|
| 31. |
DS7752075
|
[2] |
SHIM
|
|
| 4. |
120501-00023
|
[1] |
|
|
| 5. |
120501-02695
|
[1] |
|
|
| 6. |
120501-01078
|
[1] |
|
|
| 7. |
2116-1527A
|
[2] |
STOPPER
|
|
| 8. |
S0571866
|
[2] |
BOLT M20X2.5X170
|
|
| 9. |
S4013133
|
[4] |
NUT
|
|
