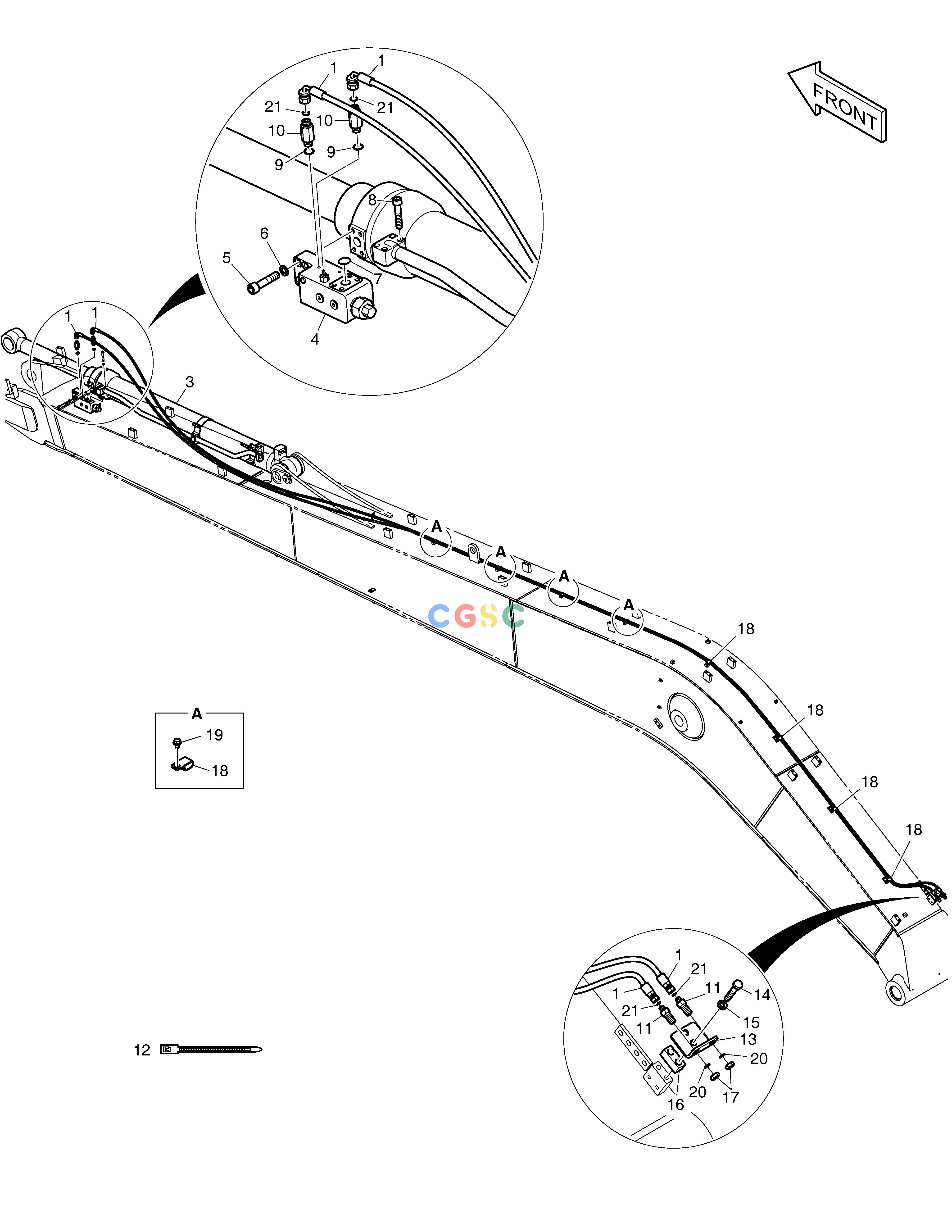

斗山零件查询BOOM PIPING - ARM LOCK VALVE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05064
|
[-] |
|
|
| 1. |
DS20132081
|
[2] |
|
|
| 10. |
DS2232019
|
[2] |
|
|
| 11. |
DS2230004
|
[2] |
|
|
| 12. |
2124-1084D2
|
[30] |
CLIP;BAND
|
|
| 13. |
110406-00478
|
[1] |
|
|
| 14. |
S0563466
|
[2] |
BOLT
|
|
| 15. |
120804-00080
|
[2] |
WASHER
|
|
| 16. |
K1004006
|
[1] |
PLATE
|
|
| 17. |
DS0301032
|
[2] |
NUT
|
|
| 18. |
DS2805009
|
[7] |
CLIP
|
|
| 19. |
K1001029
|
[5] |
BOLT
|
|
| 20. |
S8030061
|
[2] |
O-RING
|
|
| 21. |
S8030041
|
[4] |
O-RING
|
|
| 3. |
400305-00006G
|
[1] |
|
|
| 4. |
410114-00120
|
[1] |
|
|
| 5. |
S2215766
|
[4] |
BOLT
|
|
| 6. |
S5110703
|
[4] |
WASHER
|
|
| 7. |
2180-1026D19
|
[1] |
O-RING
|
|
| 8. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 9. |
S8000111
|
[2] |
O-RING
|
|
