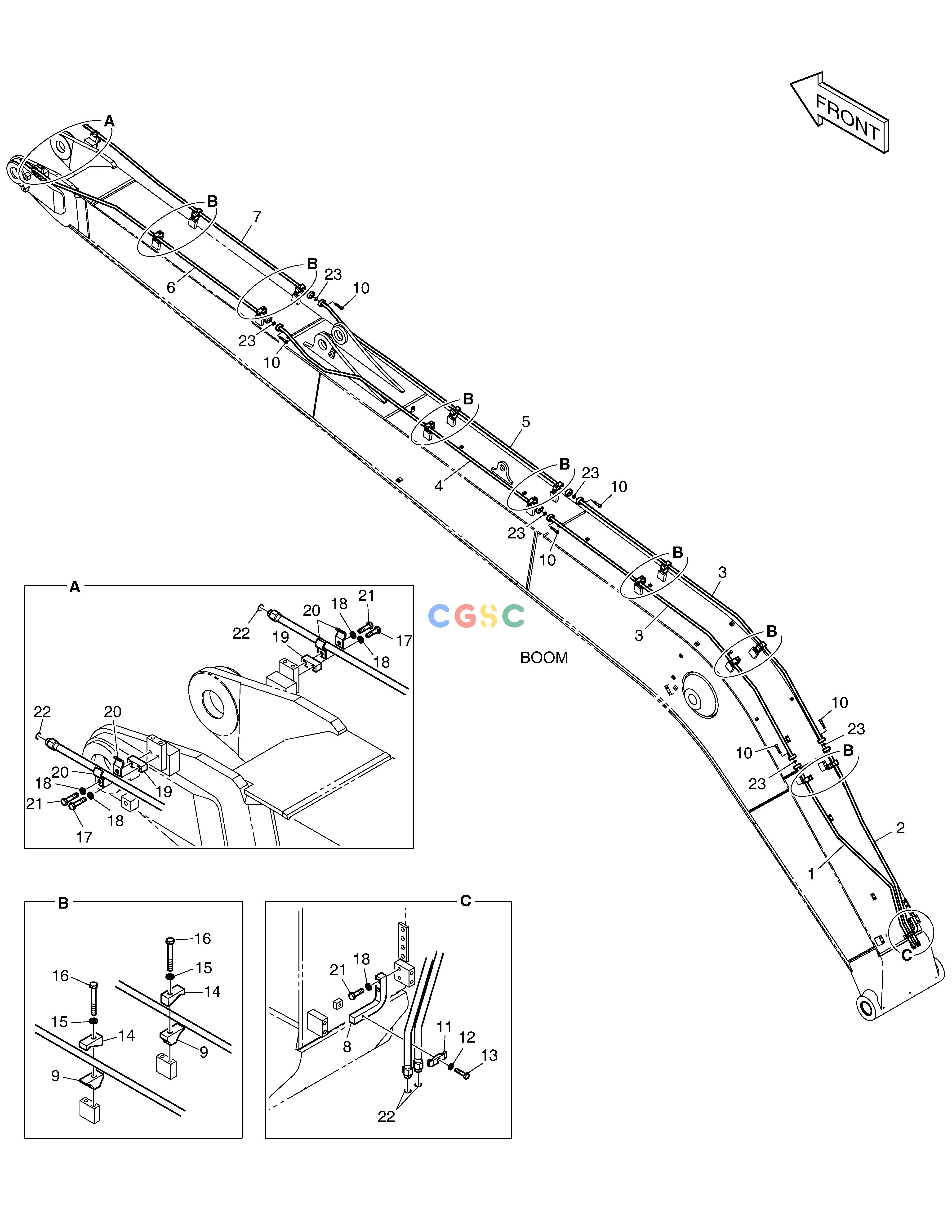

斗山零件查询BOOM PIPING - BOOM 10m(ROTATING) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05062
|
[-] |
|
|
| 1. |
420207-01361
|
[1] |
|
|
| 10. |
S2209466
|
[24] |
BOLT
|
|
| 11. |
K1004028
|
[1] |
CLAMP;PIPE
|
|
| 12. |
S5102603
|
[1] |
. WASHER
|
|
| 13. |
S0558466
|
[1] |
BOLT
|
|
| 14. |
K1006931
|
[14] |
CLAMP;PIPE
|
|
| 15. |
120804-00080
|
[14] |
WASHER
|
|
| 16. |
S0564366
|
[14] |
BOLT
|
|
| 17. |
S0560666
|
[2] |
BOLT
|
|
| 18. |
S5102703
|
[6] |
WASHER
|
|
| 19. |
K1002121
|
[2] |
PLATE
|
|
| 2. |
420207-01362
|
[1] |
|
|
| 20. |
124-00299A
|
[4] |
CLAMP
|
|
| 21. |
S0560866
|
[4] |
BOLT
|
|
| 22. |
S8030081
|
[4] |
O-RING
|
|
| 23. |
2180-1026D30
|
[6] |
O-RING
|
|
| 3. |
420207-01363
|
[2] |
|
|
| 4. |
420207-01364
|
[1] |
|
|
| 5. |
420207-01365
|
[1] |
|
|
| 6. |
420207-01366
|
[1] |
|
|
| 7. |
420207-01367
|
[1] |
|
|
| 8. |
621-02798
|
[1] |
PLATE
|
|
| 9. |
K1006930
|
[14] |
CLAMP;PIPE
|
|
