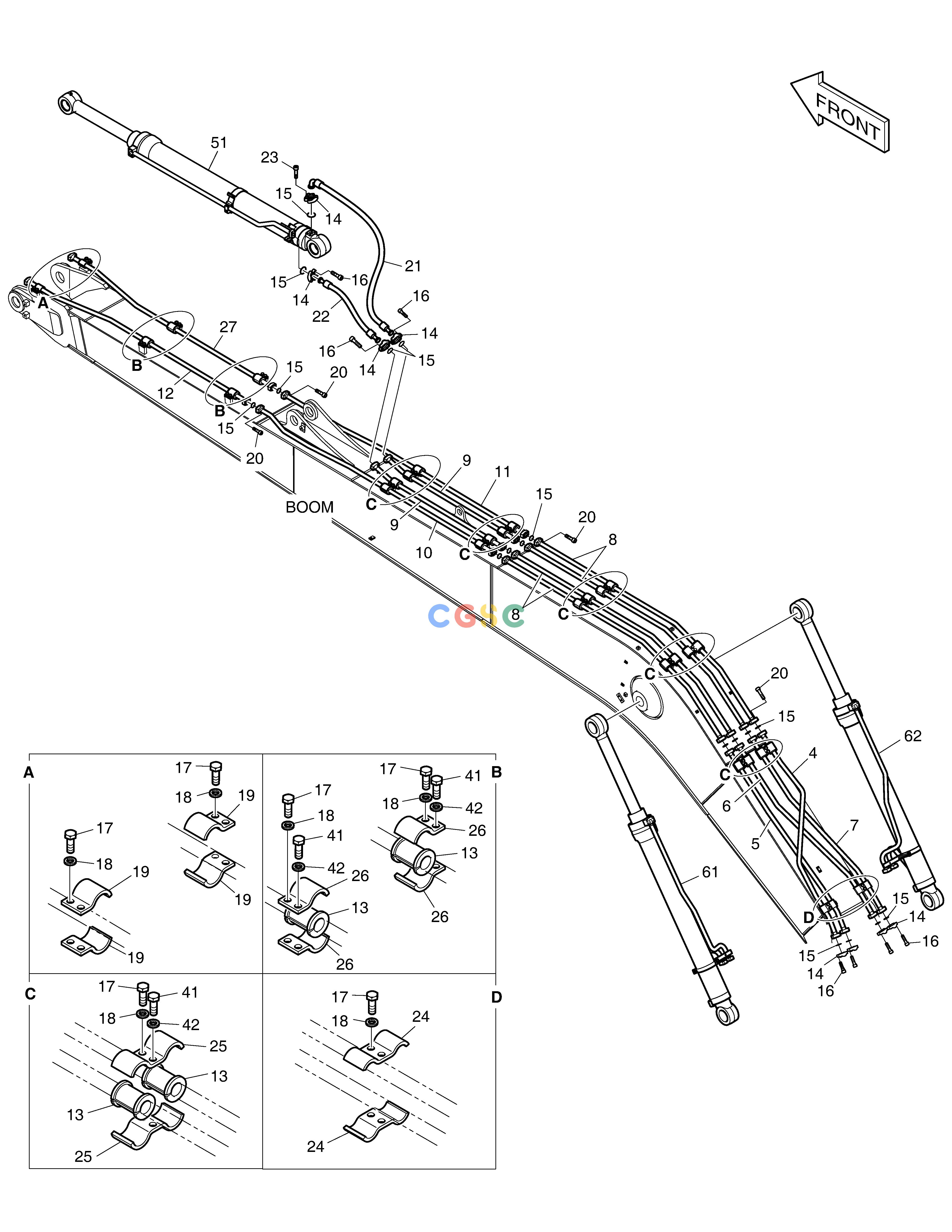

斗山零件查询BOOM PIPING - BOOM 10m DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05060
|
[-] |
|
|
| 10. |
420207-01357
|
[1] |
|
|
| 11. |
420207-01358
|
[1] |
|
|
| 12. |
420207-01359
|
[1] |
|
|
| 13. |
180308-00235
|
[24] |
|
|
| 14. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 15. |
2180-1026D19
|
[18] |
O-RING
|
|
| 16. |
S2212466
|
[28] |
BOLT
|
|
| 17. |
S0562766
|
[22] |
BOLT
|
|
| 18. |
120804-00080
|
[22] |
WASHER
|
|
| 19. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 20. |
S2212666
|
[40] |
BOLT;SOCKET M10X1.5X50
|
|
| 21. |
DS20401206
|
[1] |
|
|
| 22. |
DS2038434
|
[1] |
|
|
| 23. |
S2212266
|
[4] |
BOLT
|
|
| 24. |
K1004058
|
[4] |
CLAMP;PIPE
|
|
| 25. |
K1004055
|
[20] |
CLAMP;PIPE
|
|
| 26. |
K1004056
|
[8] |
CLAMP;PIPE
|
|
| 27. |
420207-01360
|
[1] |
|
|
| 4. |
420207-01351A
|
[1] |
|
|
| 41. |
S0562766
|
[14] |
BOLT
|
|
| 42. |
120804-00080
|
[14] |
WASHER
|
|
| 5. |
420207-01352A
|
[1] |
|
|
| 51. |
400305-00004G
|
[1] |
|
|
| 6. |
420207-01353
|
[1] |
|
|
| 61. |
400309-00002C
|
[1] |
|
|
| 62. |
400309-00003C
|
[1] |
|
|
| 7. |
420207-01354
|
[1] |
|
|
| 8. |
420207-01355
|
[4] |
|
|
| 9. |
420207-01356
|
[2] |
|
|
