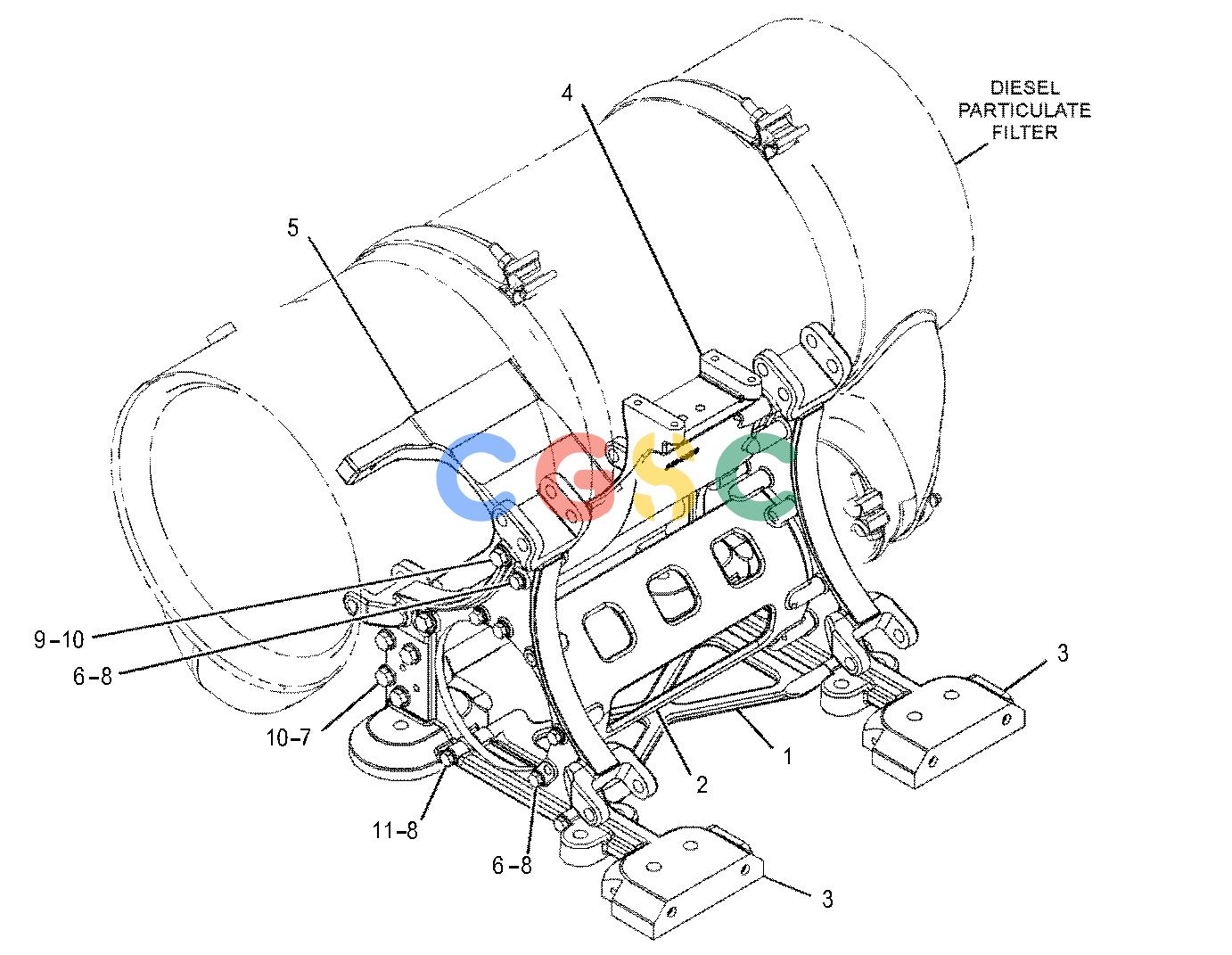

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [1] | BRACKET | ||
| 2. | 346-6574 | [1] | BRACKET AS | |
| 3. | 365-9479 | [2] | BRACKET | |
| 4. | 381-8028 | [1] | BRACKET | |
| 5. | 381-8030 | [1] | BRACKET | |
| 6. | 8T-7547M | [10] | BOLT(M8X1.25X30-MM) | |
| 7. | 311-8193M | [10] | BOLT(M10X1.5X45-MM) | |
| 8. | 8T-4224 | [14] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 8T-4198M | [2] | BOLT(M10X1.5X100-MM) | |
| 10. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 285-9066M | [4] | BOLT(M8X1.25X65-MM) | |
| M | METRIC PART | |||
