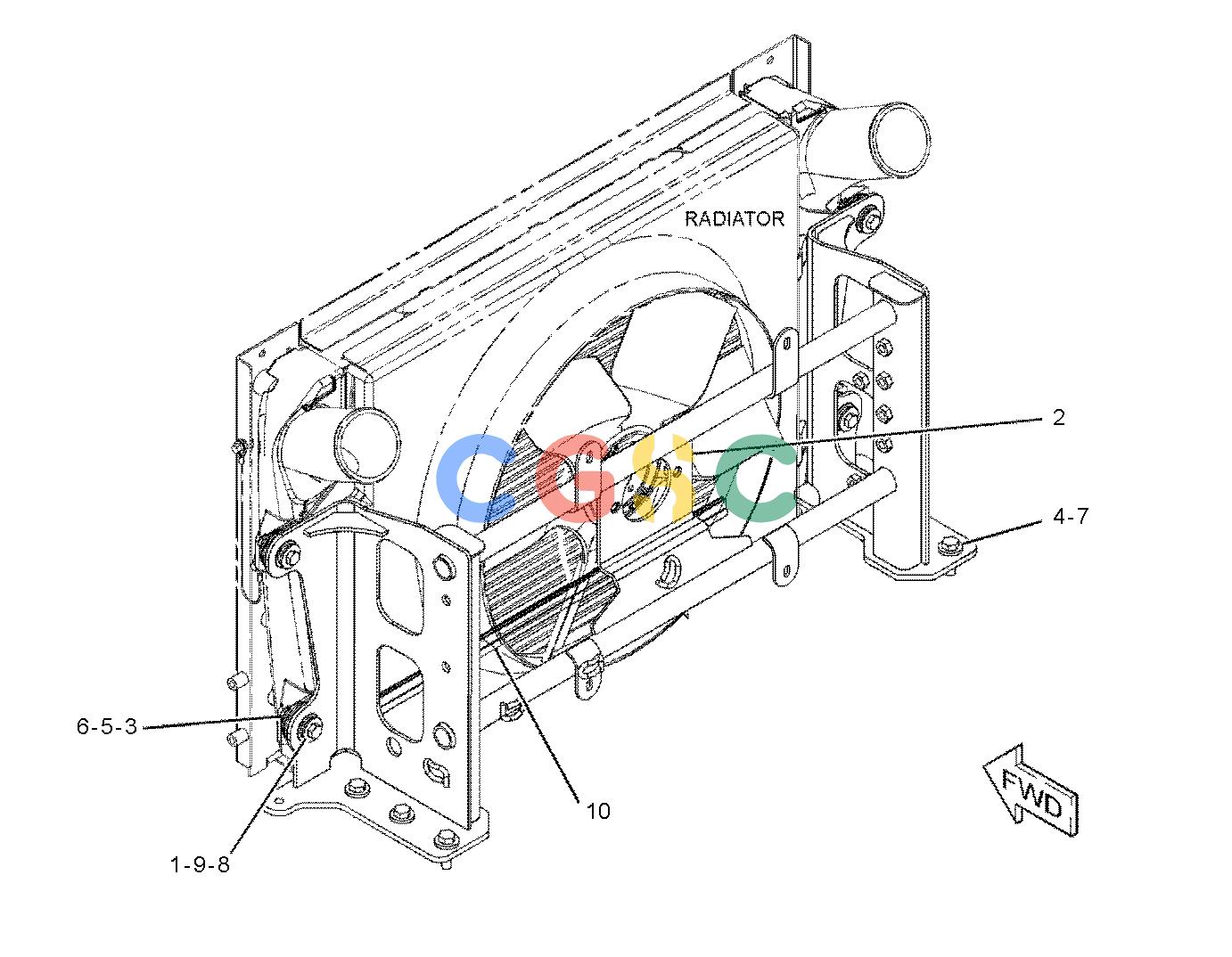

卡特零件查询（725C） 419-7635: SUPPORT GP-AFTERCOOLER
广数供应链运营团队, 14 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 248-6816 | [4] | MOUNT | |
| 2. | 447-1008 | [1] | SUPPORT AS | |
| | 7T-1099 | [4] | LINK | |
| | 8T-3490M | [13] | NUT-WELD(M10X1.5-THD) | |
| 3. | 341-3119 | [4] | WASHER-HARD(13X48X3.5-MM THK) | |
| 4. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 5. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 6. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 7. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 8. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 9. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 10. | 201-4066H | | SEAL(8-DM) | |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
